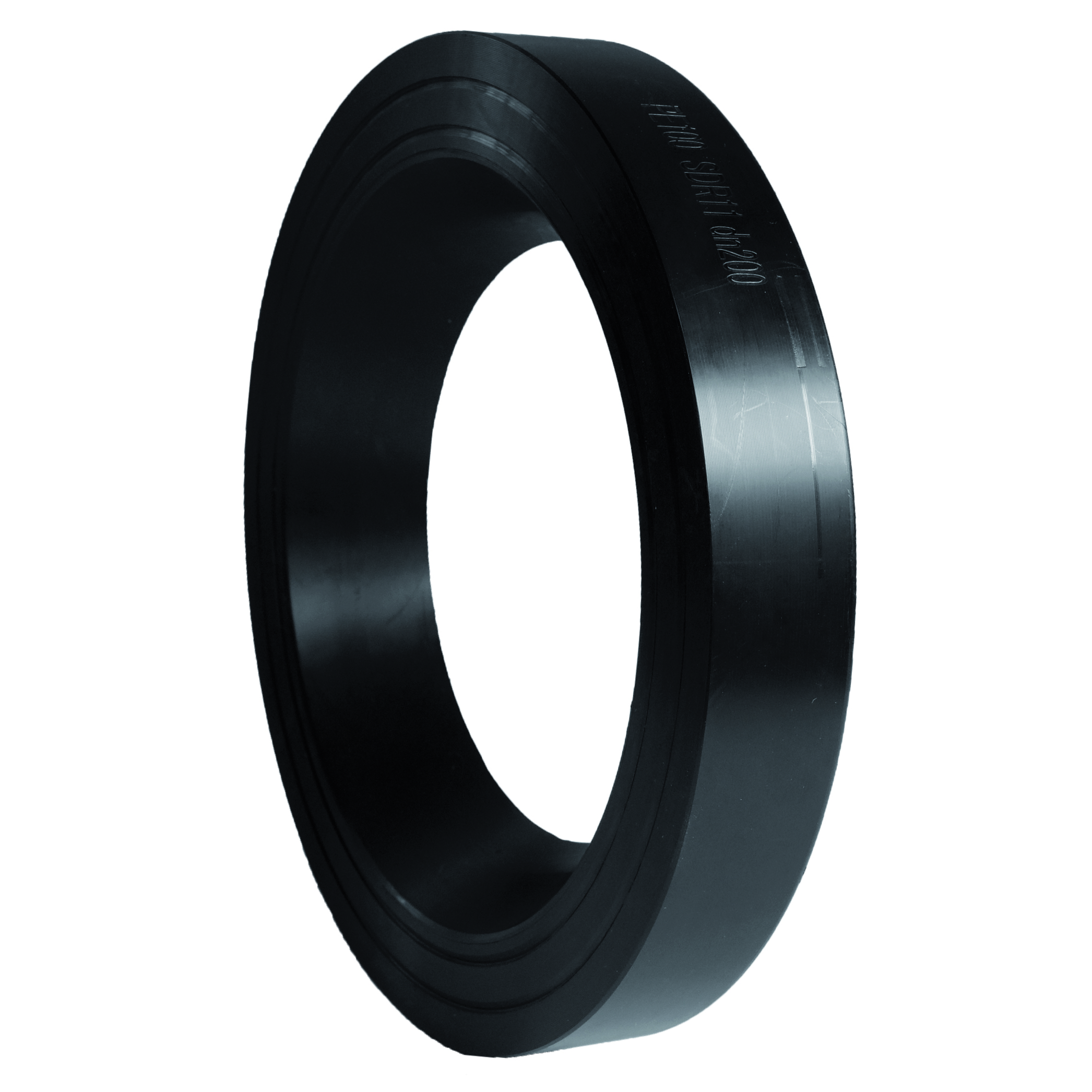

Butterfly Valve Spacer
Butterfly valve spacer PE100 SDR11
PE100 fabricated valve spacer to provide clearance between the valve disc and pipe to prevent the disc fouling on the pipe bore when opening. Fits each side of a lugged or wafer style Butterfly valve

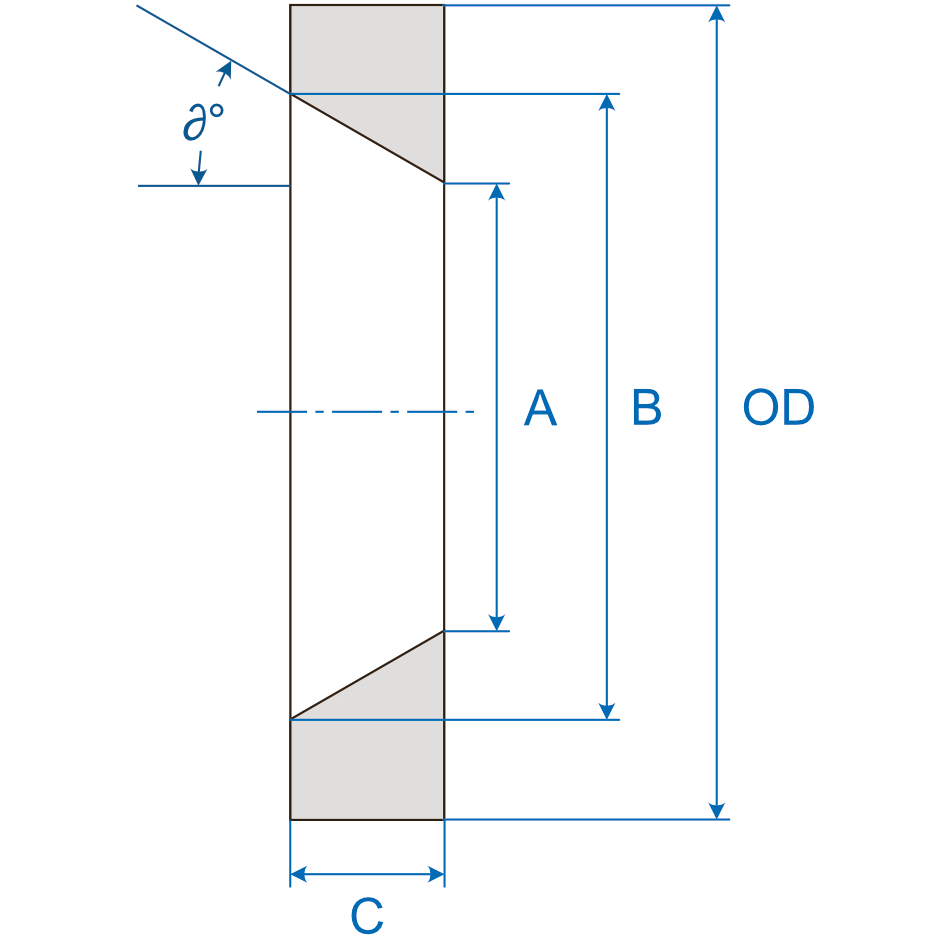

| Product code | PE pipe DN/OD | Butterfly Valve DN | OD | A | B | C | ∂ Angle | Availability in Hong Kong |
| P0316.170.110100 | 110 | 100 | 160 | 89 | 99 | 14 | 20 | 6-8 Weeks |
| P0316.170.125125 | 125 | 125 | 192 | 102 | 125 | 25 | 25 | 6-8 Weeks |
| P0316.170.160150 | 160 | 150 | 213 | 130 | 153 | 25 | 25 | 6-8 Weeks |
| P0316.170.200200 | 200 | 200 | 270 | 163 | 206 | 40 | 28 | 6-8 Weeks |
| P0316.170.225200 | 225 | 200 | 270 | 183 | 206 | 25 | 25 | 6-8 Weeks |
| P0316.170.250250 | 250 | 250 | 334 | 203 | 262 | 50 | 30 | 6-8 Weeks |
| P0316.170.280250 | 280 | 250 | 334 | 228 | 262 | 30 | 30 | 6-8 Weeks |
| P0316.170.315300 | 315 | 300 | 380 | 256 | 325 | 60 | 30 | 6-8 Weeks |
| P0316.170.355350 | 355 | 350 | 444 | 289 | 358 | 60 | 30 | 6-8 Weeks |
| P0316.170.400400 | 400 | 400 | 495 | 325 | 418 | 100 | 25 | 6-8 Weeks |
| P0316.170.450450 | 450 | 450 | 545 | 366 | 459 | 100 | 25 | 6-8 Weeks |
| P0316.170.500500 | 500 | 500 | 602 | 407 | 500 | 100 | 25 | 6-8 Weeks |
| P0316.170.630600 | 630 | 600 | 708 | 545 | 608 | 55 | 30 | 6-8 Weeks |
Butterfly valve spacer PE100 SDR17
PE100 fabricated valve spacer to provide clearance between the valve disc and pipe to prevent the disc fouling on the pipe bore when opening. Fits each side of a lugged or wafer style Butterfly valve
| Product code | PE pipe DN/OD | Butterfly Valve DN | OD | A | B | C | ∂ Angle | Availability in Hong Kong |
|---|---|---|---|---|---|---|---|---|
| P0314.170.110100 | 110 | 100 | 160 | 96 | 99 | 4 | 20 | 6-8 Weeks |
| P0314.170.125125 | 125 | 125 | 192 | 110 | 125 | 17 | 25 | 6-8 Weeks |
| P0314.170.160150 | 160 | 150 | 213 | 140 | 153 | 14 | 25 | 6-8 Weeks |
| P0314.170.200200 | 200 | 200 | 270 | 175 | 206 | 29 | 28 | 6-8 Weeks |
| P0314.170.225200 | 225 | 200 | 270 | 197 | 206 | 10 | 25 | 6-8 Weeks |
| P0314.170.250250 | 250 | 250 | 334 | 219 | 262 | 37 | 30 | 6-8 Weeks |
| P0314.170.280250 | 280 | 250 | 334 | 245 | 262 | 15 | 30 | 6-8 Weeks |
| P0314.170.315300 | 315 | 300 | 380 | 276 | 325 | 43 | 30 | 6-8 Weeks |
| P0314.170.355350 | 355 | 350 | 444 | 311 | 358 | 41 | 30 | 6-8 Weeks |
| P0314.170.400400 | 400 | 400 | 495 | 351 | 418 | 73 | 25 | 6-8 Weeks |
| P0314.170.450450 | 450 | 450 | 545 | 394 | 459 | 70 | 25 | 6-8 Weeks |
| P0314.170.500500 | 500 | 500 | 602 | 438 | 500 | 67 | 25 | 6-8 Weeks |
| P0314.170.630600 | 630 | 600 | 708 | 552 | 608 | 49 | 30 | 6-8 Weeks |
