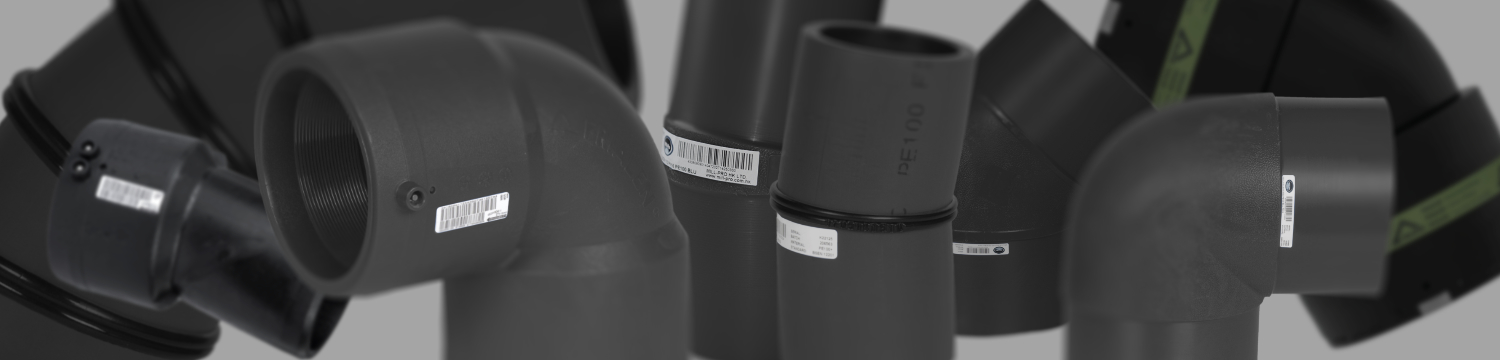

Mill-Pro offers a wide range of standard black elbows and segmented CCTV bends in any angle from 1º to 90º

  • Moulded electrofusion elbows: in standard angles, used for smaller diameter pipelines (≤ 315 OD) with a radius of r=0.5xOD

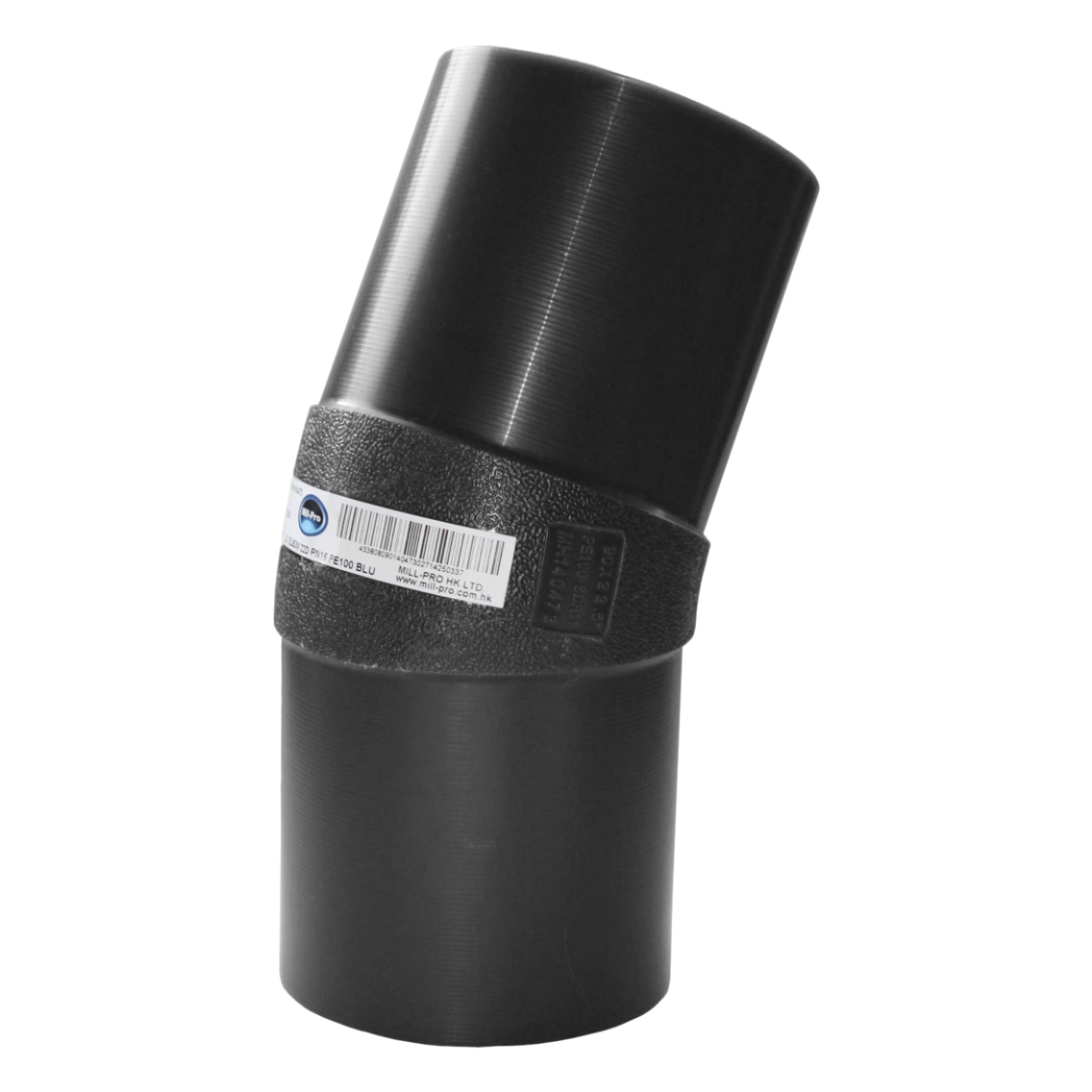

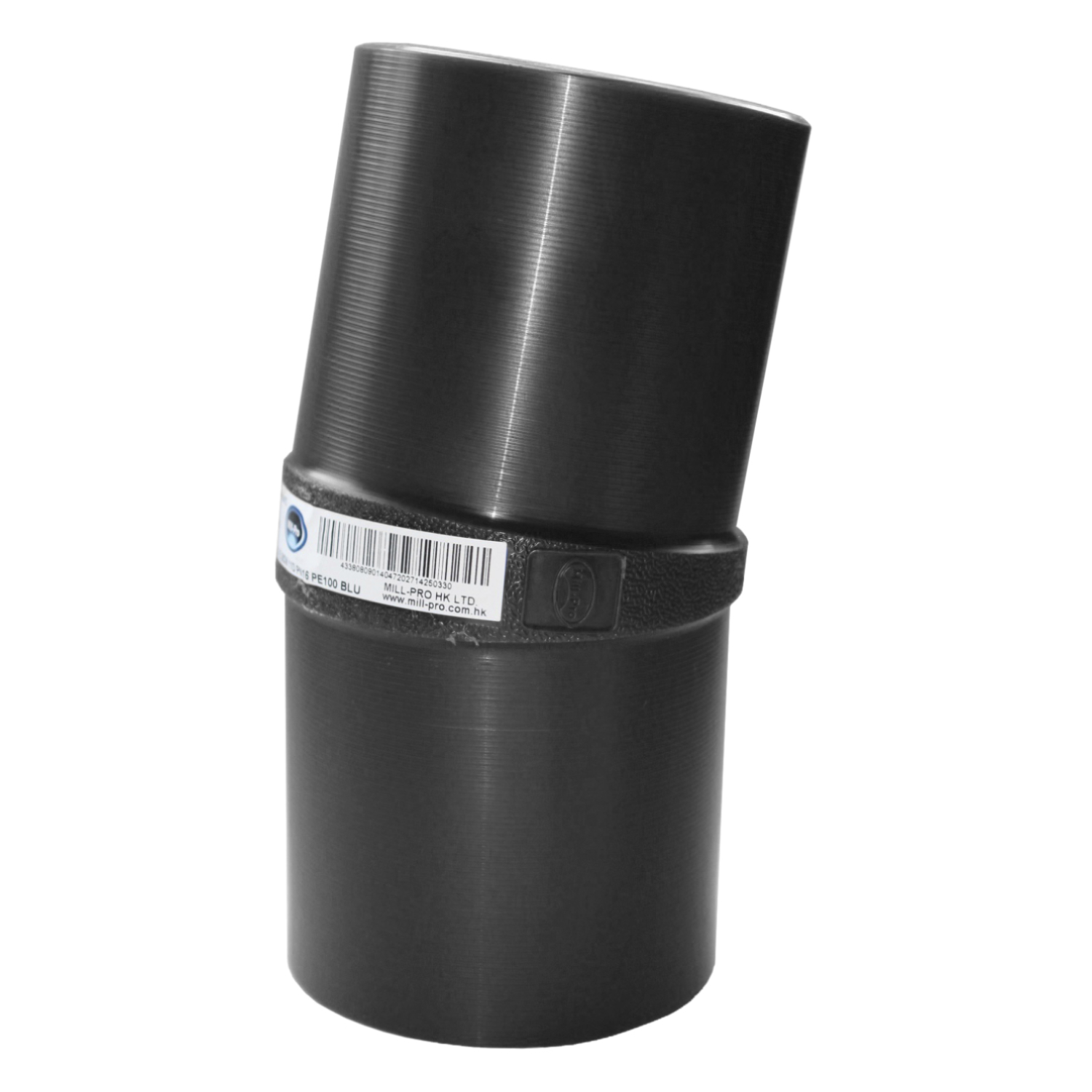

  • Moulded spigot elbows: these come in standard angles ≤ 630 OD, with a radius of r=0.5xOD
  • Segmented bends: factory-fabricated from CCTV or black Pipe, these are available in any size and angle with the minimum radius determined by the number of mitres, generally r=2.5xOD
  • Fabricated Elbows: Where segmented bends cannot be used due to space constraints. A compact elbow machined from hollow bar with welded spigots, r=0.5xOD. Elbows are custom made in any size ≥ dn355 in any angle from 1º to 90º. Click here for more information.

Segmented Bends

These are fabricated to BS EN 12201-3 Annex B.3, made by cutting pipes on an angle (cut angle), rotating one of the cut ends 180º and welding the angled segments back together.  See Fig. 1 below.  Because the cut angle is >90º to the pipe axis, the cross-sectional area of the pipe bore increases as the angle increases.  The greater the angle, the greater the internal cross-sectional area at the weld.  So the internal pressure is now acting on a greater internal cross-sectional area at the welded joint, however, because the pipes wall thickness (SDR) remains unchanged, the thickness of the pipe is now insufficient to maintain the original pressure rating.

Therefore the segmented bend may now be subject to a pressure de-rating factor.  The amount of de-rating depends on the cut angle, the greater the angle, the greater the internal cross-sectional area and the greater the de-ration required. See Fig. 2 below.

BS EN 12201-3 Annex B, B.3 Segmented bends, Table B.3, states: Bends with a cut angle ≤ 7.5º do not need de-ration.  Cut angles > 7.5º but ≤ 15º must be de-rated to 0.8x the pipes original rating (20% de-ration). Cut angles > 15º are not allowed under the standard. To maintain cut angles ≤7.5º additional mitres are required. See table below

As an example: If we cut a pipe at a 15º angle to the pipe axis, rotate one half of the cut 180º around the pipe axis and then weld the cut segments back together, we create a 30º mitre joint.  If a  90º bend was being fabricated, you would repeat this three times with space in between each 30º mitre to create a '3 mitre 90º bend' (See image below, 3 x 30º mitres = 90º bend).  This bend has pipe cut angles of 15º. Referring to Annex B, a cut angle of >7.5º but ≤ 15º must have a de-rating factor of 0.8x applied to the original pipes PN rating.

Therefore a 90º fabricated bend fabricated with three 30º mitres cut from PN10 pipe is: PN10 x 0.8 gives a MOP (Maximum Operating Pressure) of PN8.  Bends with 30º mitres have cut angles that are 15º, and according to Annex B3 must be de-rated.  The bends new pressure rating of PN8 no longer matches the original pipes rating of PN10. Installing a PN8 bend in a PN10 pressure sewer network, de-rates the entire water network to PN8, so this is not a solution.

There are two solutions.  One is to manufacture fabricated bends from a thicker pipe (say PN12.5 SDR 13.6 pipe) with 3 x 30º mitres, however, this creates an undesirable internal step in the pipeline where the PN12.5 bend joins the PN10 pipe.  This can be overcome with a machined internal taper at each spigot end of the bend, however, still creates a reduced bore through the bend.

The prefered way according to the BSEN standard is to manufacture the fitting from the same PN10 pipe and  increase the number of mitre joints in the bend from three to six, so 6 x 15º mitres, the maximum cut angle is now ≤7.5º and according to the standard, a de-ration factor of 1.0x is applied (i.e: no de-ration of bends with 7.5º cut angles is required).

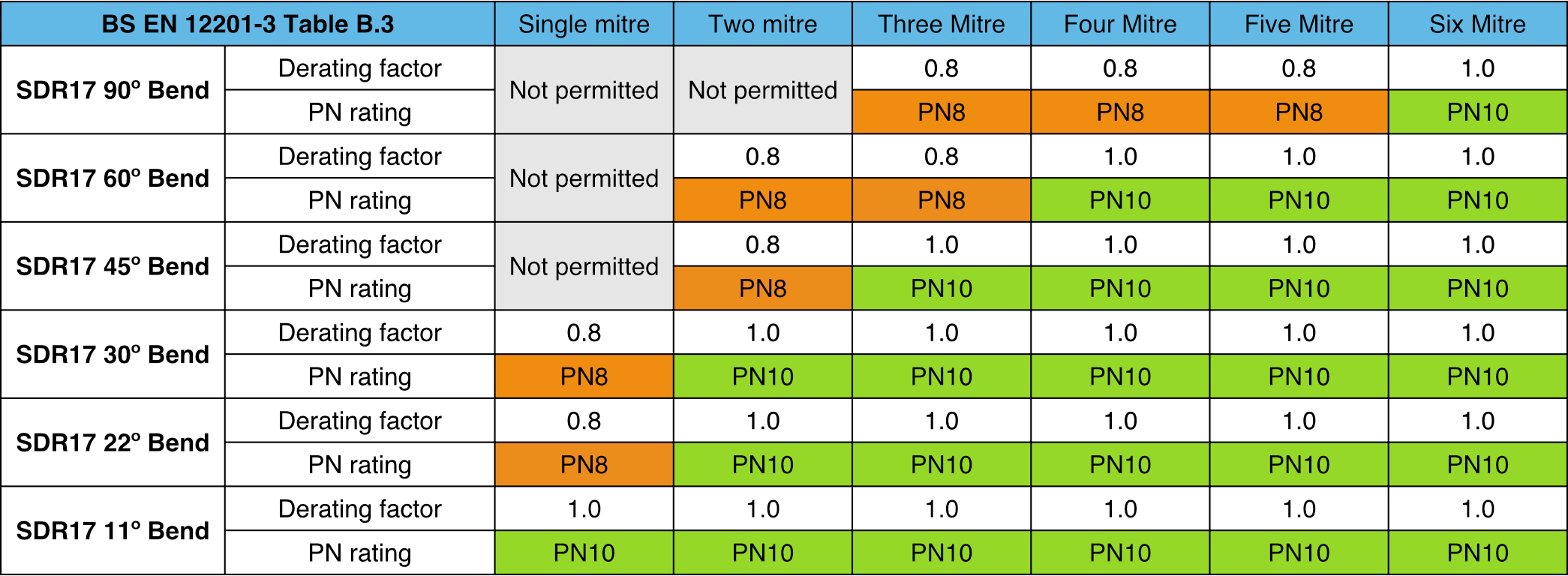

Refer to Fig.3 to see what fabricated bend designs maintain full pressure ratings according to BS EN 12201-3, Table B.3.

Fig.1

Fig.2

Fig. 3

WW Mitre Table Graphic (1)
