M10 Co-extruded Pipes
M10E / EXTREME - PE100 RC Pipe
PE100+ pipe with a 10% external colour layer identifying the pipes service use: Signal Blue (RAL 5005) for potable water, and Purple (RAL 4004) for non-potable/Flushing water. The outer colour layer also provides damage depth indication. Pipes are extruded using identical PE100 RC base compounds to produce a single homogeneous pipe wall section in accordance with BS EN 12201-2 with 8000 hours Slow Crack Growth (SCG) compound performance providing an exceptional in-ground service life
M10 - PE100+ Pipe
The same colour indicated pipe as above but extruded using identical PE100+ compounds for both the outer colour layer and the black body of the pipe. PE100+ provides 1000 hours of Slow Crack Growth resistance, pipes must be buried with suitably graded bedding surround to protect the pipe from long term point loading
NOTE: All M10 pipes supplied by Mill-Pro in Hong Kong are PE100 RC, unless ordered otherwise.
Hong Kong Water Supplies Department Pipes
The following tables are for Drinking and Flushing water pipe. These pipes fully comply with the Hong Kong Water Supplies Department (WSD) Particular Specification.
Download the data sheet on purple pipe Non Potable water pipe

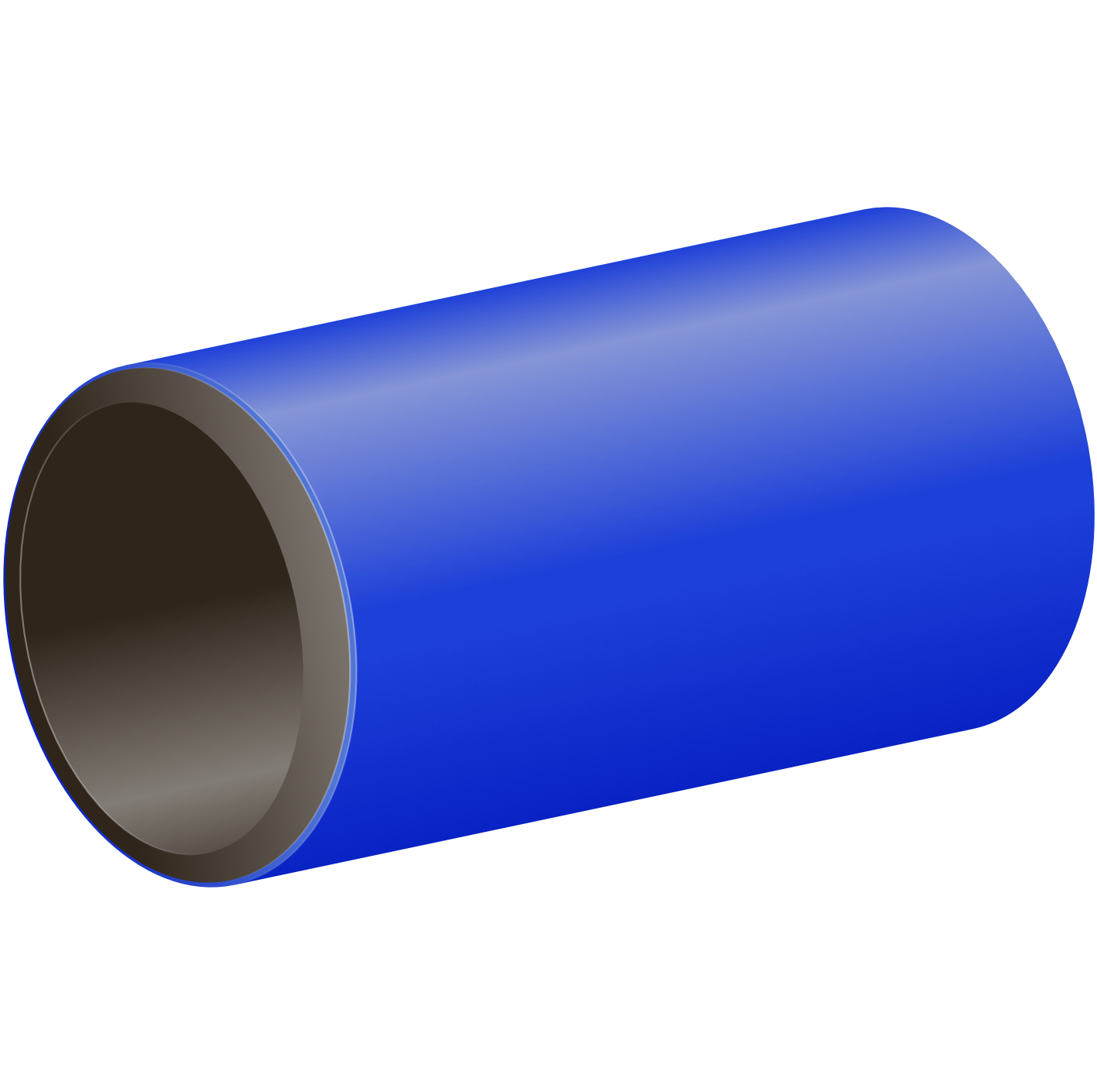

M10E Blue PE100 RC Pipe / PN16 / SDR11
Blue Co-Extruded Drinking Water Pipe (RAL 5005)
|
For sizes below 90mm OD click here for M100 Extreme PE100 RC Blue pipe |
|||||||||
|
These tables only show WSD standard pipe sizes and ratings, for other pipe sizes and pressure ratings use the tables below |
|||||||||
|
For sizes, ≥ DN350 / 450 OD orders may be subject to Minimum Order Quantities of approximately 400m, Contact us for more information |
|||||||||
|
All pipes listed with product codes are supplied in straight 5.80m lengths. Contact us for custom lengths up to 11.8m long |
|||||||||
|
Product code |
WSD Equivalent Size |
Nominal Outside Diameter (dn) |
Mean Outside Diameter (dem) |
Max Out-of-roundness (Ovality) |
SDR 11 |
WSD Fresh Water Pipe |
|||
|
Wall thickness |
ID |
kg/m |
|||||||
|
DN |
DN / OD |
Min |
Max |
Mean |
Mean |
Mean |
Availability in Hong Kong |
||
|
P1K26.102.090 |
DN 80 |
90 |
90 |
90.6 |
1.8 |
8.7 |
72.9 |
2.1 |
Ex-Stock |
|
P1K26.102.125 |
DN 100 |
125 |
125 |
125.8 |
2.5 |
12.1 |
101.3 |
4.1 |
Ex-Stock |
|
P1K26.102.180 |
DN 150 |
180 |
180 |
181.1 |
3.6 |
17.3 |
146.0 |
8.5 |
Ex-Stock |
|
P1K26.102.250 |
DN 200 |
250 |
250 |
251.5 |
5.0 |
23.9 |
203.0 |
16.3 |
Ex-Stock |
|
P1K26.102.315 |
DN 250 |
315 |
315 |
316.9 |
11.1 |
30.1 |
255.8 |
25.9 |
Ex-Stock |
|
P1K26.102.355 |
DN 300 |
355 |
355 |
357.2 |
12.5 |
33.9 |
288.3 |
32.9 |
Ex-Stock |
|
P1K26.102.450 |
DN 350 |
450 |
450 |
452.7 |
15.6 |
43.0 |
365.4 |
52.9 |
8-12 Weeks |
|
P1K26.102.500 |
DN 400 |
500 |
500 |
503.0 |
17.5 |
47.8 |
406.0 |
65.3 |
8-12 Weeks |
|
P1K26.102.560 |
DN 450 |
560 |
560 |
563.4 |
19.6 |
53.4 |
454.9 |
81.8 |
8-12 Weeks |
|
P1K26.102.630 |
DN 500 |
630 |
630 |
633.8 |
22.1 |
60.2 |
511.6 |
103.7 |
8-12 Weeks |
|
P1K26.102.710 |
DN 600 |
710 |
710 |
716.4 |
24.9 |
67.8 |
577.6 |
131.9 |
8-12 Weeks |
|
P1K26.102.800 |
DN 700 |
800 |
800 |
807.2 |
28.0 |
76.3 |
651.0 |
167.3 |
8-12 Weeks |

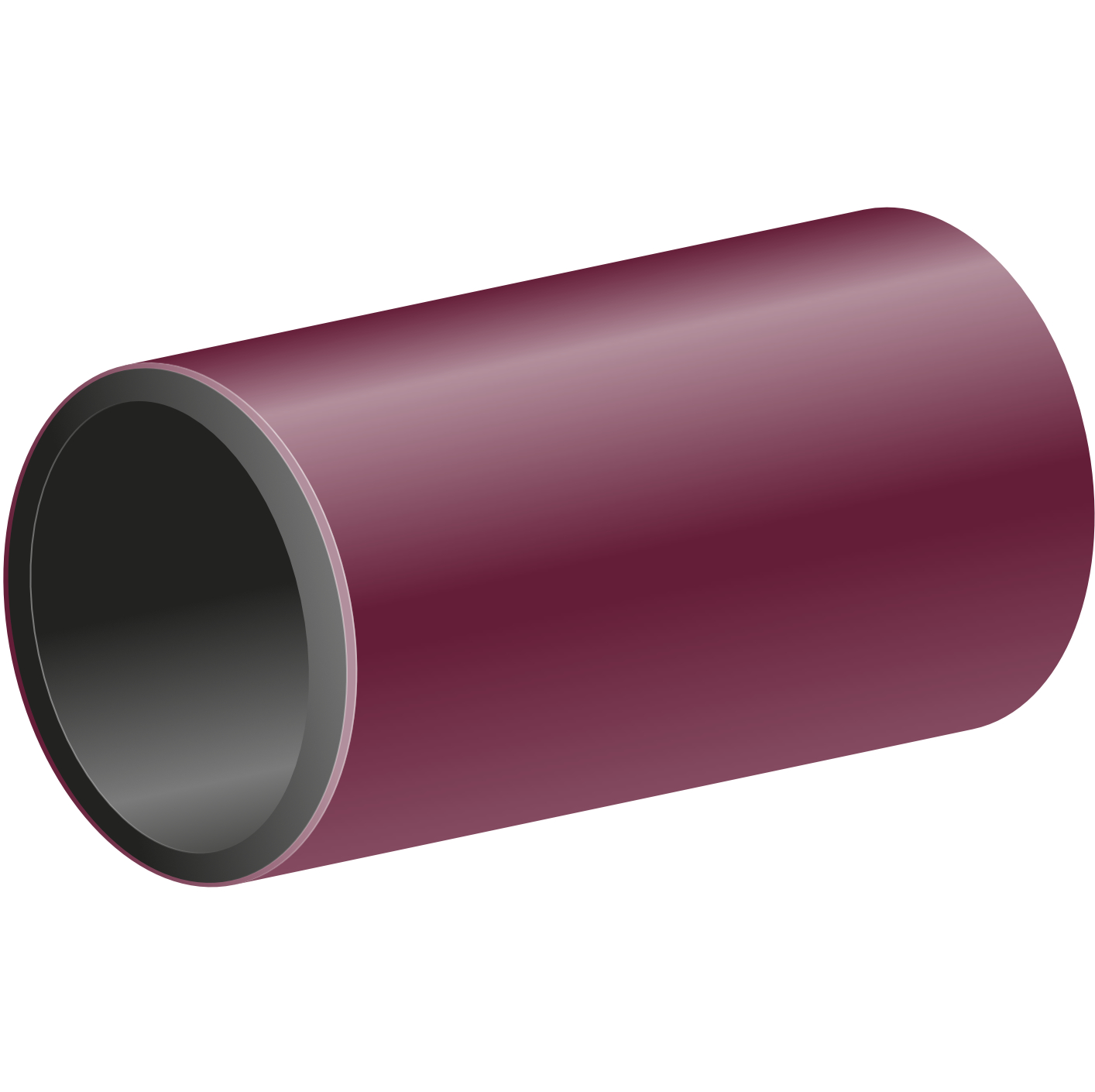

M10E Purple PE100 RC Pipe / PN16 / SDR11
Purple Co-Extruded Non-Potable / Flushing Water Pipe (RAL 4004)
|
For sizes below 90mm OD click here for M100 Extreme PE100 RC Purple pipe |
|||||||||
|
These tables only show WSD standard pipe sizes and ratings, for other pipe sizes or pressure ratings use the table below |
|||||||||
|
For sizes ≥ DN300 / 355 OD orders may be subject to Minimum Order Quantities of approximately 400m, Contact us for more information |
|||||||||
|
All pipes listed with product codes are supplied in straight 5.80m lengths. Contact us for custom lengths up to 11.8m long |
|||||||||
|
Product code |
WSD Equivalent Size |
Nominal Outside Diameter (dn) |
Mean Outside Diameter (dem) |
Max Out-of-roundness (Ovality) |
SDR 11 |
WSD Flushing Water Pipe |
|||
|
Wall thickness |
ID |
kg/m |
|||||||
|
DN |
DN / OD |
Min |
Max |
Mean |
Mean |
Mean |
Availability in Hong Kong |
||
|
P1K66.102.090 |
DN 80 |
90 |
90 |
90.6 |
1.8 |
8.7 |
72.9 |
2.1 |
8-12 Weeks |
|
P1K66.102.125 |
DN 100 |
125 |
125 |
125.8 |
2.5 |
12.1 |
101.3 |
4.1 |
8-12 Weeks |
|
P1K66.102.180 |
DN 150 |
180 |
180 |
181.1 |
3.6 |
17.3 |
146.0 |
8.5 |
Ex-Stock |
|
P1K66.102.250 |
DN 200 |
250 |
250 |
251.5 |
5.0 |
23.9 |
203.0 |
16.3 |
Ex-Stock |
|
P1K66.102.315 |
DN 250 |
315 |
315 |
316.9 |
11.1 |
30.1 |
255.8 |
25.9 |
Ex-Stock |
|
P1K66.102.355 |
DN 300 |
355 |
355 |
357.2 |
12.5 |
33.9 |
288.3 |
32.9 |
8-12 Weeks |
|
P1K66.102.450 |
DN 350 |
450 |
450 |
452.7 |
15.6 |
43.0 |
365.4 |
52.9 |
8-12 Weeks |
|
P1K66.102.500 |
DN 400 |
500 |
500 |
503.0 |
17.5 |
47.8 |
406.0 |
65.3 |
8-12 Weeks |
|
P1K66.102.560 |
DN 450 |
560 |
560 |
563.4 |
19.6 |
53.4 |
454.9 |
81.8 |
8-12 Weeks |
|
P1K66.102.630 |
DN 500 |
630 |
630 |
633.8 |
22.1 |
60.2 |
511.6 |
103.7 |
8-12 Weeks |
|
P1K66.102.710 |
DN 600 |
710 |
710 |
716.4 |
24.9 |
67.8 |
577.6 |
131.9 |
8-12 Weeks |
|
P1K66.102.800 |
DN 700 |
800 |
800 |
807.2 |
28.0 |
76.3 |
651.0 |
167.3 |
8-12 Weeks |
M10 Blue / Purple PE100 RC Pipe / Other PN / SDR ratings
PE100 RC Pipes available in non-standard WSD sizes and pressure ratings (Blue or Purple)
Below is the full range of M10 Blue or Purple pipe sizes and pressure ratings available from PN8 to PN20. These pipes are manufactured from using PE100 RC compounds as standard unless ordered otherwise.
Pipes manufactured from PE100 RC fully comply with the WSD PS requirements, only where the engineer allows the use of non-standard sizes or SDR / PN ratings for specific applications.
In addition, non-standard pipe sizes of any OD and SDR within the ranges given below, can be manufactured for relining & rehabilitation work, contact us for more information on the supply of non-standard size relining pipes in blue or purple.
|
dem: Mean Outside Diameter (mm) |
||||||||||||||||||
|
ID: Mean Internal Diameter (mm) |
||||||||||||||||||
|
The tables above provide standard dimensions according to EN/ISO standards, however Mill-Pro also specialises in providing custom-manufactured sizes and pressure ratings for specific applications including rehabilitation and slip lining, subject to sufficient order quantities. |
||||||||||||||||||
|
Pressure Rating PE100 |
PN 8 |
PN 10 |
PN 12.5 |
PN 20 |
PN 25 |
|||||||||||||
|
Nominal Diameter |
Mean Outside Diameter (dem) |
Max out-of-roundness (Ovalty) |
SDR 21 |
SDR 17 |
SDR 13.6 |
SDR 9 |
SDR 7.4 |
|||||||||||
|
Wall thickness |
ID |
kg/m |
Wall thickness |
ID |
kg/m |
Wall thickness |
ID |
kg/m |
Wall thickness |
ID |
kg/m |
Wall thickness |
di |
kg/m |
||||
|
DN / OD |
min |
max |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
Mean |
|
|
90 |
90 |
90.6 |
1.8 |
- |
- | - | - | - | - | - | - | - |
10.7 |
68.9 |
2.6 |
13.0 | 64.3 | 3.0 |
|
110 |
110 |
110.7 |
2.2 |
- | - | - | - | - | - |
8.6 |
93.2 |
2.6 |
13 |
84.4 |
3.8 |
16.0 | 78.5 | 4.5 |
|
125 |
125 |
125.8 |
2.5 |
- | - | - | - | - | - |
9.8 |
105.9 |
3.4 |
14.8 |
95.9 |
4.9 |
18.1 | 89.3 | 5.8 |
|
140 |
140 |
140.9 |
2.8 |
- | - | - | 8.8 |
122.9 |
3.5 |
10.9 |
118.7 |
4.3 |
16.6 |
107.4 |
6.2 |
20.3 | 100.0 | 7.3 |
|
160 |
160 |
161.0 |
3.2 |
8.2 |
144.2 |
3.7 |
10.1 |
140.4 |
4.6 |
12.5 |
135.6 |
5.6 |
18.9 |
122.8 |
8.0 |
23.1 | 114.4 | 9.5 |
|
180 |
180 |
181.1 |
3.6 |
9.1 |
162.4 |
4.7 |
11.3 |
158.0 |
5.8 |
14.1 |
152.5 |
7.1 |
21.2 |
138.2 |
10.2 |
25.9 | 128.8 | 12.1 |
|
200 |
200 |
201.2 |
4.0 |
10.2 |
180.3 |
5.8 |
12.6 |
175.5 |
7.1 |
15.5 |
169.6 |
8.6 |
23.6 |
153.4 |
12.6 |
28.8 | 143.1 | 14.9 |
|
225 |
225 |
226.4 |
4.5 |
11.4 |
202.9 |
7.4 |
14.2 |
197.4 |
9.0 |
17.5 |
190.7 |
11.0 |
26.5 |
172.8 |
15.9 |
32.4 | 160.9 | 18.9 |
|
250 |
250 |
251.5 |
5.0 |
12.6 |
225.7 |
9.0 |
15.6 |
219.6 |
11.1 |
19.4 |
212.0 |
13.5 |
29.4 |
192.1 |
19.6 |
36.0 | 178.8 | 23.3 |
|
280 |
280 |
281.7 |
9.8 |
14.2 |
252.6 |
11.4 |
17.5 |
245.9 |
13.9 |
21.7 |
237.5 |
16.9 |
33.0 |
215.0 |
24.6 |
40.3 | 200.3 | 29.2 |
|
315 |
315 |
316.9 |
11.1 |
15.8 |
284.4 |
14.3 |
19.7 |
276.6 |
17.6 |
24.5 |
267.1 |
21.5 |
37.1 |
241.9 |
31.1 |
45.2 | 225.6 | 36.9 |
|
355 |
355 |
357.2 |
12.5 |
17.8 |
320.5 |
18.1 |
22.3 |
311.6 |
22.4 |
27.5 |
301.1 |
27.2 |
41.7 |
272.8 |
39.5 |
51.0 | 254.1 | 46.9 |
|
400 |
400 |
402.4 |
14.0 |
20.2 |
360.9 |
23.1 |
25.0 |
351.3 |
28.3 |
31.0 |
339.3 |
34.5 |
47.0 |
307.2 |
50.2 |
57.4 | 286.4 | 59.5 |
|
450 |
450 |
452.7 |
15.6 |
22.7 |
406.1 |
29.3 |
28.1 |
395.2 |
35.8 |
34.9 |
381.7 |
43.7 |
52.8 |
345.8 |
63.4 |
64.7 | 322.1 | 75.4 |
|
500 |
500 |
503.0 |
17.5 |
25.2 |
451.2 |
36.1 |
31.2 |
439.2 |
44.2 |
38.7 |
424.1 |
54.0 |
58.7 |
384.2 |
78.3 |
- |
- |
- |
|
560 |
560 |
563.4 |
19.6 |
28.1 |
505.5 |
45.2 |
35.0 |
491.8 |
55.5 |
43.4 |
475.0 |
67.7 |
65.7 |
430.3 |
98.2 |
- |
- |
- |
|
630 |
630 |
633.8 |
22.1 |
31.6 |
568.8 |
57.1 |
39.3 |
553.4 |
70.1 |
48.7 |
534.5 |
85.6 |
73.9 |
484.1 |
124.3 |
- |
- |
- |
|
710 |
710 |
716.4 |
24.9 |
35.7 |
641.9 |
72.8 |
44.3 |
624.6 |
89.3 |
54.9 |
603.4 |
108.9 |
83.4 |
546.5 |
158.2 |
- |
- |
- |
|
800 |
800 |
807.2 |
28.0 |
40.1 |
723.4 |
92.3 |
49.9 |
703.9 |
113.2 |
61.8 |
680.0 |
138.2 |
93.9 |
615.9 |
200.8 |
- |
- |
- |
|
900 |
900 |
908.1 |
31.5 |
45.1 |
813.9 |
116.8 |
56.3 |
791.6 |
143.7 |
69.6 |
764.9 |
175.0 |
- |
- |
- |
- |
- |
- |
|
1000 |
1000 |
1009.0 |
35.0 |
50.2 |
904.2 |
144.3 |
62.4 |
879.8 |
177.1 |
76.2 |
852.1 |
213.2 |
- |
- |
- |
- |
- |
- |
|
1200 |
1200 |
1210.8 |
42.0 |
60.2 |
1085.1 |
207.6 |
74.2 |
1057.1 |
252.8 |
92.7 |
1020.0 |
310.9 |
- |
- |
- |
- |
- |
- |
|
1400 |
1400 |
1412.6 |
49.0 |
70.1 |
1266.2 |
282.1 |
86.6 |
1233.2 |
344.3 |
108.1 |
1190.1 |
423.0 |
- |
- |
- |
- |
- |
- |
|
1600 |
1600 |
1614.4 |
56.0 |
80.1 |
1447.1 |
368.5 |
98.9 |
1409.4 |
449.6 |
123.6 |
1360.1 |
552.5 |
- |
- |
- |
- |
- |
- |
