Black Reducing Tees / EF / SP

Black Reducing Tees / Fabricated

Fabricated Tee's are manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.

NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.

Larger sizes up to dn2000 with offtakes from dn180 to dn1800 are available in SDR 17 / PN10 / rating. Dimensions on request.
Larger sizes up to dn1000 with offtakes from dn180 to dn900 are available in SDR11 / PN16 rating. Dimensions on request.
Larger sizes up to dn800 with offtakes from dn180 to dn700 are available inSDR9 / PN20 rating. Dimensions on request.
These tees fully comply with DSD Appendix 5A, Clause 5.5.7.

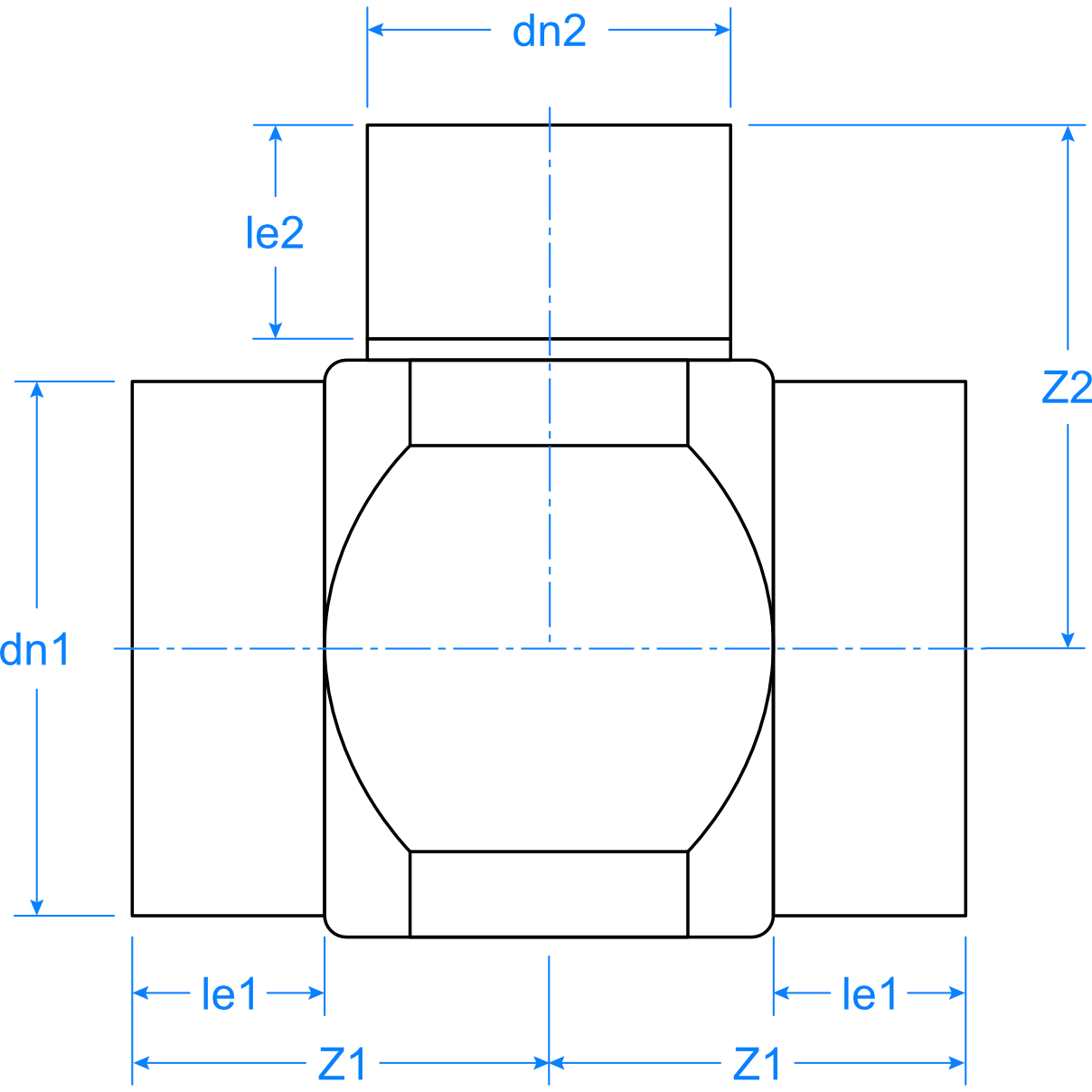

PN10 SDR17 PN16 SDR11 PN20 SDR9 PN25 SDR7.4 dn1 dn2 L le1 le2 Z1 Z2 Availability in Hong Kong
P5314.41.110063 P5316.41.110063 P5317.41.110063 P5318.41.110063 110 63 420 150 180 210 285 6-8 Weeks
P5314.41.110090 P5316.41.110090 P5317.41.110090 P5318.41.110090 110 90 445 150 180 223 285 6-8 Weeks
P5314.41.160063 P5316.41.160063 P5317.41.160063 P5318.41.160063 160 63 420 150 180 210 285 6-8 Weeks
P5314.41.160090 P5316.41.160090 P5317.41.160090 P5318.41.160090 160 90 445 150 180 223 285 6-8 Weeks
P5314.41.160110 P5316.41.160110 P5317.41.160110 P5318.41.160110 160 110 465 150 180 233 285 6-8 Weeks
P5314.41.160125 P5316.41.160125 P5317.41.160125 P5318.41.160125 160 125 480 150 180 240 285 6-8 Weeks
P5314.41.180063 P5316.41.180063 P5317.41.180063 P5318.41.180063 180 63 420 150 180 210 295 6-8 Weeks
P5314.41.180090 P5316.41.180090 P5317.41.180090 P5318.41.180090 180 90 450 150 180 225 295 6-8 Weeks
P5314.41.180110 P5316.41.180110 P5317.41.180110 P5318.41.180110 180 110 465 150 180 233 295 6-8 Weeks
P5314.41.180125 P5316.41.180125 P5317.41.180125 P5318.41.180125 180 125 480 150 180 240 295 6-8 Weeks
P5314.41.180160 P5316.41.180160 P5317.41.180160 P5318.41.180160 180 160 530 150 180 265 300 6-8 Weeks
P5314.41.200063 P5316.41.200063 P5317.41.200063 P5318.41.200063 200 63 420 150 180 210 305 6-8 Weeks
P5314.41.200090 P5316.41.200090 P5317.41.200090 P5318.41.200090 200 90 445 150 180 223 305 6-8 Weeks
P5314.41.200110 P5316.41.200110 P5317.41.200110 P5318.41.200110 200 110 470 150 180 235 305 6-8 Weeks
P5314.41.200125 P5316.41.200125 P5317.41.200125 P5318.41.200125 200 125 480 150 180 240 305 6-8 Weeks
P5314.41.200160 P5316.41.200160 P5317.41.200160 P5318.41.200160 200 160 530 150 180 265 310 6-8 Weeks
P5314.41.200180 P5316.41.200180 P5317.41.200180 P5318.41.200180 200 180 550 150 220 275 350 6-8 Weeks
P5314.41.225063 P5316.41.225063 P5317.41.225063 P5318.41.225063 225 63 420 150 180 210 318 6-8 Weeks
P5314.41.225090 P5316.41.225090 P5317.41.225090 P5318.41.225090 225 90 445 150 180 223 318 6-8 Weeks
P5314.41.225110 P5316.41.225110 P5317.41.225110 P5318.41.225110 225 110 470 150 180 235 318 6-8 Weeks
P5314.41.225125 P5316.41.225125 P5317.41.225125 P5318.41.225125 225 125 480 150 180 240 318 6-8 Weeks
P5314.41.225160 P5316.41.225160 P5317.41.225160 P5318.41.225160 225 160 530 150 180 265 323 6-8 Weeks
P5314.41.225180 P5316.41.225180 P5317.41.225180 P5318.41.225180 225 180 550 150 220 275 363 6-8 Weeks
P5314.41.225200 P5316.41.225200 P5317.41.225200 P5318.41.225200 225 200 570 150 220 285 363 6-8 Weeks
P5314.41.250063 P5316.41.250063 P5317.41.250063 P5318.41.250063 250 63 620 250 180 310 330 6-8 Weeks
P5314.41.250090 P5316.41.250090 P5317.41.250090 P5318.41.250090 250 90 645 250 180 323 330 6-8 Weeks
P5314.41.250110 P5316.41.250110 P5317.41.250110 P5318.41.250110 250 110 670 250 180 335 330 6-8 Weeks
P5314.41.250125 P5316.41.250125 P5317.41.250125 P5318.41.250125 250 125 680 250 180 340 330 6-8 Weeks
P5314.41.250160 P5316.41.250160 P5317.41.250160 P5318.41.250160 250 160 730 250 180 365 335 6-8 Weeks
P5314.41.250180 P5316.41.250180 P5317.41.250180 P5318.41.250180 250 180 750 250 220 375 375 6-8 Weeks
P5314.41.250200 P5316.41.250200 P5317.41.250200 P5318.41.250200 250 200 770 250 220 385 375 6-8 Weeks
P5314.41.250225 P5316.41.250225 P5317.41.250225 P5318.41.250225 250 225 790 250 220 395 375 6-8 Weeks
P5314.41.280063 P5316.41.280063 P5317.41.280063 P5318.41.280063 280 63 630 250 180 315 350 6-8 Weeks
P5314.41.280090 P5316.41.280090 P5317.41.280090 P5318.41.280090 280 90 660 250 180 330 350 6-8 Weeks
P5314.41.280110 P5316.41.280110 P5317.41.280110 P5318.41.280110 280 110 680 250 180 340 350 6-8 Weeks
P5314.41.280125 P5316.41.280125 P5317.41.280125 P5318.41.280125 280 125 690 250 180 345 350 6-8 Weeks
P5314.41.280160 P5316.41.280160 P5317.41.280160 P5318.41.280160 280 160 740 250 180 370 355 6-8 Weeks
P5314.41.280180 P5316.41.280180 P5317.41.280180 P5318.41.280180 280 180 760 250 220 380 395 6-8 Weeks
P5314.41.280200 P5316.41.280200 P5317.41.280200 P5318.41.280200 280 200 780 250 220 390 395 6-8 Weeks
P5314.41.280225 P5316.41.280225 P5317.41.280225 P5318.41.280225 280 225 790 250 220 395 395 6-8 Weeks
P5314.41.280250 P5316.41.280250 P5317.41.280250 P5318.41.280250 280 250 830 250 220 415 395 6-8 Weeks
P5314.41.315063 P5316.41.315063 P5317.41.315063 P5318.41.315063 315 63 730 300 180 365 368 6-8 Weeks
P5314.41.315090 P5316.41.315090 P5317.41.315090 P5318.41.315090 315 90 760 300 180 380 368 6-8 Weeks
P5314.41.315110 P5316.41.315110 P5317.41.315110 P5318.41.315110 315 110 780 300 180 390 368 6-8 Weeks
P5314.41.315125 P5316.41.315125 P5317.41.315125 P5318.41.315125 315 125 790 300 180 395 368 6-8 Weeks
P5314.41.315160 P5316.41.315160 P5317.41.315160 P5318.41.315160 315 160 840 300 180 420 373 6-8 Weeks
P5314.41.315180 P5316.41.315180 P5317.41.315180 P5318.41.315180 315 180 860 300 220 430 413 6-8 Weeks
P5314.41.315200 P5316.41.315200 P5317.41.315200 P5318.41.315200 315 200 880 300 220 440 413 6-8 Weeks
P5314.41.315225 P5316.41.315225 P5317.41.315225 P5318.41.315225 315 225 890 300 220 445 413 6-8 Weeks
P5314.41.315250 P5316.41.315250 P5317.41.315250 P5318.41.315250 315 250 930 300 220 465 413 6-8 Weeks
P5314.41.315280 P5316.41.315280 P5317.41.315280 P5318.41.315280 315 280 960 300 220 480 413 6-8 Weeks
P5314.41.355090 P5316.41.355090 P5317.41.355090 P5318.41.355090 355 90 760 300 180 380 388 6-8 Weeks
P5314.41.355110 P5316.41.355110 P5317.41.110780 P5318.41.355110 355 110 780 300 180 390 388 6-8 Weeks
P5314.41.355125 P5316.41.355125 P5317.41.355125 P5318.41.355125 355 125 790 300 180 395 388 6-8 Weeks
P5314.41.355160 P5316.41.355160 P5317.41.355160 P5318.41.355160 355 160 840 300 180 420 393 6-8 Weeks
P5314.41.355180 P5316.41.355180 P5317.41.355180 P5318.41.355180 355 180 860 300 220 430 433 6-8 Weeks
P5314.41.355200 P5316.41.355200 P5317.41.355200 P5318.41.355200 355 200 880 300 220 440 433 6-8 Weeks
P5314.41.355225 P5316.41.355225 P5317.41.355225 P5318.41.355225 355 225 900 300 220 450 433 6-8 Weeks
P5314.41.355250 P5316.41.355250 P5317.41.355250 P5318.41.355250 355 250 930 300 220 465 433 6-8 Weeks
P5314.41.355280 P5316.41.355280 P5317.41.355280 P5318.41.355280 355 280 960 300 220 480 433 6-8 Weeks
P5314.41.355315 P5316.41.355315 P5317.41.355315 P5318.41.355315 355 315 990 300 220 495 433 6-8 Weeks
P5314.41.400090 P5316.41.400090 P5317.41.400090 P5318.41.400090 400 90 760 300 180 380 410 6-8 Weeks
P5314.41.400110 P5316.41.400110 P5317.41.400110 P5318.41.400110 400 110 780 300 180 390 410 6-8 Weeks
P5314.41.400125 P5316.41.400125 P5317.41.400125 P5318.41.400125 400 125 790 300 180 395 410 6-8 Weeks
P5314.41.400160 P5316.41.400160 P5317.41.400160 P5318.41.400160 400 160 840 300 180 420 415 6-8 Weeks
P5314.41.400180 P5316.41.400180 P5317.41.400180 P5318.41.400180 400 180 860 300 220 430 455 6-8 Weeks
P5314.41.400200 P5316.41.400200 P5317.41.400200 P5318.41.400200 400 200 880 300 220 440 455 6-8 Weeks
P5314.41.400225 P5316.41.400225 P5317.41.400225 P5318.41.400225 400 225 900 300 220 450 455 6-8 Weeks
P5314.41.400250 P5316.41.400250 P5317.41.400250 P5318.41.400250 400 250 930 300 220 465 455 6-8 Weeks
P5314.41.400280 P5316.41.400280 P5317.41.400280 P5318.41.400280 400 280 960 300 220 480 455 6-8 Weeks
P5314.41.400315 P5316.41.400315 P5317.41.400315 P5318.41.400315 400 315 1000 300 220 500 455 6-8 Weeks
P5314.41.400355 P5316.41.400355 P5317.41.400355 P5318.41.400355 400 355 1030 300 280 515 515 6-8 Weeks
P5314.41.450110 P5316.41.450110 P5317.41.450110 P5318.41.450110 450 110 780 300 180 390 435 6-8 Weeks
P5314.41.450125 P5316.41.450125 P5317.41.450125 P5318.41.450125 450 125 790 300 180 395 435 6-8 Weeks
P5314.41.450160 P5316.41.450160 P5317.41.450160 P5318.41.450160 450 160 840 300 180 420 440 6-8 Weeks
P5314.41.450180 P5316.41.450180 P5317.41.450180 P5318.41.450180 450 180 860 300 220 430 480 6-8 Weeks
P5314.41.450200 P5316.41.450200 P5317.41.450200 P5318.41.450200 450 200 880 300 220 440 480 6-8 Weeks
P5314.41.450225 P5316.41.450225 P5317.41.450225 P5318.41.450225 450 225 910 300 220 455 480 6-8 Weeks
P5314.41.450250 P5316.41.450250 P5317.41.450250 P5318.41.450250 450 250 930 300 220 465 480 6-8 Weeks
P5314.41.450280 P5316.41.450280 P5317.41.450280 P5318.41.450280 450 280 960 300 220 480 480 6-8 Weeks
P5314.41.450315 P5316.41.450315 P5317.41.450315 P5318.41.450315 450 315 990 300 220 495 480 6-8 Weeks
P5314.41.450355 P5316.41.450355 P5317.41.450355 P5318.41.450355 450 355 1030 300 280 515 540 6-8 Weeks
P5314.41.450400 P5316.41.450400 P5317.41.450400 P5318.41.450400 450 400 1090 300 280 545 545 6-8 Weeks
P5314.41.500125 P5316.41.500125 P5317.41.500125 - 500 125 890 350 180 445 460 6-8 Weeks
P5314.41.500160 P5316.41.500160 P5317.41.500160 - 500 160 940 350 180 470 465 6-8 Weeks
P5314.41.500180 P5316.41.500180 P5317.41.500180 - 500 180 960 350 220 480 505 6-8 Weeks
P5314.41.500200 P5316.41.500200 P5317.41.500200 - 500 200 980 350 220 490 505 6-8 Weeks
P5314.41.500225 P5316.41.500225 P5317.41.500225 - 500 225 1010 350 220 505 505 6-8 Weeks
P5314.41.500250 P5316.41.500250 P5317.41.500250 - 500 250 1030 350 220 515 505 6-8 Weeks
P5314.41.500280 P5316.41.500280 P5317.41.500280 - 500 280 1060 350 220 530 505 6-8 Weeks
P5314.41.500315 P5316.41.500315 P5317.41.500315 - 500 315 1100 350 220 550 505 6-8 Weeks
P5314.41.500355 P5316.41.500355 P5317.41.500355 - 500 355 1140 350 280 570 565 6-8 Weeks
P5314.41.560160 P5316.41.560160 P5317.41.560160 - 560 160 940 350 180 470 495 6-8 Weeks
P5314.41.560180 P5316.41.560180 P5317.41.560180 - 560 180 960 350 220 480 535 6-8 Weeks
P5314.41.560200 P5316.41.560200 P5317.41.560200 - 560 200 980 350 220 490 535 6-8 Weeks
P5314.41.560225 P5316.41.560225 P5317.41.560225 - 560 225 1000 350 220 500 535 6-8 Weeks
P5314.41.560250 P5316.41.560250 P5317.41.560250 - 560 250 1030 350 220 515 535 6-8 Weeks
P5314.41.560280 P5316.41.560280 P5317.41.560280 - 560 280 1060 350 220 530 535 6-8 Weeks
P5314.41.560315 P5316.41.560315 P5317.41.560315 - 560 315 1090 350 220 545 535 6-8 Weeks
P5314.41.630160 P5316.41.630160 P5317.41.630160 - 630 160 940 350 180 470 530 6-8 Weeks
P5314.41.630180 P5316.41.630180 P5317.41.630180 - 630 180 960 350 220 480 570 6-8 Weeks
P5314.41.630200 P5316.41.630200 P5317.41.630200 - 630 200 980 350 220 490 570 6-8 Weeks
P5314.41.630225 P5316.41.630225 P5317.41.630225 - 630 225 1000 350 220 500 570 6-8 Weeks
P5314.41.630250 P5316.41.630250 P5317.41.630250 - 630 250 1030 350 220 515 570 6-8 Weeks
P5314.41.630280 P5316.41.630280 P5317.41.630280 - 630 280 1160 350 220 580 570 6-8 Weeks
P5314.41.630315 P5316.41.630315 P5317.41.630315 - 630 315 1090 350 220 545 570 6-8 Weeks
P5314.41.630355 P5316.41.630355 P5317.41.630355 - 630 355 1130 350 280 565 630 6-8 Weeks
P5314.41.630400 P5316.41.630400 P5317.41.630400 - 630 400 1190 350 280 595 635 6-8 Weeks
P5314.41. P5316.41. P5317.41.   710 ≤ 560 Available on request Contact us
P5314.41. P5316.41. P5317.41. - 800 ≤ 630 Available on request Contact us
P5314.41. P5316.41. - - 900 ≤ 710 Available on request Contact us
P5314.41. P5316.41. - - 1000 ≤ 800 Available on request Contact us
P5314.41. - - - 1200 ≤ 900 Available on request Contact us
P5314.41. - - - 1400 ≤ 1000 Available on request Contact us
P5314.41. - - - 1600 ≤ 1200 Available on request Contact us
P5314.41. - - - 1800 ≤ 1400 Available on request Contact us
P5314.41. - - - 2000 ≤ 1600 Available on request Contact us

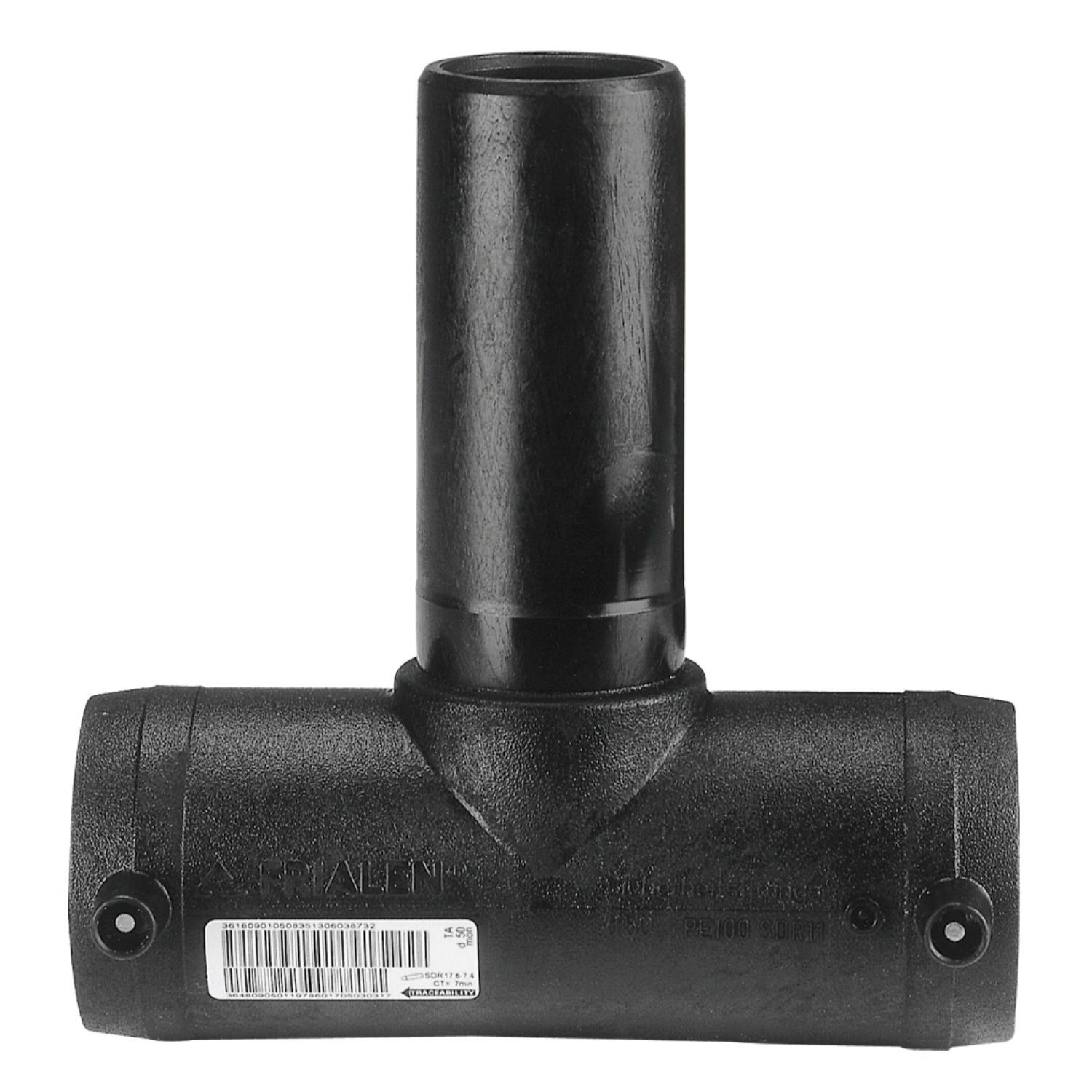

Black Tees / TA RED / PN16 / SDR11

Friatec's PE100 Injection moulded electrofusion Tees are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in black couplers, along with built-in reinforcement, so no de-ration is required.

Injection moulded tee piece with electrofusion sockets on the mainway and an extra-long spigot branch outlet for connection using a black MB coupler.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Typically these size tees would be used for air valve connections, as they are too small for rising mains.

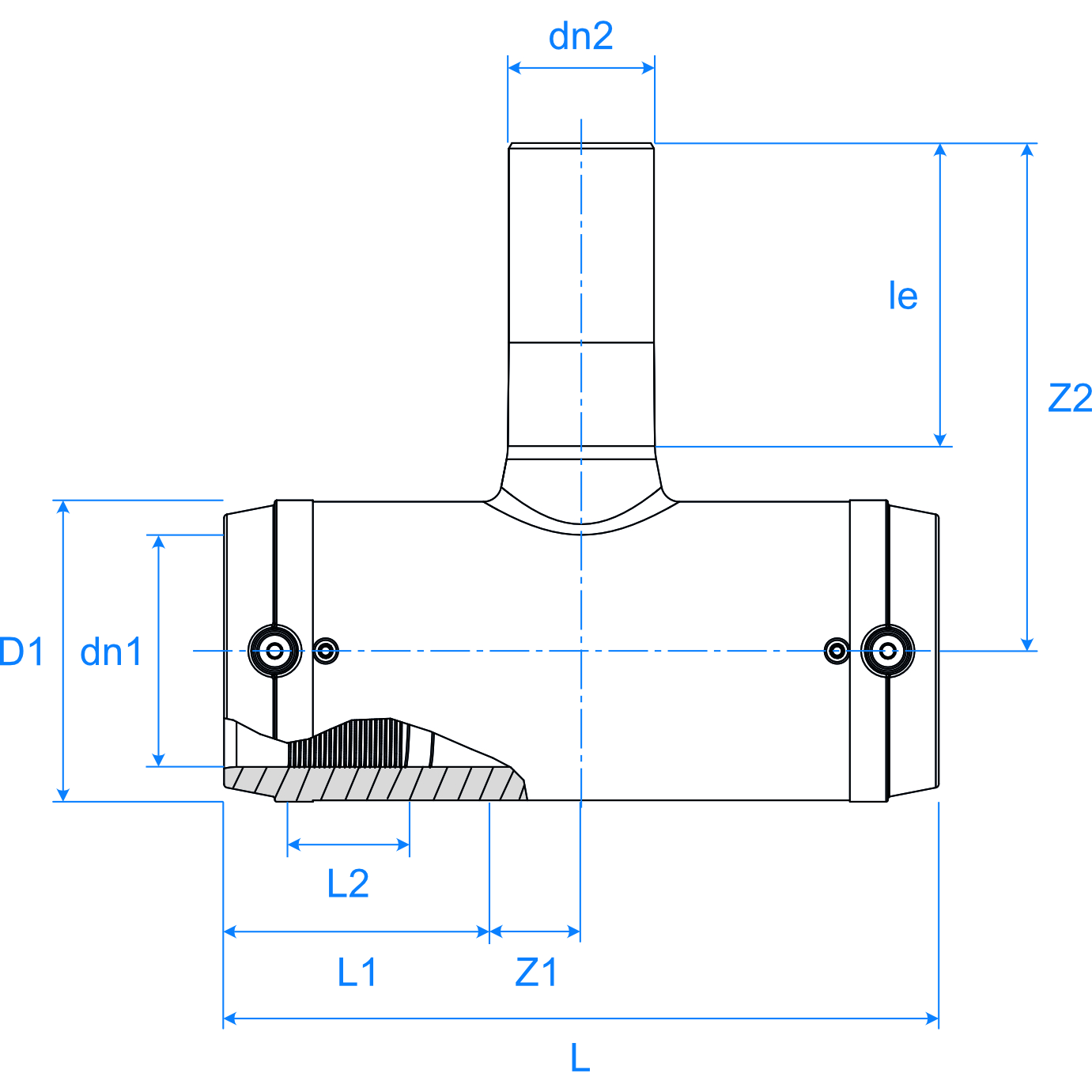

Product Code dn1 dn2 D1 L L1 L2 le Z1 Z2 Availability in Hong Kong
P3316.20.063032 63 32 84 197 63 32 51 36 131 8-12 weeks
P3316.20.063050 63 50 84 197 63 32 60 36 155 8-12 weeks
P3316.20.090032 90 32 116 280 79 43 44 61 114 8-12 weeks
P3316.20.090063 90 63 116 280 79 43 63 61 133 8-12 weeks
P3316.20.110063 110 63 141 310 82 48 63 73 145 8-12 weeks
P3316.20.110090 110 90 141 310 82 48 79 73 173 8-12 weeks
P3316.20.160090 160 90 203 390 98 45 79 97 203 8-12 weeks
P3316.20.160110 160 110 203 390 98 45 82 97 206 8-12 weeks
P3316.20.160125 160 125 203 390 98 45 87 97 211 8-12 weeks

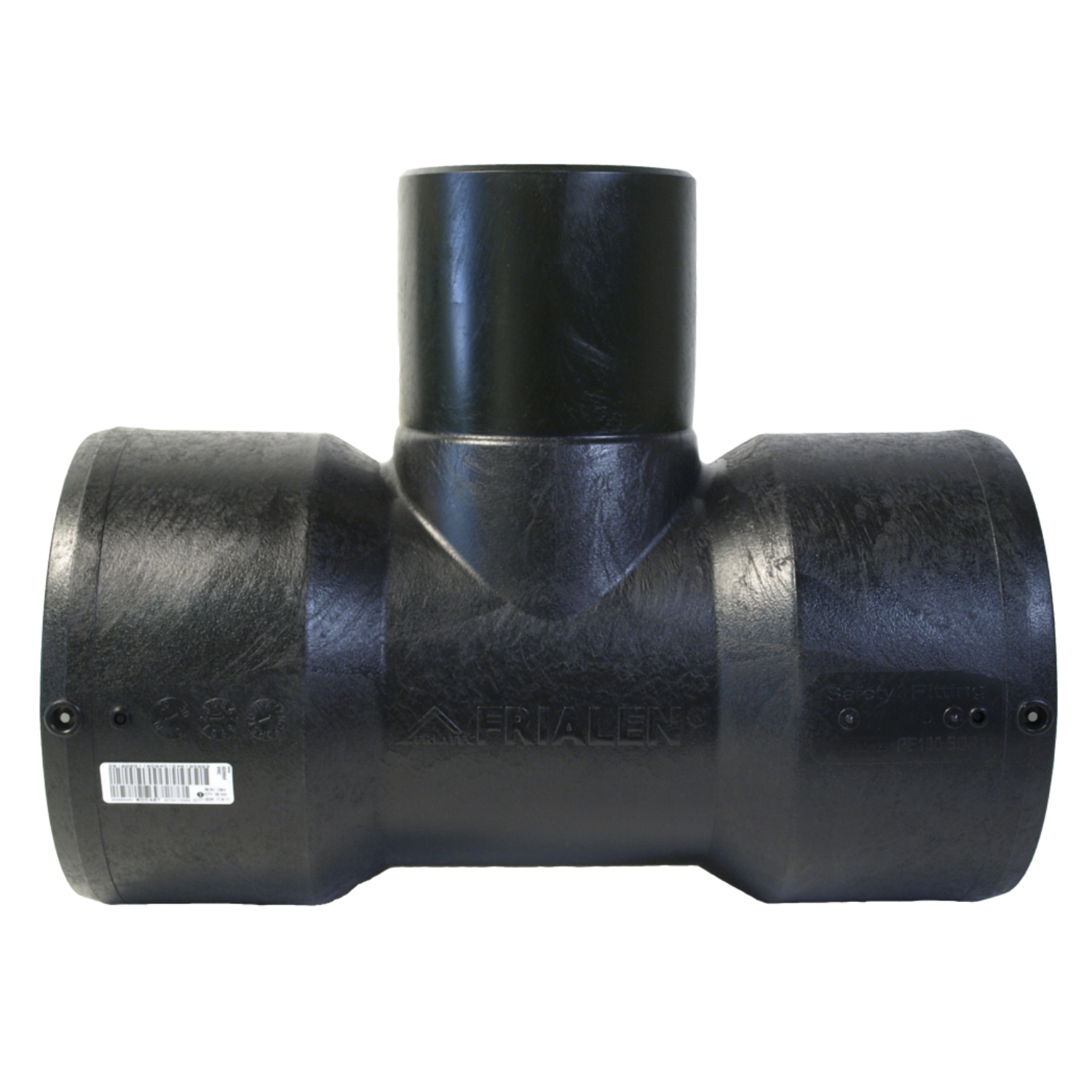

Black Tees / T RED / PN16 / SDR11

Friatec's PE100 Injection moulded electrofusion Tees are suitable for fusing pipes from SDR11 to SDR17.6  Electrofusion sockets feature all the same performance benefits found in black couplers, along with built-in reinforcement, so no de-ration is required.

NOTE: The pipe ends and sockets must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Typically these size tees would be used for air valve connections as they are too small for rising mains.

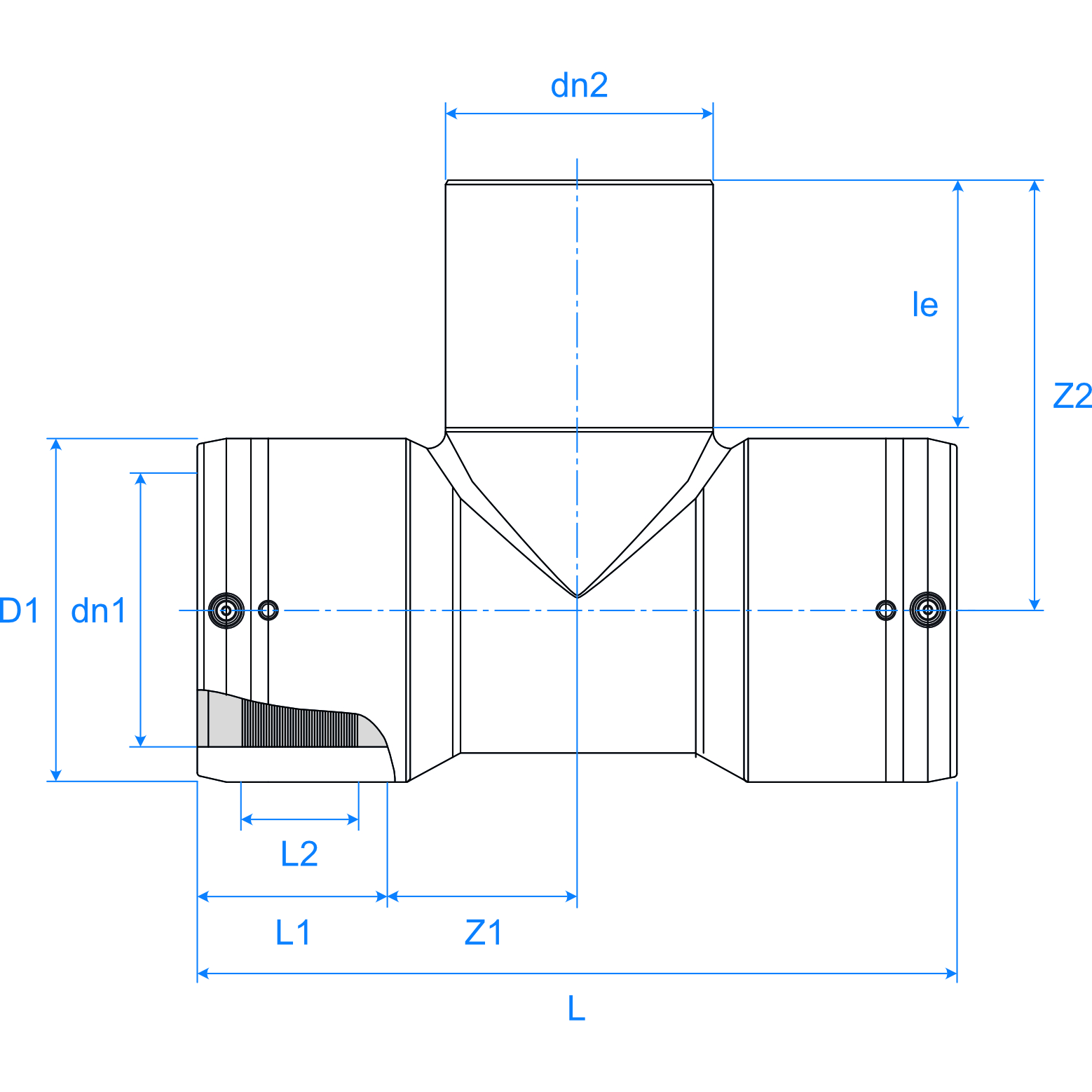

Product Code dn1 dn2 D1 L L1 L2 le Z1 Z2 Availability in Hong Kong
P3316.22.090032 90 32 116 280 79 44 57 122 114 8-12 weeks
P3316.22.090063 90 63 116 280 79 44 63 122 133 8-12 weeks
P3316.22.110063 110 63 141 310 87 48 63 136 145 8-12 weeks
P3316.22.110090 110 90 141 310 87 48 79 136 173 8-12 weeks
P3316.22.160063 160 63 203 390 96 48 63 198 203 8-12 weeks
P3316.22.160110 160 110 203 390 96 48 82 198 206 8-12 weeks
P3316.22.160125 160 125 203 390 96 48 87 198 211 8-12 weeks



Black Tees / T RED XL / PN16 / SDR11

Product Code dn1 dn2 D1 L L1 L2 le Z1  Z2 Availability in Hong Kong
P3316.22.250110 250 110 310 770 128 80 82 514 250 8-12 weeks
P3316.22.250225 250 225 310 770 128 80 120 514 285 8-12 weeks
P3316.22.280110 280 110 350 905 139 84 82 627 265 8-12 weeks
P3316.22.280225 280 225 350 905 139 84 120 627 300 8-12 weeks
P3316.22.315110 315 110 396 940 150 80 82 640 287 8-12 weeks
P3316.22.315225 315 225 396 940 150 80 120 640 327 8-12 weeks
