Black Couplers / EF / PN16 / SDR11

Black Couplers / MB / PN16 / SDR11

Friatec's Frialen PE100 MB Injection moulded couplers are suitable for fusing pipes from SDR11 to SDR17.6  MB couplers feature large insertion depth for pipe stability during fusion (no holding clamps required) and extra-wide fusion and cold zones for maximum melt containment. Exposed heating coils for direct heat transmission to the pipe and a small annular gap to ensure optimum joining pressure in the fusion zone.  A visual pop up fusion indicator confirms weld pressure and traceability bar codes are included for recording batch GIS and BIM records for each coupler installed.  All couplers are sealed in individual plastic bags for protection on site.

NOTE: The pipe or spigot ends and the coupler must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

Product Code dn D L L1 L2 Z Availability in Hong Kong
P3316.150.063 63 82 110 55 29 2 8-12 Weeks
P3316.150.090 90 114 157 77 51 3 Ex-Stock
P3316.150.110 110 137 159 78 49 3 8-12 Weeks
P3316.150.125 125 156 172 85 51 3 8-12 Weeks
P3316.150.160 160 199 190 94 52 3 8-12 Weeks

Black Couplers / UB11 / PN16 / SDR11

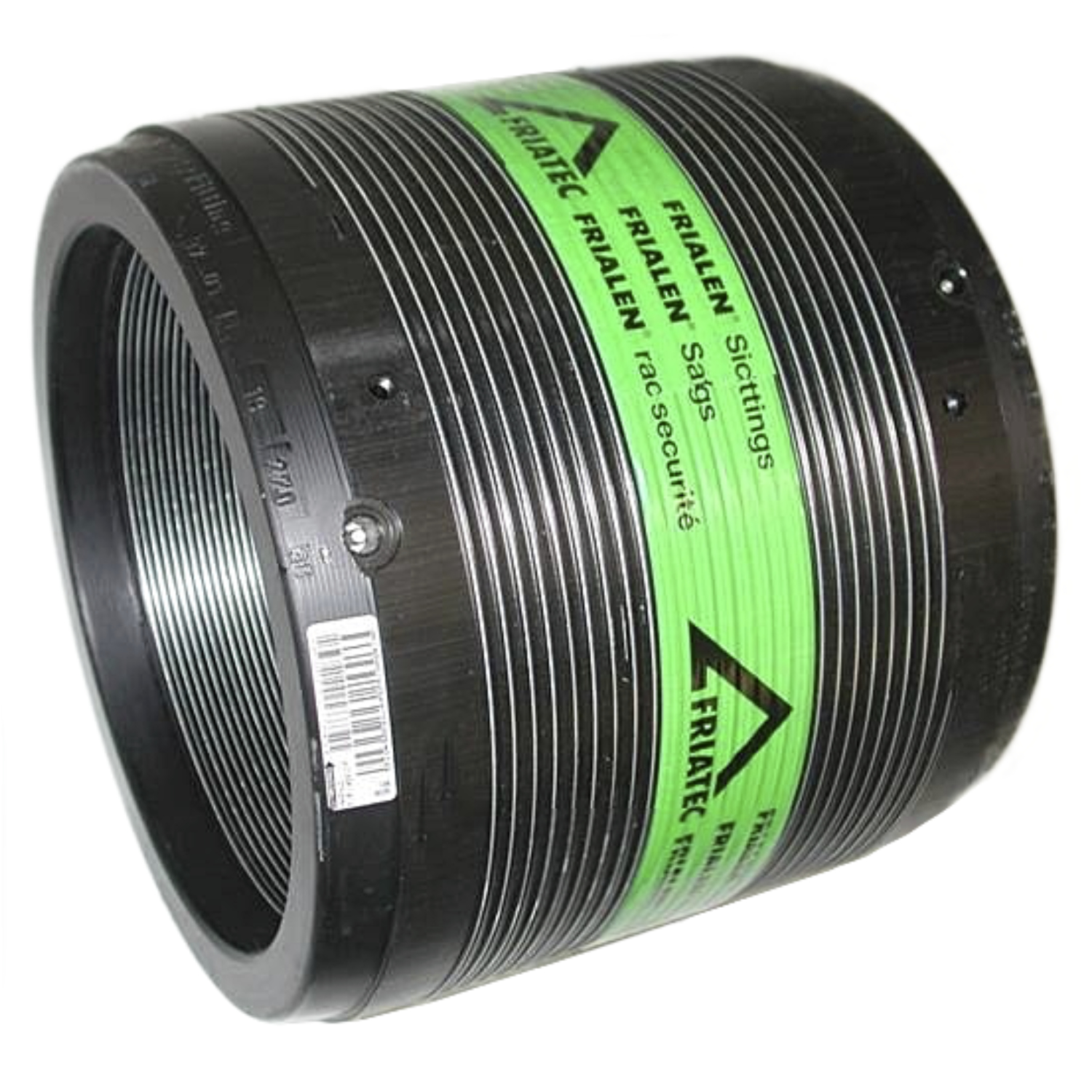

Friatec's Frialen PE100 UB11 black couplers are suitable for fusing pipes from SDR11 to SDR17.6.  UB couplers feature large insertion depth for pipe stability during fusion (no holding clamps required) and extra-wide fusion and cold zones for maximum melt containment. Exposed heating coils for direct heat transmission to the pipe and a small annular gap to ensure optimum joining pressure in the fusion zone.

UB11 coupler sizes dn ≥ 400 include a barcode PREHEAT function to warm the pipe and coupler to help re-round oval pipes and close the fusion gap prior to welding and permanent external reinforcement wound into the body of the coupler to ensure the coupler does not expand during the fusing process.

Note: Couplers that are not injection moulded and do not have external reinforcement are likely to expand during fusion.  Coupler expansion increases the gap between the pipe and coupler, which reduces weld pressure in the joint. This leads to slow crack growth failure through the weld plane.  Slow Crack Growth, by its name, is slow and occurs over time (1-5 years), well beyond the joint successfully passing hydrostatic testing on site. DSD Appendix 5A Clause 5.6.13, requires non-injection moulded couplers to have a suitable form of external reinforcement to prevent expansion applied to the coupler as parts of it's manufacture.

A visual pop up fusion indicator confirms weld pressure and traceability bar codes are included for recording batch GIS and BIM records for each coupler installed.  All couplers are sealed in individual plastic bags for protection on site.

NOTE: The pipe or spigot ends and the coupler must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit for logging the full range of weld data available.

Frialen UB11 Electrofusion couplers are made in Germany.

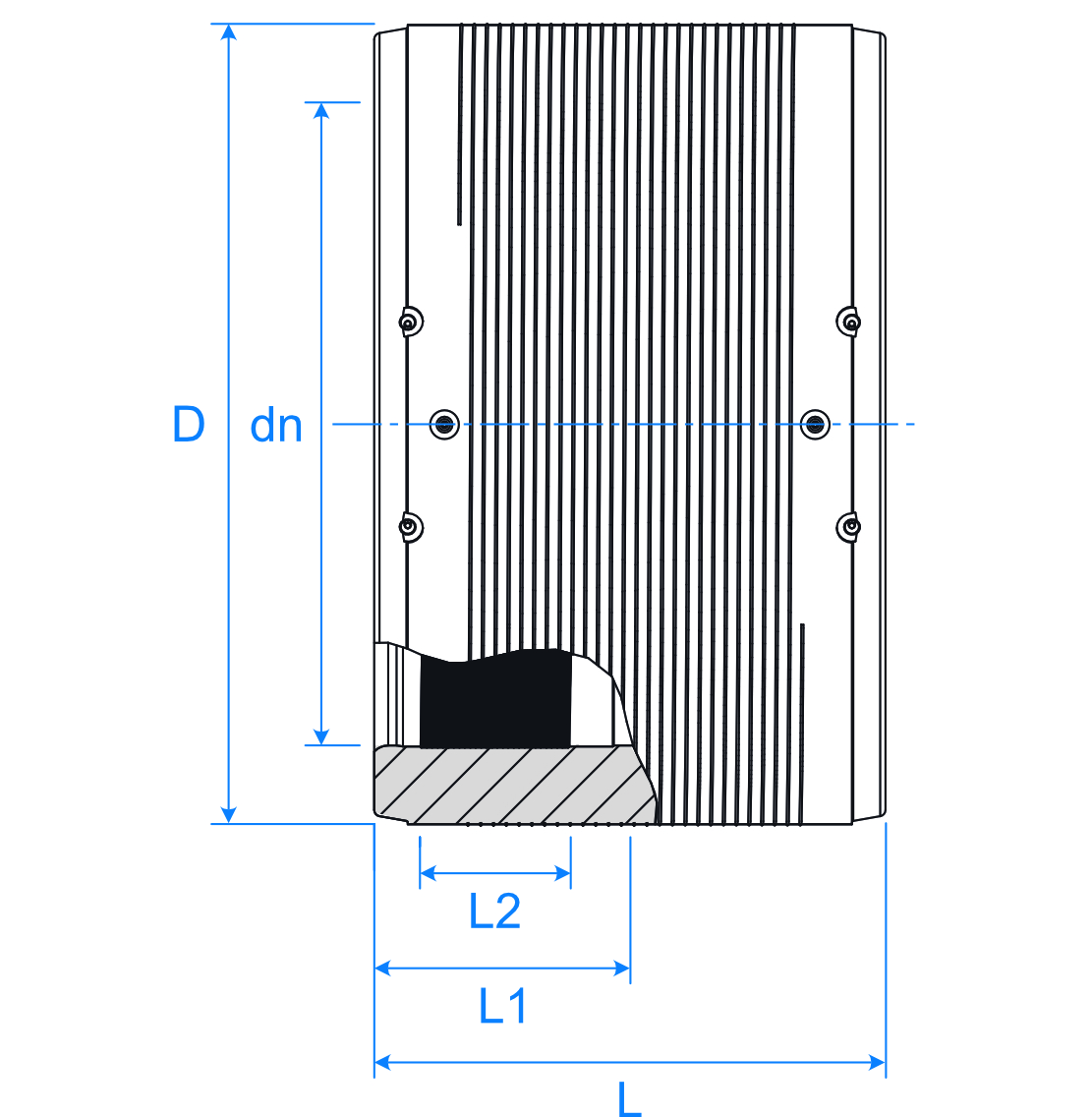

Product Code dn D L L1 L2 Availability in Hong Kong
P3316.100.180 180 220 210 105 63 8-12 Weeks
P3316.100.200 200 247 220 110 63 8-12 Weeks
P3316.100.225 225 277 236 118 71 8-12 Weeks
P3316.100.250 250 315 246 123 68 8-12 Weeks
P3316.100.280 280 347 285 142 56 Ex-Stock
P3316.100.315 315 390 300 150 78 Ex-Stock
P3316.100.355 355 445 300 150 68 Ex-Stock
P3316.098.400 400 500 320 160 90 Ex-Stock
P3316.098.450 450 560 340 170 79 Ex-Stock
P3316.098.500 500 630 360 180 80 8-12 Weeks
P3316.098.560 560 715 380 190 95 8-12 Weeks
P3316.098.630 630 810 420 210 101 8-12 Weeks
P3316.098.710 710 900 442 210 108 8-12 Weeks
P3316.098.800 800 1000 500 250 136 8-12 Weeks
P3316.098.900 900 1130 600 300 165 8-12 Weeks
P3316.098.1000 1000 1200 680 340 171 8-12 Weeks
