Chamber Tees

Chamber tees are a form of curved sewer that is less than the minimum radius requirements for horizontal bends. Because the radius of curvature is less than that required in PS Appendix 5A Clause 5.8.4, they are designed with a size on size inspection opening to allow non-man access for cleaning or inspection.

These are used where site space prevents the installation of a concrete manhole chamber, but a change in direction is required, therefore include inspection / access capability.

Fabricated from a fitting tee body with segmented angles to provide the change in direction.

Chamber Tees / LS / SDR17

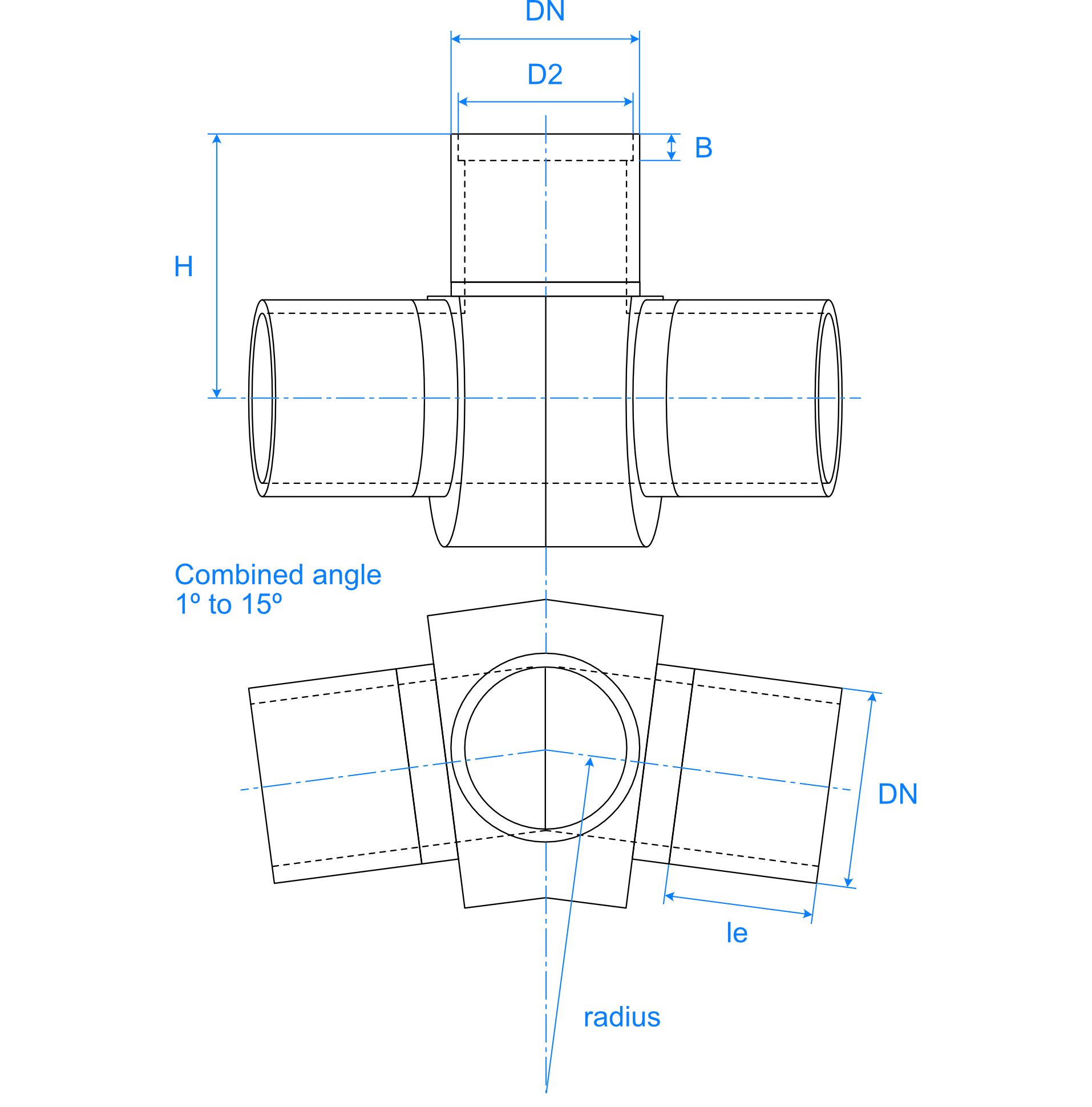

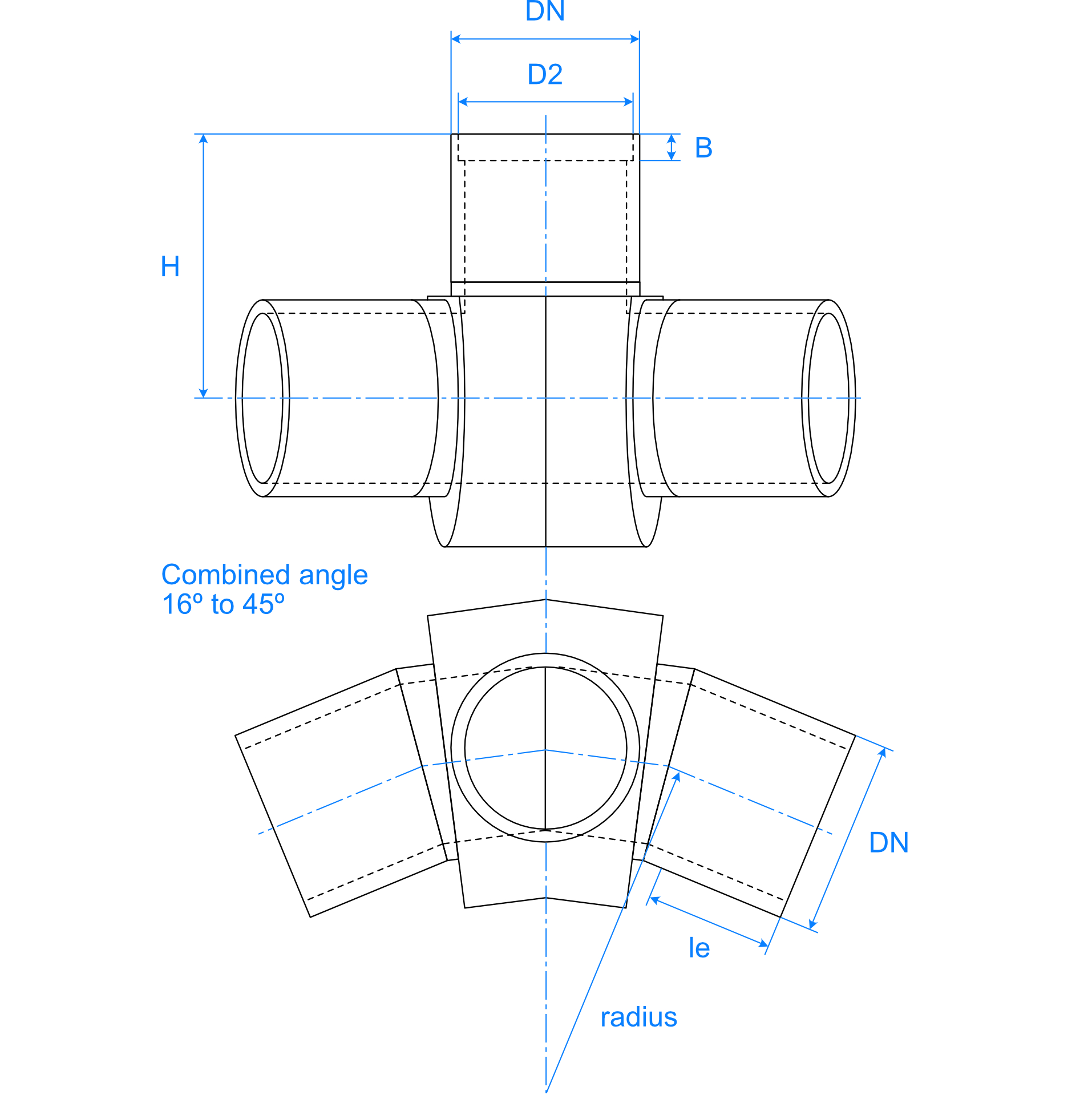

One mitre Three mitre Five mitre Chamber cap Pipe dimensions Minimum dimensions Availability in
Hong Kong
1º to 15º 16º to 45º 46º to 75º DN OD SDR ROC le LS H B D2
≥ Indicates the dimension can be as given, or greater, but not less than the value stated in the table above.
   Other SDR and larger size dimensions available on request, All dimensions in mm
P531E.T1.160 P531E.T3.160 P531E.T5.160 P531E.T0.160 150 160 17 ≥ 368 150 ≥ 255 50 147 4-6 Weeks
P531E.T1.225 P531E.T3.225 P531E.T5.225 P531E.T0.225 200 225 17 ≥ 518 150 ≥ 288 50 206 4-6 Weeks
