Specialty Tees

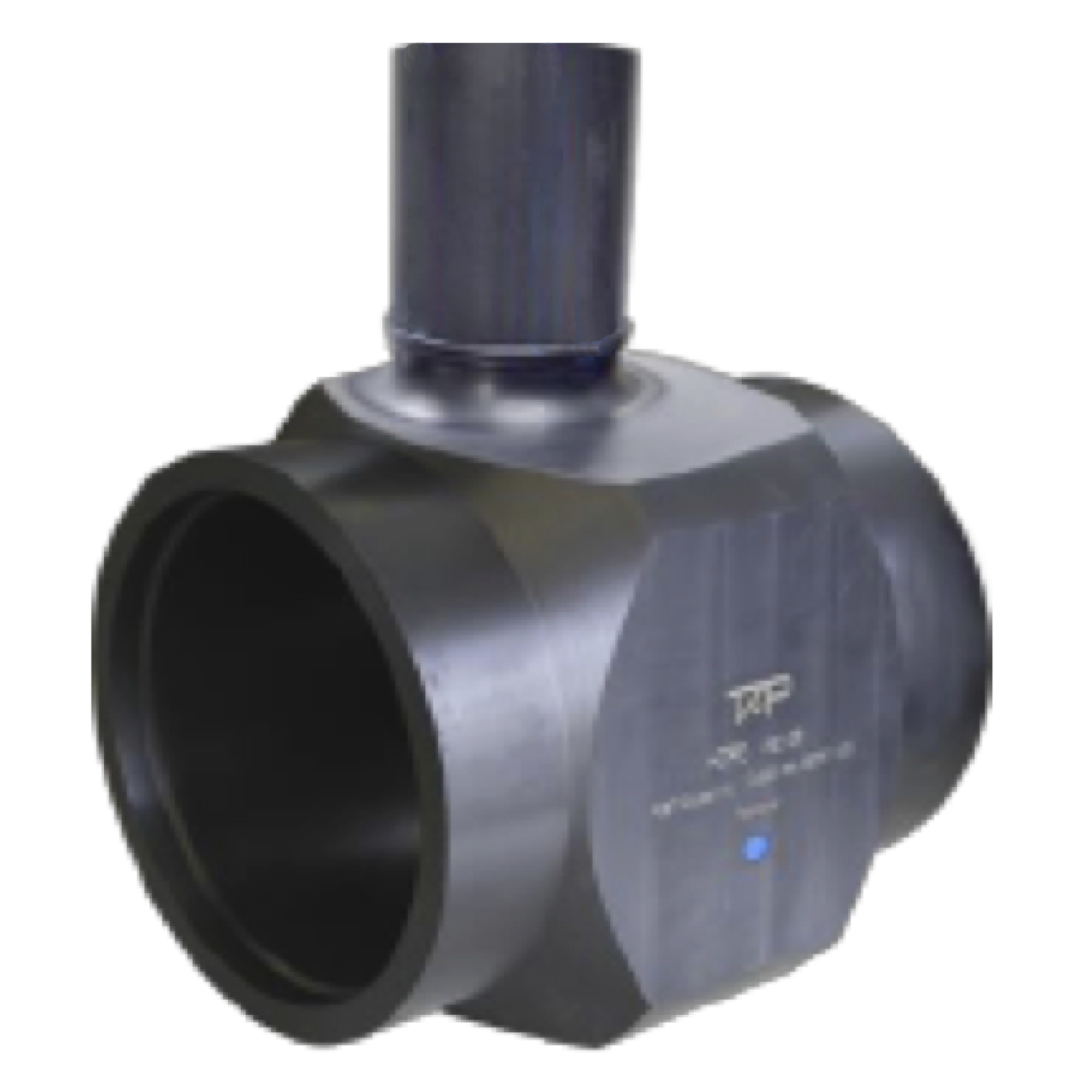

Level Invert (Scour/Drain) Tee
Fabricated Level invert or Scour Tee's are manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.
NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes before fusing.
| Larger sizes up to dn1000 with scour offtakes from dn180 to dn450 are available in PN16 SDR11 rating. Dimensions on request. | |||||||||
| PN10 SDR17 fully complies with WSD PS, only where the engineer allows the use of PN10 fittings. | |||||||||
| Larger sizes up to dn2000 with offtakes from dn180 to dn1000 are available in PN10 SDR17 rating. Dimensions avaialble on request. | |||||||||

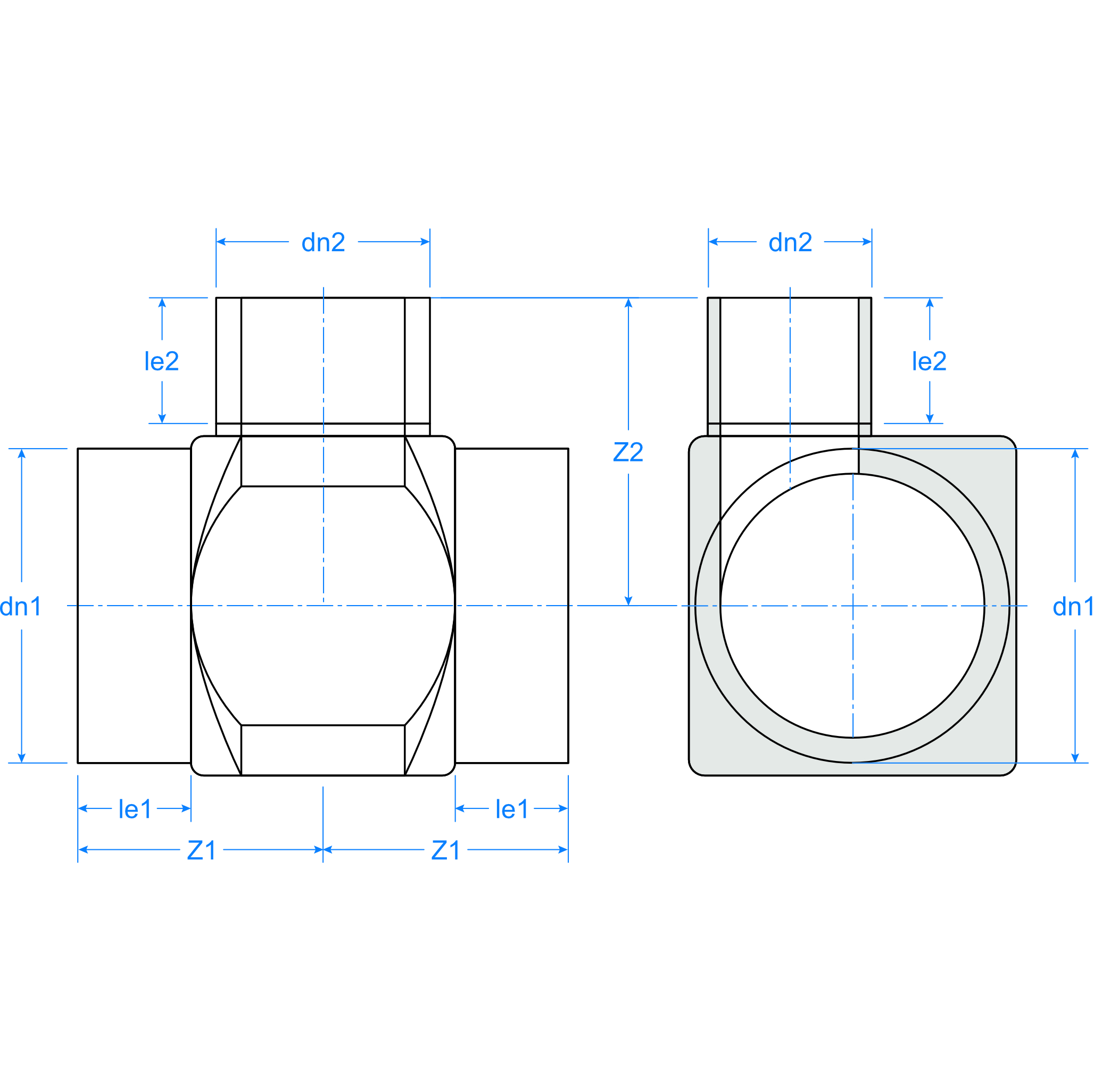

| PN10 SDR17 | PN16 SDR11 | dn1 | dn2 | L | le1 | le2 | Z1 | Z2 | Availability in Hong Kong |
| - | P5316.42.250063 | 250 | 63 | 670 | 250 | 180 | 335 | 335 | 6-8 weeks |
| - | P5316.42.250090 | 250 | 90 | 690 | 250 | 180 | 345 | 335 | 6-8 weeks |
| - | P5316.42.250125 | 250 | 125 | 710 | 250 | 180 | 355 | 335 | 6-8 weeks |
| - | P5316.42.315063 | 315 | 63 | 790 | 300 | 180 | 395 | 372.5 | 6-8 weeks |
| - | P5316.42.315090 | 315 | 90 | 810 | 300 | 180 | 405 | 372.5 | 6-8 weeks |
| - | P5316.42.315125 | 315 | 125 | 840 | 300 | 180 | 420 | 372.5 | 6-8 weeks |
| P5314.42.355090 | P5316.42.355090 | 355 | 90 | 830 | 300 | 180 | 415 | 392.5 | 6-8 weeks |
| P5314.42.355125 | P5316.42.355125 | 355 | 125 | 850 | 300 | 180 | 425 | 392.5 | 6-8 weeks |
| P5314.42.355180 | P5316.42.355180 | 355 | 180 | 900 | 300 | 220 | 450 | 437.5 | 6-8 weeks |
| P5314.42.450125 | P5316.42.450125 | 450 | 125 | 880 | 300 | 180 | 440 | 445 | 6-8 weeks |
| P5314.42.450180 | P5316.42.450180 | 450 | 180 | 940 | 300 | 220 | 470 | 490 | 6-8 weeks |
| P5314.42.500125 | P5316.42.500125 | 500 | 125 | 1000 | 350 | 180 | 500 | 470 | 6-8 weeks |
| P5314.42.500180 | P5316.42.500180 | 500 | 180 | 1050 | 350 | 220 | 525 | 515 | 6-8 weeks |
| P5314.42.500250 | P5316.42.500250 | 500 | 250 | 1110 | 350 | 220 | 555 | 515 | 6-8 weeks |
| P5314.42.560180 | P5316.42.560180 | 560 | 180 | 1060 | 350 | 220 | 530 | 545 | 6-8 weeks |
| P5314.42.560250 | P5316.42.560250 | 560 | 250 | 1110 | 350 | 220 | 555 | 545 | 6-8 weeks |
| P5314.42.630180 | P5316.42.630180 | 630 | 180 | 1090 | 350 | 220 | 545 | 585 | 6-8 weeks |
| P5314.42.630250 | P5316.42.630250 | 630 | 250 | 1140 | 350 | 220 | 570 | 585 | 6-8 weeks |
| P5314.42.630315 | P5316.42.630315 | 630 | 315 | 1190 | 350 | 220 | 595 | 585 | 6-8 weeks |

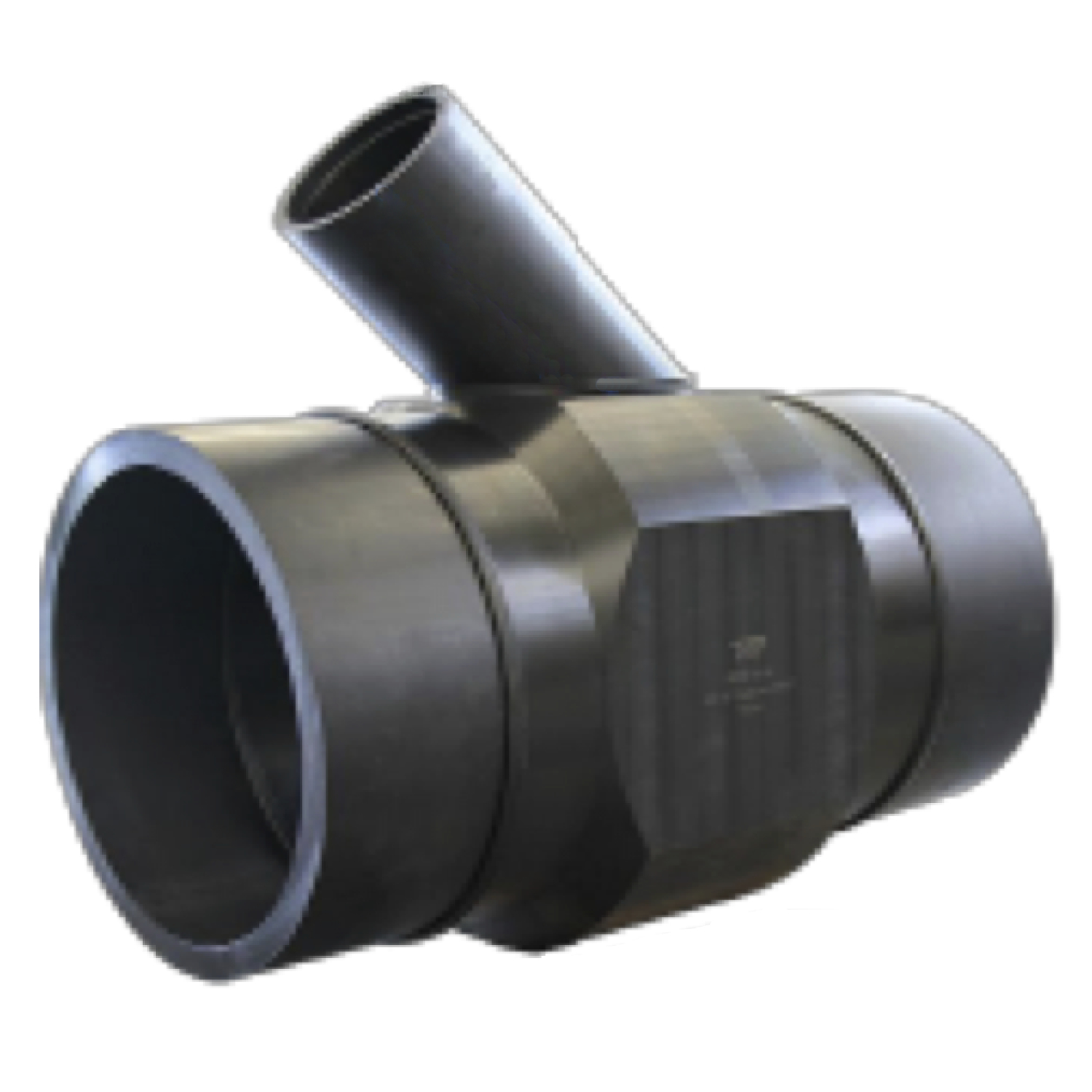

45º Branch Reducing Tee
Fabricated angled Branch Tee's have a centric offtake manufactured by machining PE100+ hollow bar into a fitting body and welding on spigot ends in according with BS ISO 21307. Fabricated Tee's feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability.
NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes before fusing.
| 45º Elbow is used on the outlet to eliminate angled butt welds, prohibited under WSD PS Appendix 22.09 Clause 5.5.7.6. | ||||||||||
| Larger sizes up to dn1000 with offtakes from dn180 to dn710 are available in PN16 SDR11 rating. Dimensions on request. | ||||||||||
| Larger sizes up to dn1200 with offtakes from dn180 to dn800 are available in PN10 SDR17 rating. Dimensions avaialble on request. | ||||||||||

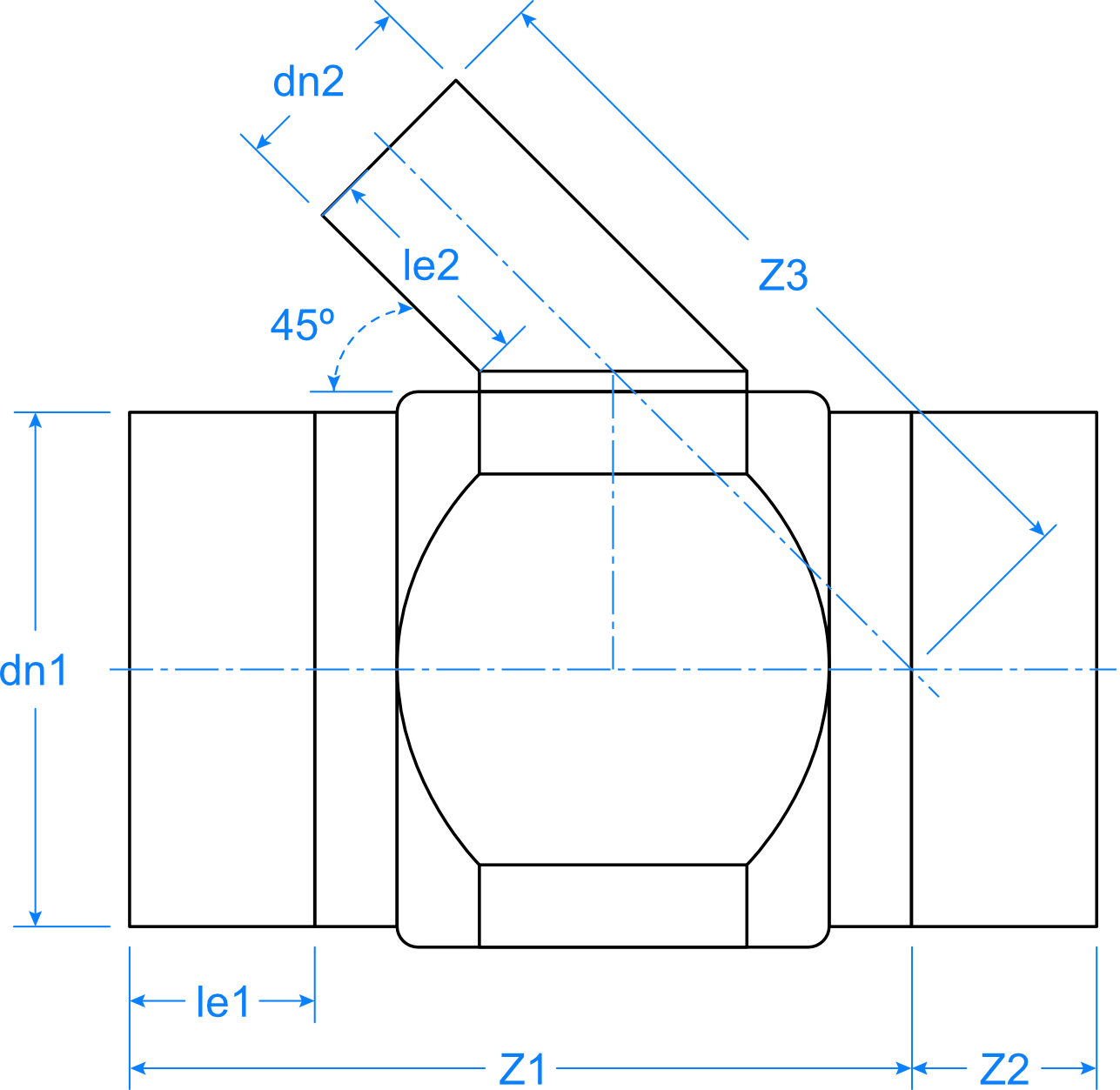

| PN10 SDR17 | PN16 SDR11 | dn1 | dn2 | L | le1 | le2 | Z1 | Z2 | Z3 | Availability in Hong Kong |
| P5314.43.250063 | P5316.43.250063 | 250 | 63 | 681 | 200 | 70 | 488 | 372 | 193 | 12-14 weeks |
| P5314.43.250090 | P5316.43.250090 | 250 | 90 | 731 | 200 | 80 | 513 | 404 | 218 | 12-14 weeks |
| P5314.43.250125 | P5316.43.250125 | 250 | 125 | 775 | 200 | 100 | 535 | 469 | 240 | 12-14 weeks |
| P5314.43.250180 | P5316.43.250180 | 250 | 180 | 871 | 200 | 110 | 588 | 516 | 283 | 12-14 weeks |
| P5314.43.250250 | P5316.43.250250 | 250 | 250 | 981 | 200 | 200 | 643 | 726 | 338 | 12-14 weeks |
| P5314.43.280063 | P5316.43.280063 | 280 | 63 | 681 | 200 | 70 | 503 | 393 | 178 | 12-14 weeks |
| P5314.43.280090 | P5316.43.280090 | 280 | 90 | 731 | 200 | 80 | 528 | 425 | 203 | 12-14 weeks |
| P5314.43.280125 | P5316.43.280125 | 280 | 125 | 775 | 200 | 100 | 550 | 490 | 225 | 12-14 weeks |
| P5314.43.280180 | P5316.43.280180 | 280 | 180 | 871 | 200 | 110 | 603 | 537 | 268 | 12-14 weeks |
| P5314.43.280250 | P5316.43.280250 | 280 | 250 | 981 | 200 | 200 | 658 | 747 | 323 | 12-14 weeks |
| P5314.43.315090 | P5316.43.315090 | 315 | 90 | 770 | 200 | 80 | 565 | 450 | 205 | 12-14 weeks |
| P5314.43.315125 | P5316.43.315125 | 315 | 125 | 816 | 200 | 100 | 588 | 515 | 228 | 12-14 weeks |
| P5314.43.315180 | P5316.43.315180 | 315 | 180 | 910 | 200 | 110 | 640 | 562 | 270 | 12-14 weeks |
| P5314.43.315250 | P5316.43.315250 | 315 | 250 | 1020 | 200 | 200 | 695 | 772 | 325 | 12-14 weeks |
| P5314.43.315315 | P5316.43.315315 | 315 | 315 | 1130 | 200 | 200 | 750 | 835 | 380 | 12-14 weeks |
| P5314.43.355090 | P5316.43.355090 | 355 | 90 | 770 | 200 | 80 | 585 | 478 | 185 | 12-14 weeks |
| P5314.43.355125 | P5316.43.355125 | 355 | 125 | 816 | 200 | 100 | 608 | 543 | 208 | 12-14 weeks |
| P5314.43.355180 | P5316.43.355180 | 355 | 180 | 910 | 200 | 110 | 660 | 591 | 250 | 12-14 weeks |
| P5314.43.355250 | P5316.43.355250 | 355 | 250 | 1070 | 200 | 200 | 765 | 836 | 305 | 12-14 weeks |
| P5314.43.355315 | P5316.43.355315 | 355 | 315 | 1180 | 200 | 200 | 820 | 898 | 360 | 12-14 weeks |
| P5314.43.355355 | P5316.43.355355 | 355 | 355 | 1220 | 200 | 200 | 830 | 892 | 390 | 12-14 weeks |
| P5314.43.450125 | P5316.43.450125 | 450 | 125 | 1015 | 300 | 100 | 755 | 611 | 260 | 12-14 weeks |
| P5314.43.450180 | P5316.43.450180 | 450 | 180 | 1111 | 300 | 110 | 808 | 658 | 303 | 12-14 weeks |
| P5314.43.450250 | P5316.43.450250 | 450 | 250 | 1221 | 300 | 200 | 863 | 868 | 358 | 12-14 weeks |
| P5314.43.450315 | P5316.43.450315 | 450 | 315 | 1331 | 300 | 200 | 918 | 930 | 413 | 12-14 weeks |
| P5314.43.450355 | P5316.43.450355 | 450 | 355 | 1421 | 300 | 200 | 978 | 959 | 443 | 12-14 weeks |
| P5314.43.450450 | P5316.43.450450 | 450 | 450 | 1561 | 300 | 300 | 1048 | 1159 | 513 | 12-14 weeks |
| P5314.43.500125 | P5316.43.500125 | 500 | 125 | 1015 | 300 | 100 | 780 | 646 | 235 | 12-14 weeks |
| P5314.43.500180 | P5316.43.500180 | 500 | 180 | 1111 | 300 | 110 | 833 | 693 | 278 | 12-14 weeks |
| P5314.43.500250 | P5316.43.500250 | 500 | 250 | 1221 | 300 | 200 | 888 | 903 | 333 | 12-14 weeks |
| P5314.43.500315 | P5316.43.500315 | 500 | 315 | 1331 | 300 | 200 | 943 | 966 | 388 | 12-14 weeks |
| P5314.43.500355 | P5316.43.500355 | 500 | 355 | 1441 | 300 | 200 | 1023 | 1008 | 418 | 12-14 weeks |
| P5314.43.500450 | P5316.43.500450 | 500 | 450 | 1581 | 300 | 300 | 1093 | 1208 | 488 | 12-14 weeks |
| P5314.43.500500 | P5316.43.500500 | 500 | 500 | 1671 | 300 | 300 | 1138 | 1248 | 533 | 12-14 weeks |
| P5314.43.560180 | P5316.43.560180 | 560 | 180 | 1111 | 300 | 110 | 863 | 735 | 248 | 12-14 weeks |
| P5314.43.560250 | P5316.43.560250 | 560 | 250 | 1221 | 300 | 200 | 918 | 945 | 303 | 12-14 weeks |
| P5314.43.560315 | P5316.43.560315 | 560 | 315 | 1331 | 300 | 200 | 973 | 1008 | 358 | 12-14 weeks |
| P5314.43.560355 | P5316.43.560355 | 560 | 355 | 1441 | 300 | 200 | 1053 | 1051 | 388 | 12-14 weeks |
| P5314.43.560450 | P5316.43.560450 | 560 | 450 | 1546 | 300 | 300 | 1123 | 1196 | 423 | 12-14 weeks |
| P5314.43.560500 | P5316.43.560500 | 560 | 500 | 1671 | 300 | 300 | 1168 | 1291 | 503 | 12-14 weeks |
| P5314.43.560560 | P5316.43.560560 | 560 | 560 | 1751 | 300 | 300 | 1198 | 1342 | 553 | 12-14 weeks |
| P5314.43.630180 | P5316.43.630180 | 630 | 180 | 1111 | 300 | 110 | 898 | 785 | 213 | 12-14 weeks |
| P5314.43.630250 | P5316.43.630250 | 630 | 250 | 1221 | 300 | 200 | 953 | 995 | 268 | 12-14 weeks |
| P5314.43.630315 | P5316.43.630315 | 630 | 315 | 1331 | 300 | 200 | 1008 | 1057 | 323 | 12-14 weeks |
| P5314.43.630355 | P5316.43.630355 | 630 | 355 | 1421 | 300 | 200 | 1068 | 1086 | 353 | 12-14 weeks |
| P5314.43.630450 | P5316.43.630450 | 630 | 450 | 1581 | 300 | 300 | 1158 | 1300 | 423 | 12-14 weeks |
| P5314.43.630500 | P5316.43.630500 | 630 | 500 | 1671 | 300 | 300 | 1203 | 1340 | 468 | 12-14 weeks |
| P5314.43.630560 | P5316.43.630560 | 630 | 560 | 1771 | 300 | 300 | 1253 | 1405 | 518 | 12-14 weeks |
| P5314.43.630630 | P5316.43.630630 | 630 | 630 | 1861 | 300 | 300 | 1288 | 1451 | 573 | 12-14 weeks |
