End Caps
Black Electrofusion End Cap / MV / EF / PN16 / SDR11
Friatec's PE100 MV Injection moulded end caps for end of line termination are suitable for fusing pipes from SDR11 to SDR17.6 MV end caps feature large insertion depth for pipe stability during fusion and extra wide fusion and cold zones for maximum melt containment. Exposed heating coils for direct heat transmission to the pipe and a small annular gap to ensure optimum joining pressure in the fusion zone. A visual pop up fusion indicator confirms weld pressure and traceability bar codes are included for recording batch GIS and BIM records for each coupler installed. All couplers are sealed in individual plastic bags for protection on site.
NOTE: The pipe or spigot ends and the coupler must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.

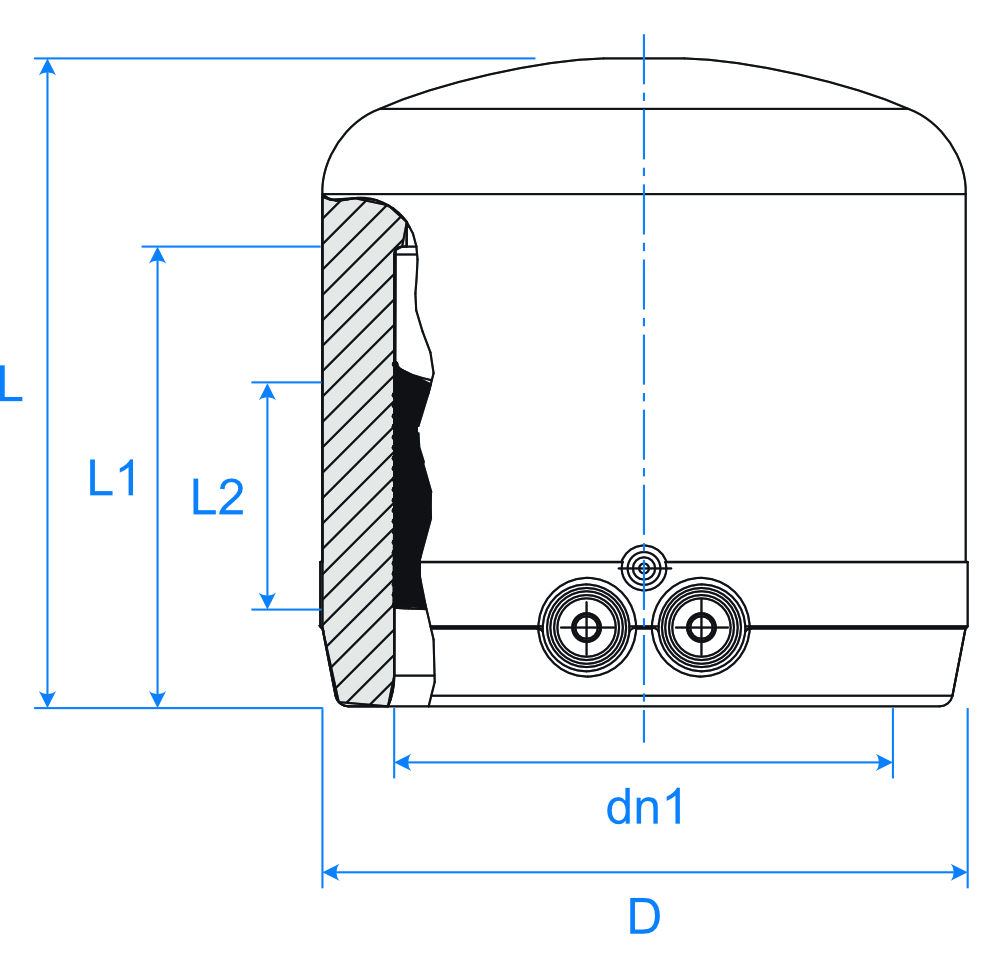

| Product Code | dn1 | D | L | L1 | L2 | Availability in Hong Kong |
| P3316.140.025 | 25 | 35 | 65 | 41 | 22 | Ex-Stock |
| P3316.140.032 | 32 | 44 | 70 | 44 | 24 | Ex-Stock |
| P3316.140.050 | 50 | 67 | 80 | 55 | 30 | Ex-Stock |
| P3316.140.063 | 63 | 84 | 88 | 63 | 31 | Ex-Stock |
| P3316.140.090 | 90 | 118 | 114 | 79 | 40 | Ex-Stock |
| P3316.140.125 | 125 | 163 | 135 | 87 | 42 | Ex-Stock |
| P3316.140.180 | 180 | 225 | 195 | 100 | 50 | Ex-Stock |

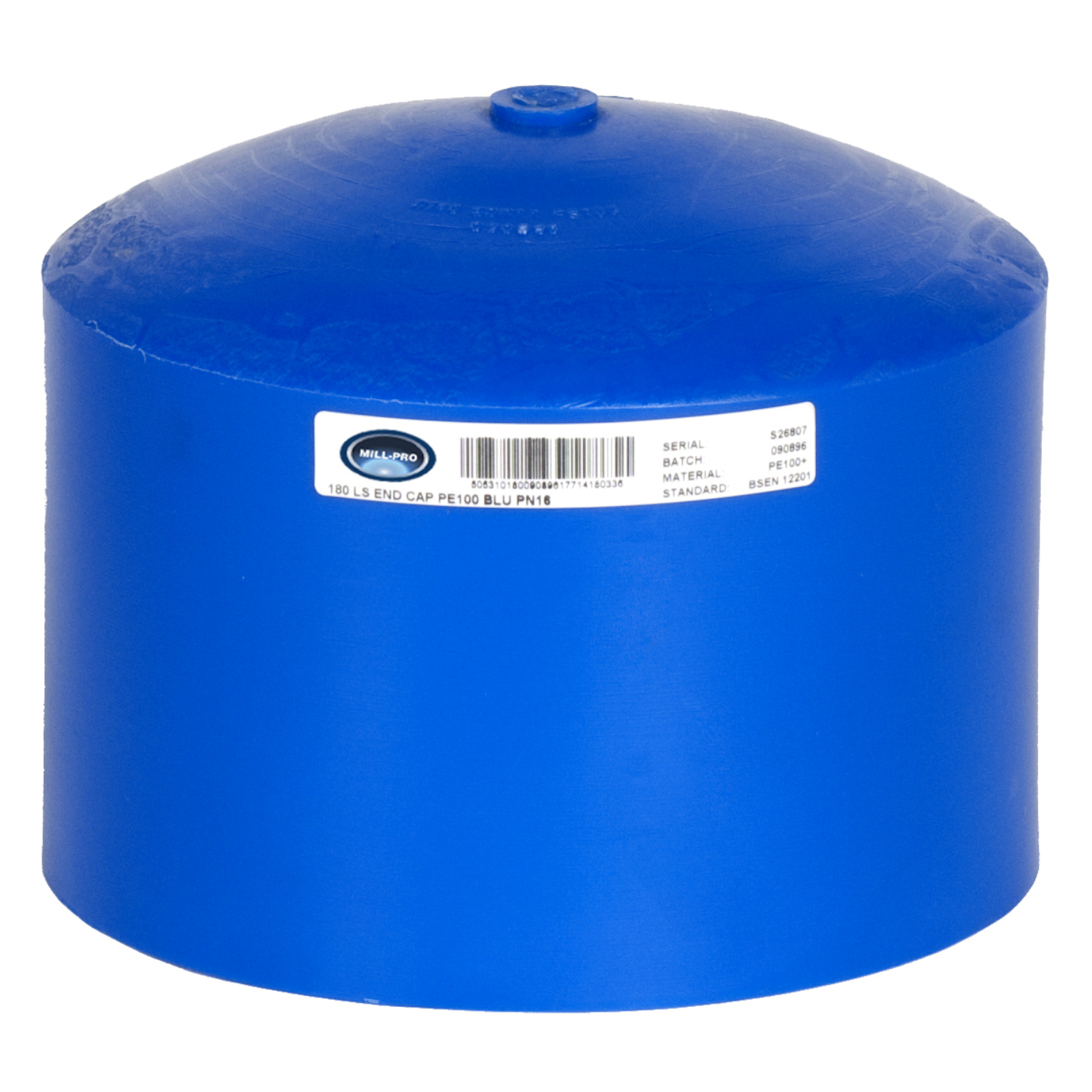

Blue Spigot End Caps / PN16 / SDR11
Mill-Pro PE100 RC Injection moulded spigot end caps feature long spigots for electrofusion or butt fusion joining. Mill-Pro fittings feature hard moulded brand, batch numbers for compliance checking and 1D and 2D bar code stickers for complete product traceability. All elbows are sealed in individual plastic bags for protection on site. Spigot fittings are joined by Electrofusion Couplers or Butt Fusion.
NOTE: The pipe and spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.
| Blue moulded end caps may not always be in stock and may be subject to longer lead times. Alternative options in black moulded or fabricated can be provided. | ||||

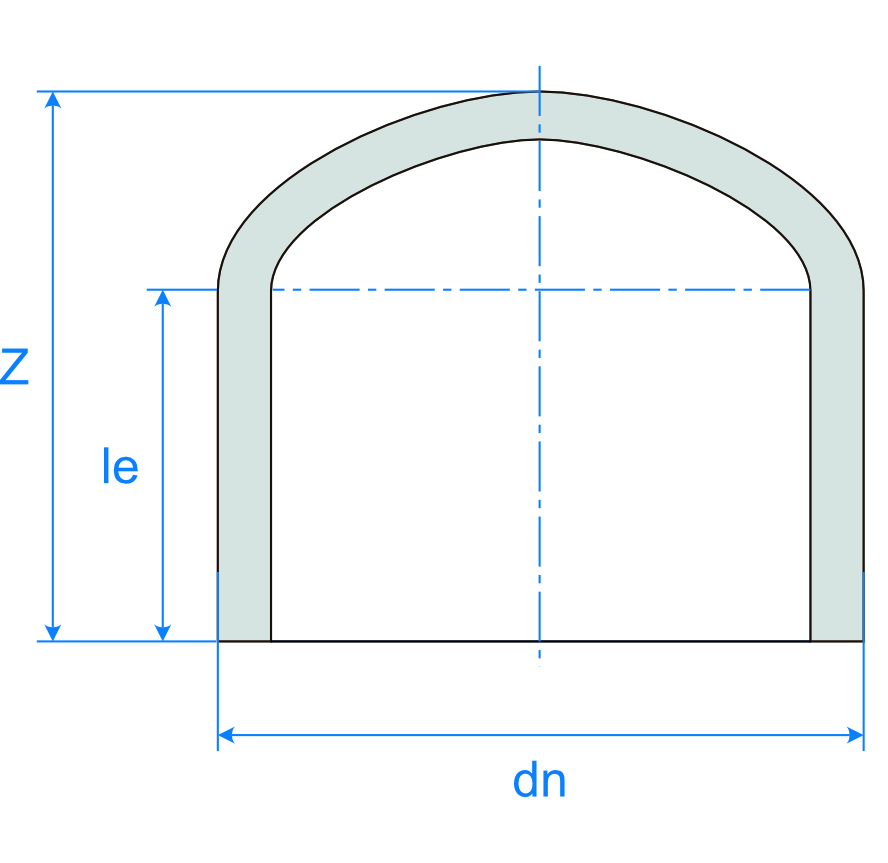

| Product code | dn | le | Z | Availability in Hong Kong |
| P5826.140.032 | 32 | 44 | 53 | Ex-Stock |
| P5826.140.050 | 50 | 56 | 68 | Ex-Stock |
| P5826.140.063 | 63 | 65 | 78 | Ex-Stock |
| P5826.140.090 | 90 | 79 | 95 | Ex-Stock |
| P5826.140.125 | 125 | 88 | 111 | Ex-Stock |
| P5826.140.180 | 180 | 105 | 140 | Ex-Stock |
| P5826.140.250 | 250 | 130 | 160 | Ex-Stock |
| P5826.140.315 | 315 | 150 | 180 | Ex-Stock |
Black End Cap / SP / PN16 / SDR11
Mill-Pro's injection moulded enda caps are manufactured from PE100+ compound according to BS EN 12201-3. They feature long spigots for electrofusion or butt fusion joining and 1D and 2D bar code stickers for complete product traceability. All bends are sealed in individual plastic bags for protection on site.
NOTE: The spigot ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.
| For larger sizes typically a flange adaptor and blank flange are used for end of line termination. | ||||
| Product Code | dn | le | Z | Availability in Hong Kong |
| P5316.140.355 | 355 | 220 | 255 | 4-6 Weeks |
| P5316.140.450 | 450 | 220 | 265 | 4-6 Weeks |
| P5316.140.500 | 500 | 220 | 270 | 4-6 Weeks |
