Black Concentric Reducers

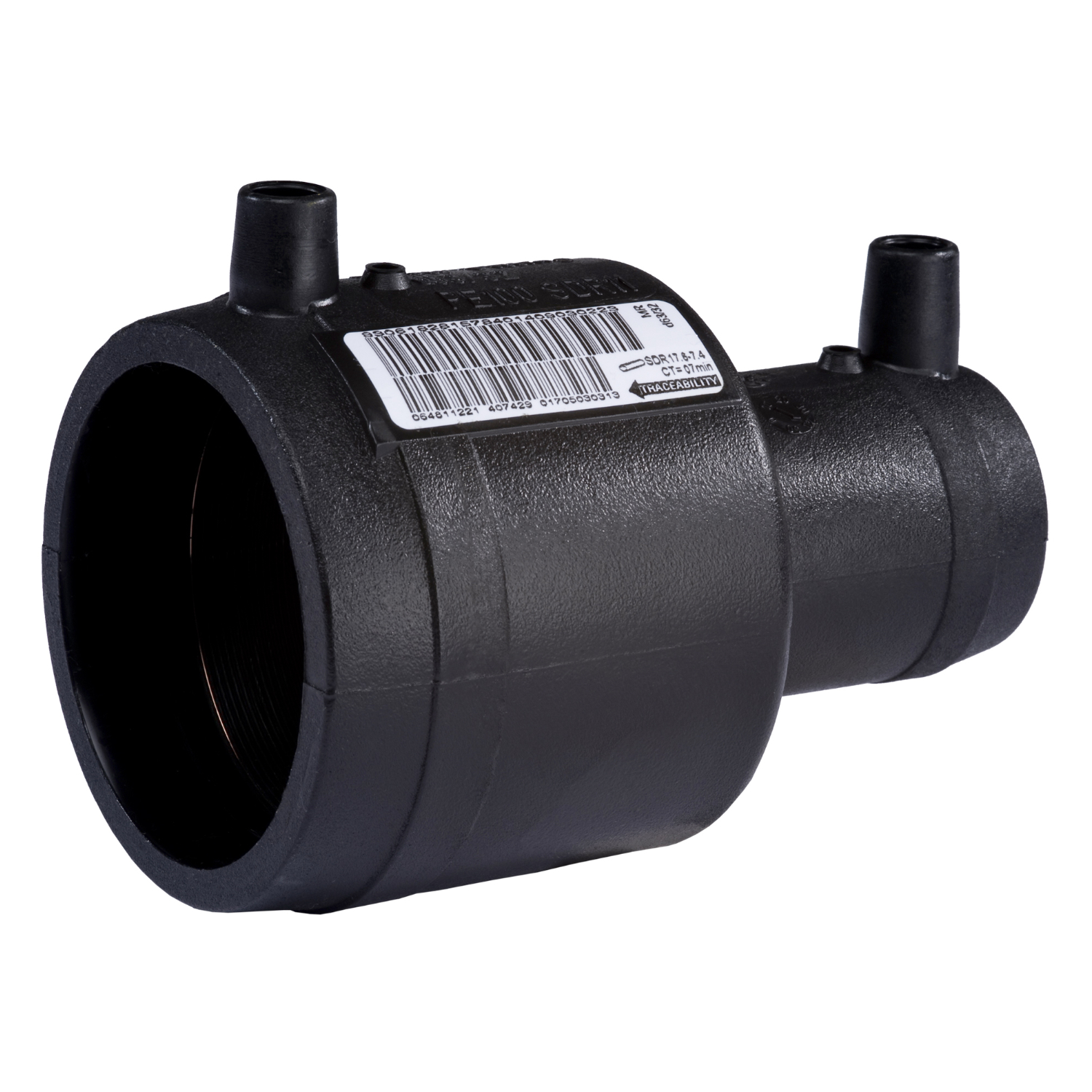

Black Electrofusion Reducer / MR / PN16 / SDR11
Frialen PE100 RC Injection moulded electrofusion reducers are suitable for fusing pipes from SDR11 to SDR17.6 Electrofusion sockets feature all the same performance benefits found in black couplers. All reducers are sealed in individual plastic bags for protection on site.
NOTE: The pipe and socket ends must be prepared in accordance with the general installation instructions using a spigot mechanical peeler, 90% Isopropyl alcohol wipes.
| Subject to the Engineers approval, this product can be used in above-ground PN16 applications that require PN20 fittings for the purpose of thermal de-ration. Socket fittings do not require thermal de-ration as the fitting is reinforced, due to sockets overlapping the spigots. This statement is only applicable for fittings operating at up to PN16 Maximum Operating Pressure. | |||||||||

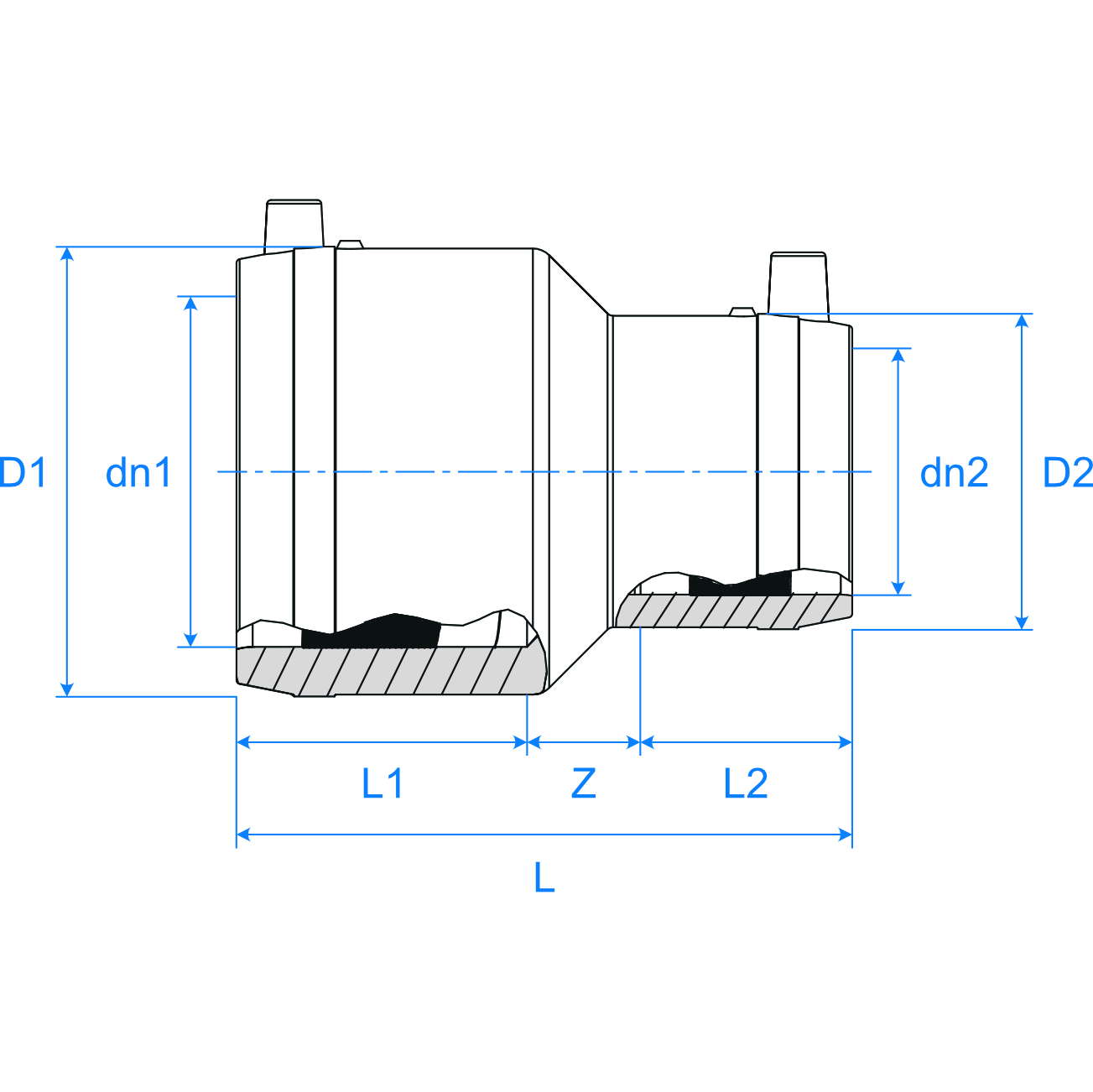

| Product Code | dn1 | dn2 | D1 | D2 | L | L1 | L2 | Z | Availability in Hong Kong |
| P3316.14.032025 | 32 | 25 | 45 | 38 | 88 | 39 | 33 | 16 | 8-12 Weeks |
| P3316.14.050025 | 50 | 25 | 66 | 38 | 107 | 52 | 39 | 16 | 8-12 Weeks |
| P3316.14.050032 | 50 | 32 | 68 | 45 | 110 | 49 | 39 | 22 | 8-12 Weeks |
| P3316.14.063032 | 63 | 32 | 82 | 45 | 125 | 55 | 44 | 26 | 8-12 Weeks |
| P3316.14.063050 | 63 | 50 | 82 | 68 | 125 | 55 | 48 | 22 | 8-12 Weeks |
| P3316.14.090050 | 90 | 50 | 117 | 68 | 160 | 69 | 49 | 42 | 8-12 Weeks |
| P3316.14.090063 | 90 | 63 | 117 | 82 | 160 | 69 | 55 | 36 | 8-12 Weeks |
| P3316.14.110063 | 110 | 63 | 142 | 82 | 160 | 79 | 55 | 26 | 8-12 Weeks |
| P3316.14.110090 | 110 | 90 | 140 | 115 | 180 | 79 | 69 | 32 | 8-12 Weeks |
| P3316.14.125090 | 125 | 90 | 155 | 115 | 200 | 86 | 69 | 45 | 8-12 Weeks |
| P3316.14.125110 | 125 | 110 | 157 | 137 | 202 | 95 | 70 | 37 | 8-12 Weeks |
| P3316.14.160110 | 160 | 110 | 201 | 140 | 230 | 98 | 79 | 53 | 8-12 Weeks |
| P3316.14.180125 | 180 | 125 | 214 | 155 | 275 | 108 | 74 | 93 | 8-12 Weeks |
| P3316.14.225160 | 225 | 160 | 282 | 203 | 270 | 110 | 98 | 62 | 8-12 Weeks |

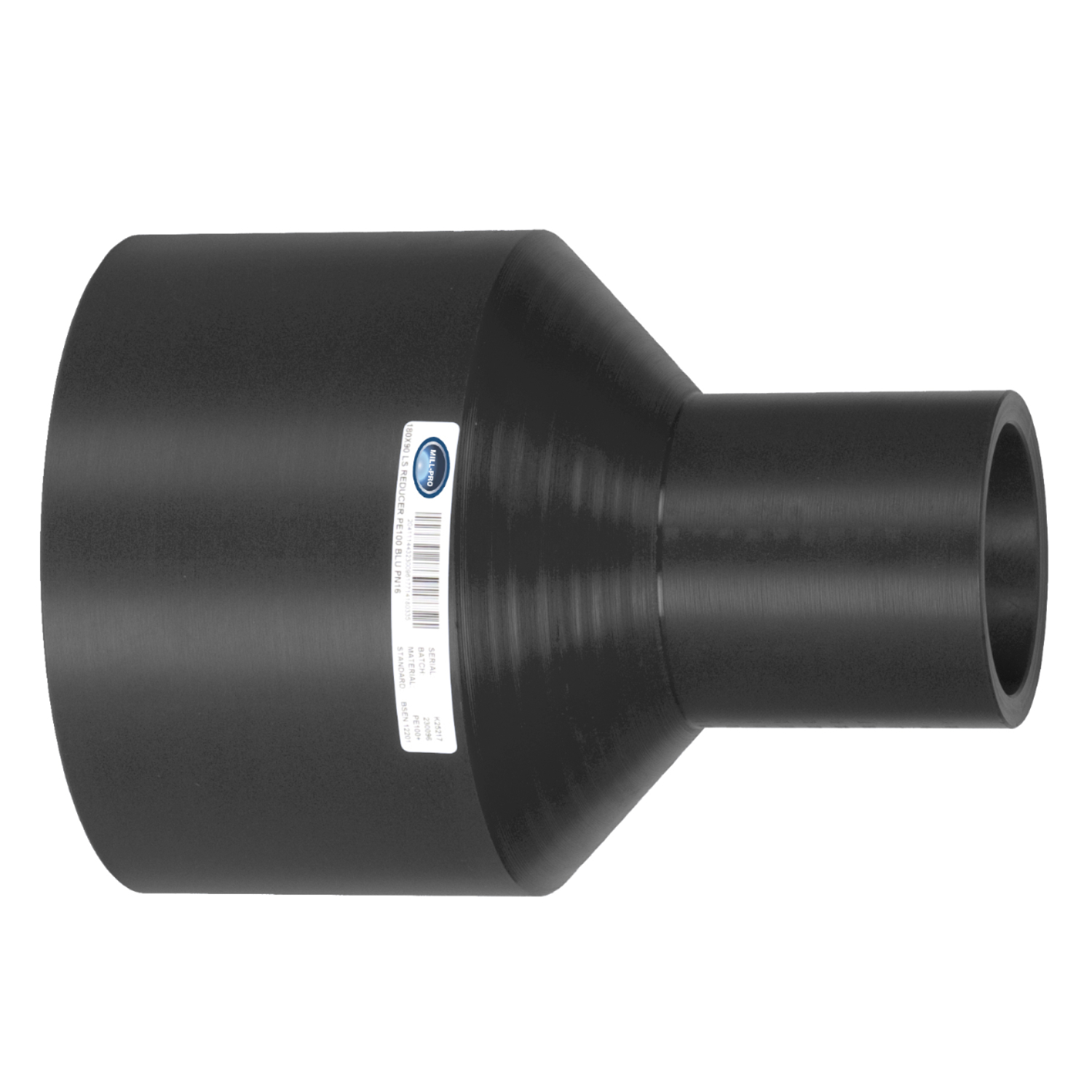

Black Spigot Reducer / PN16 / SDR 11
Mill-Pro PE100 black spigot concentric reducers are either injection moulded or machined from extruded hollow bar with factory butt-welded spigots, for electrofusion joining in larger sizes. Standard sizes are shown below, however, fabricated reducers can be manufactured to any size combination. This allows for significant reductions to be made in any size up to dn1000 in SDR11 and dn2000 in SDR 17. All reducers feature 1D and 2D bar code stickers for complete product traceability and are sealed in individual plastic bags for protection on site.
Listed below are standard reductions, however, we manufacture reductions in any combination of dn1 & dn2.
| For sizes < dn355 typically blue reducers would be used in Hong Kong. | ||||||
| Any reducer can be fabricated. For large step changes and special one-off reducers, contact us. | ||||||

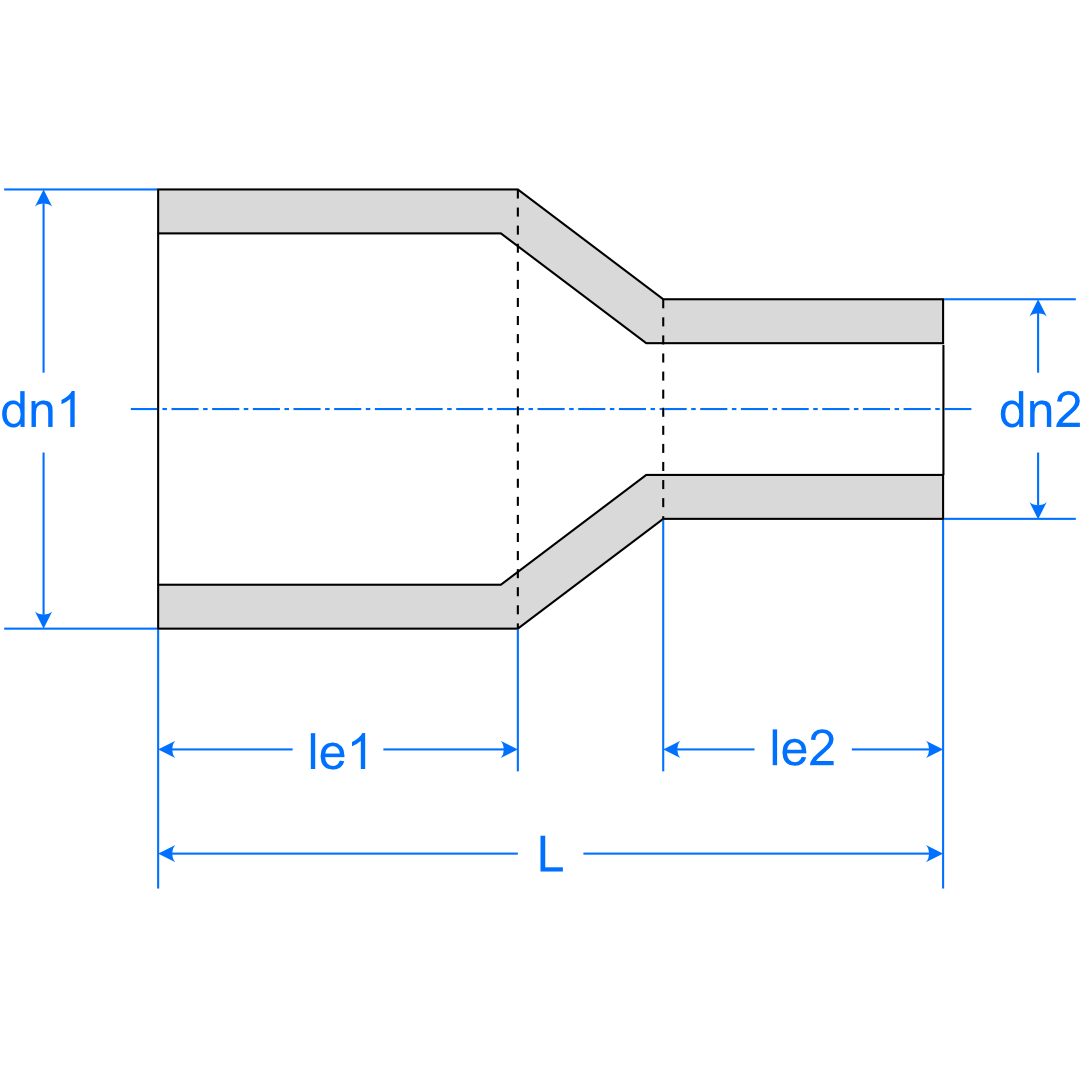

| Product Code | dn1 | dn2 | le1 | le2 | L | Availability in Hong Kong |
| P5316.14.355250 | 355 | 250 | 170 | 130 | 353 | 6-8 Weeks |
| P5316.14.355315 | 355 | 315 | 170 | 155 | 345 | 6-8 Weeks |
| P5316.14.450315 | 450 | 315 | 200 | 155 | 423 | 6-8 Weeks |
| P5316.14.450355 | 450 | 355 | 200 | 170 | 418 | 6-8 Weeks |
| P5316.14.500450 | 500 | 450 | 220 | 200 | 445 | 6-8 Weeks |
| P5316.14.630450 | 630 | 450 | 260 | 200 | 550 | 6-8 Weeks |
| P5316.14.630500 | 630 | 500 | 260 | 220 | 545 | 6-8 Weeks |
| P5316.14.630560 | 630 | 560 | 260 | 240 | 535 | 6-8 Weeks |
| P5316.14.710630 | 710 | 630 | 280 | 260 | 590 | 6-8 Weeks |
| P5316.14.800710 | 800 | 710 | 310 | 280 | 640 | 6-8 Weeks |
