Pushfit Fittings
Pushfit Compression Joint fittings are a fast and easy method to connect small diameter (≤DN/OD 63) PE pipes, with no requirement to tighten external nuts to affect a seal. Simply push the PE pipe into the fitting. The fittings tensile restraint and hydraulic seal on the pipe increase with water pressure and tensile load. This means that the PE pipe will burst or neck before the joint fails. The Talbot Pushfit fitting is pressure rated PN 16. Pushfit fittings do not require de-ration and can be used with PN20 pipes operating at PN16 for above-ground service. They are ideal for connection in flushing water systems to CC419K Red Brass valves to avoid the risk of Galvanic Corrosion.
Pushfit fittings are manufactured from high performance materials for resistance to distortion and corrosion and for strong threaded connections, they have Type 1 pull out resistance according to UK WIS 4-32-11 and have been used in the UK and around the world for more than 40 years. They meet the performance requirements of the following standards;
ISO 3458, 3459, 3501, 3503, DIN 8076, UK WIS 4-23-04, WIS 4-32-11, KIWA BRL 534/03, AS/NZS 4129, BS EN 1254-3 and are WRAS BS6920 approved.
Pushfit PDF product brochure can be downloaded here Product Brochure
Quick assembly PDF instructions can be downloaded here Assembly Instructions
Installation instruction video on YouTube can be viewed here.

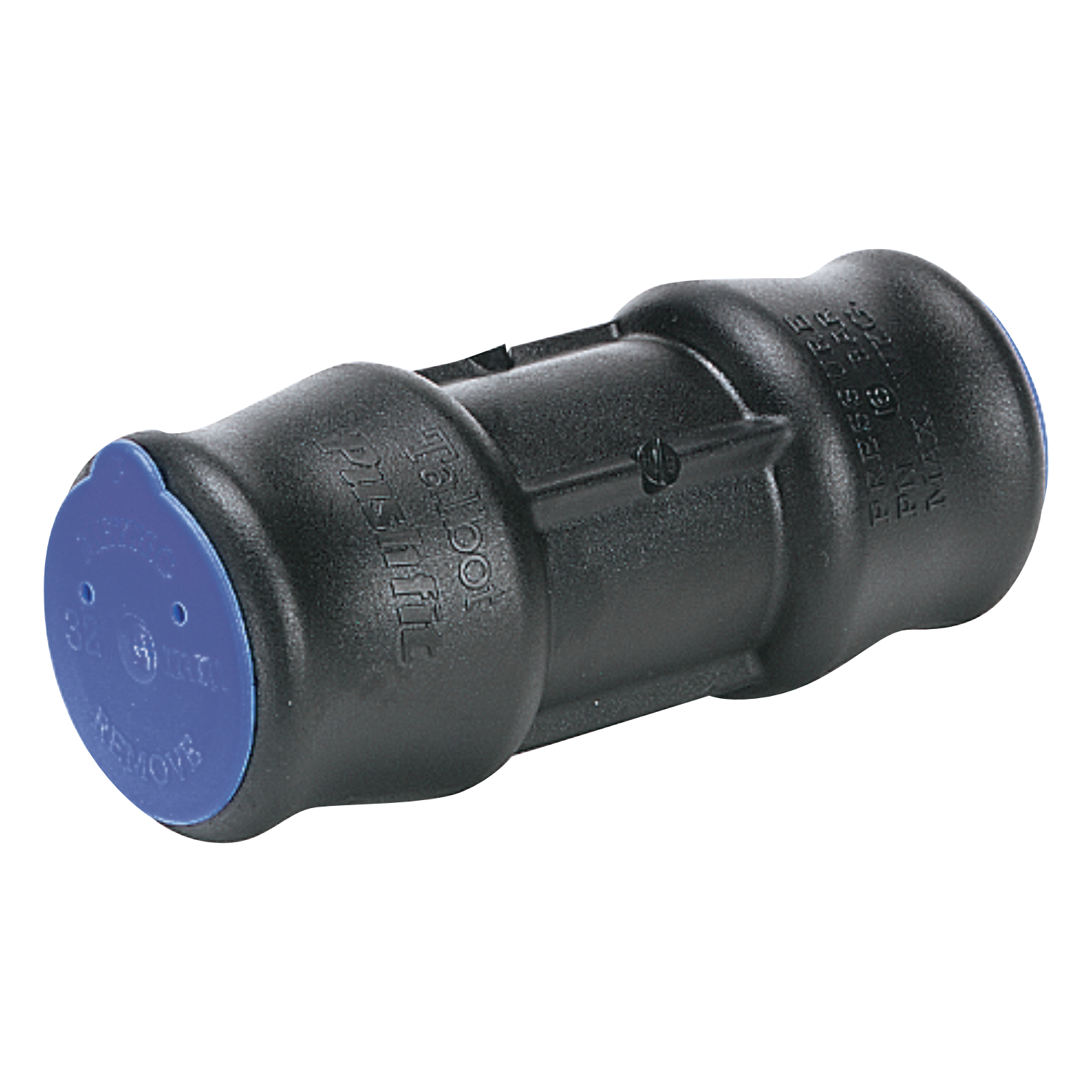

Connectors / PE-PE / PN16
PE to PE connector supplied complete with SDR11 inserts
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
|
Product Code |
dn |
Availability in Hong Kong |
|
P4316.100.025 |
25 |
Ex-Stock |
|
P4316.100.032 |
32 |
Ex-Stock |
|
P4316.100.050 |
50 |
Ex-Stock |
|
P4316.100.063 |
63 |
Ex-Stock |

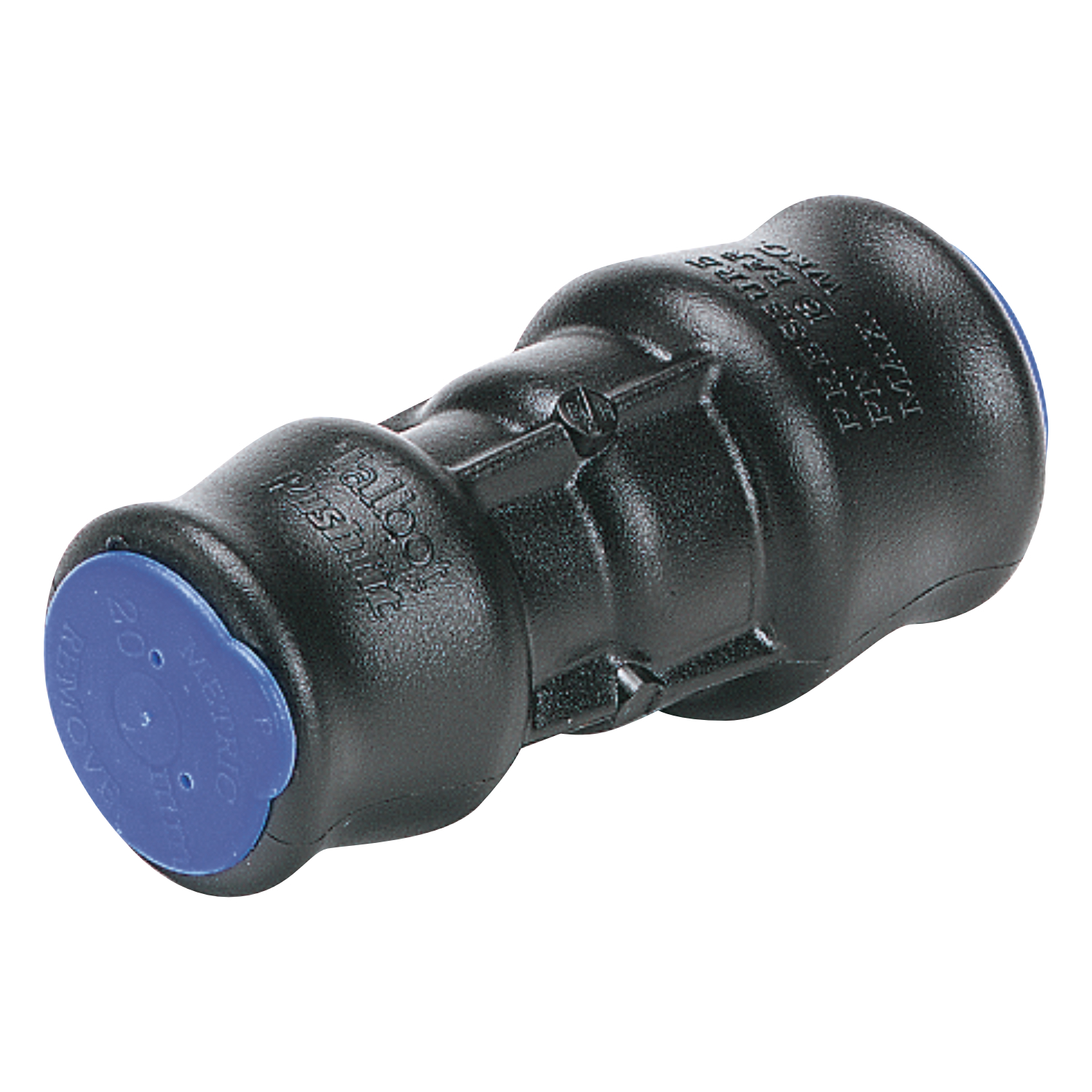

Reducing Connectors / PE-PE / PN16
PE to PE reducing connector supplied complete with SDR11 inserts
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn1 | dn2 | Availability in Hong Kong |
| P4316.14.032025 | 32 | 25 | Ex-Stock |
| P4316.14.050025 | 50 | 25 | Ex-Stock |
| P4316.14.050032 | 50 | 32 | Ex-Stock |
| P4316.14.063025 | 63 | 25 | Ex-Stock |
| P4316.14.063032 | 63 | 32 | Ex-Stock |
| P4316.14.063050 | 63 | 50 | Ex-Stock |
Adaptors / Male / BSP-PE / PN16
BSP threaded male adaptor supplied complete with SDR11 insert, BS EN 10226-1 Tapered threads
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn1 | dn2 | Availability in Hong Kong |
| P4316.51.02584 | 25 | 20 / 3/4" | Ex-Stock |
| P4316.51.03285 | 32 | 25 / 1" | Ex-Stock |
| P4316.51.05087 | 50 | 40 / 1 1/2" | Ex-Stock |
| P4316.51.06388 | 63 | 50 / 2" | Ex-Stock |

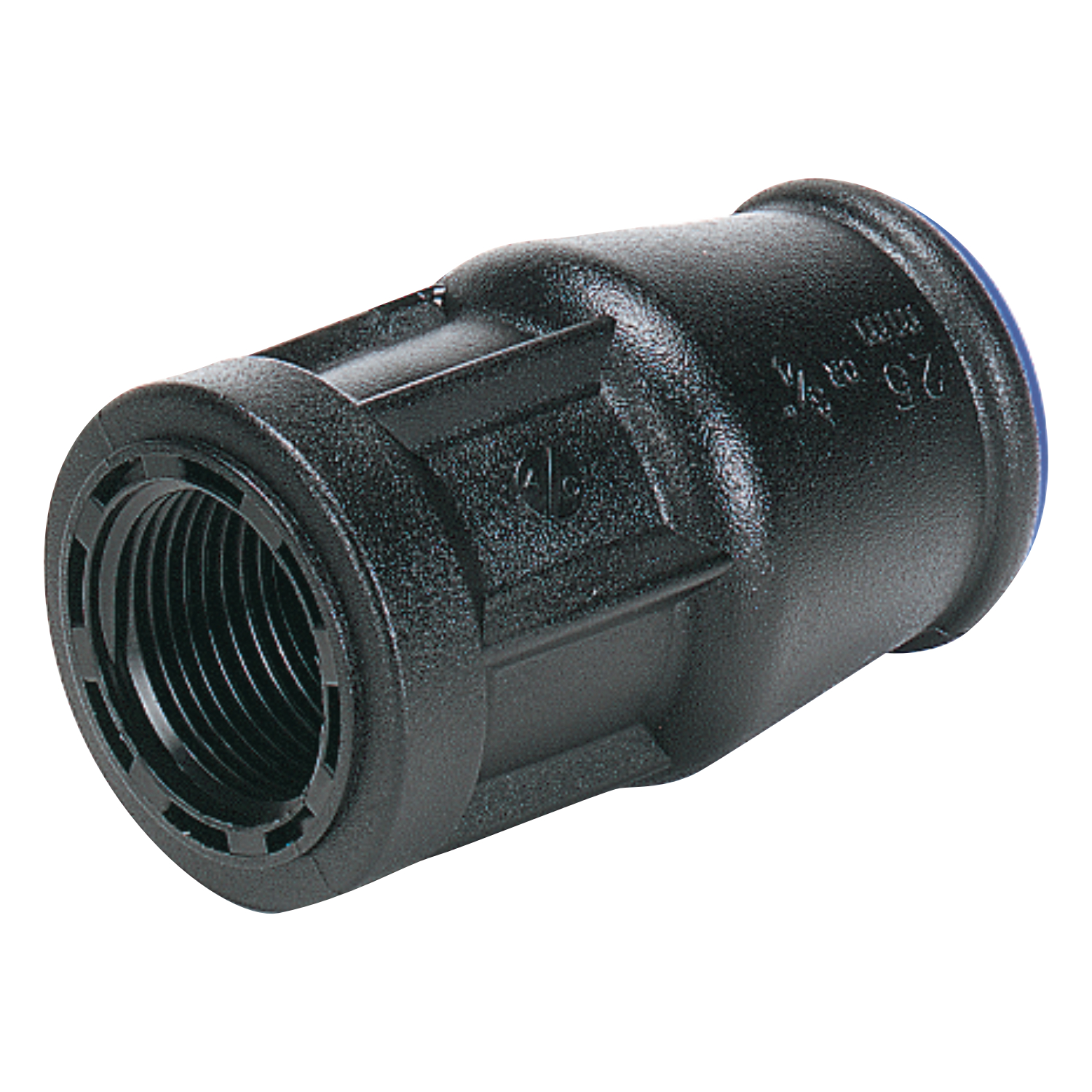

Adaptors / Female / BSP-PE / PN16
BSP threaded female adaptor supplied complete with SDR11 insert, BS EN 10226-1 parallel threads.
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn1 | dn2 | Availability in Hong Kong |
| P4316.53.02584 | 25 | 20 / 3/4" | Ex-Stock |
| P4316.53.03285 | 32 | 25 / 1" | Ex-Stock |
| P4316.53.05087 | 50 | 40 / 1 1/2" | Ex-Stock |
| P4316.53.06388 | 63 | 50 / 2" | Ex-Stock |

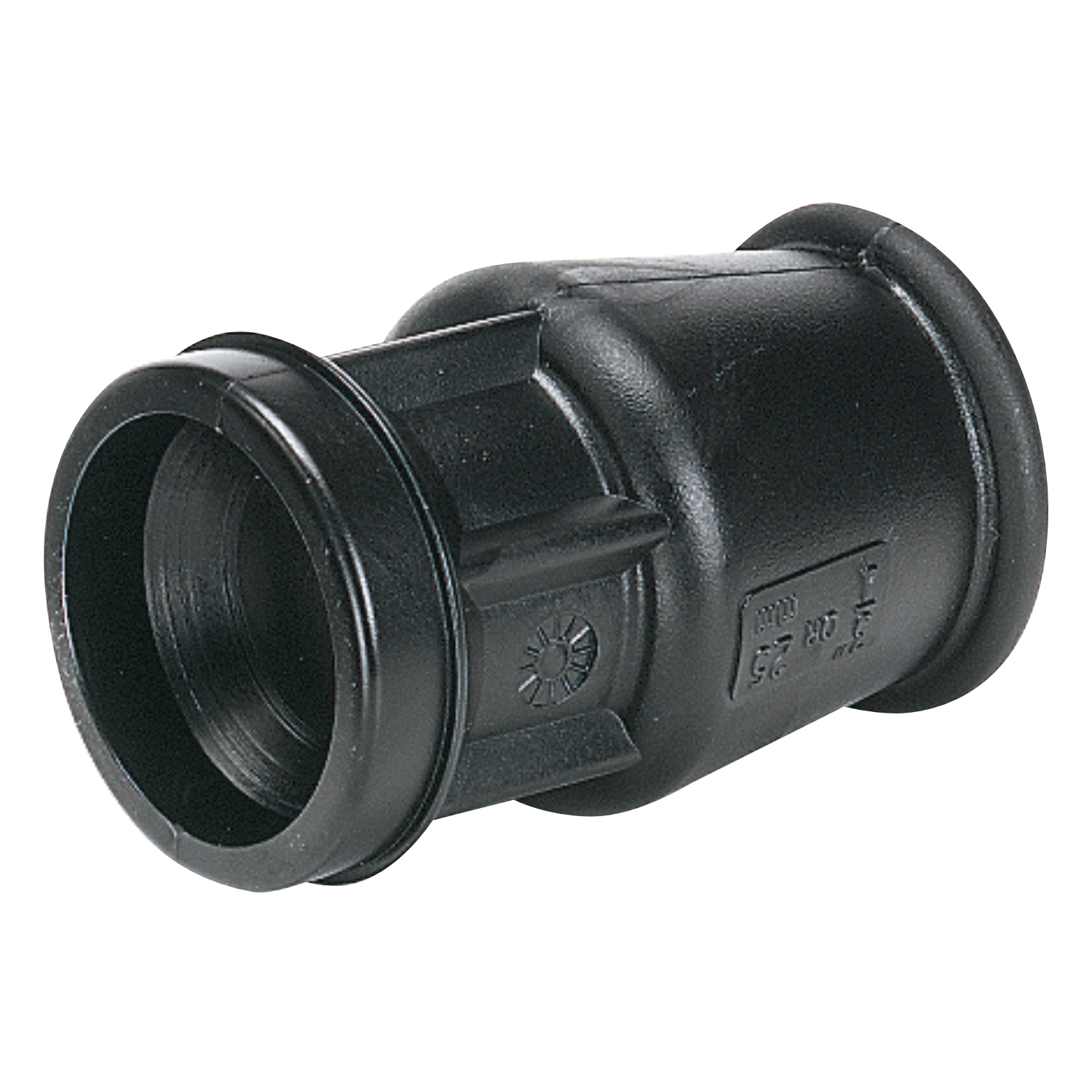

Stop End / PE / PN16
PE pushfit end with a moulded stop for end of service terminations. Supplied complete with SDR11 insert.
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn | Availability in Hong Kong |
| P4316.140.025 | 25 | Ex-Stock |
| P4316.140.032 | 32 | Ex-Stock |
| P4316.140.050 | 50 | Ex-Stock |
| P4316.140.063 | 63 | Ex-Stock |

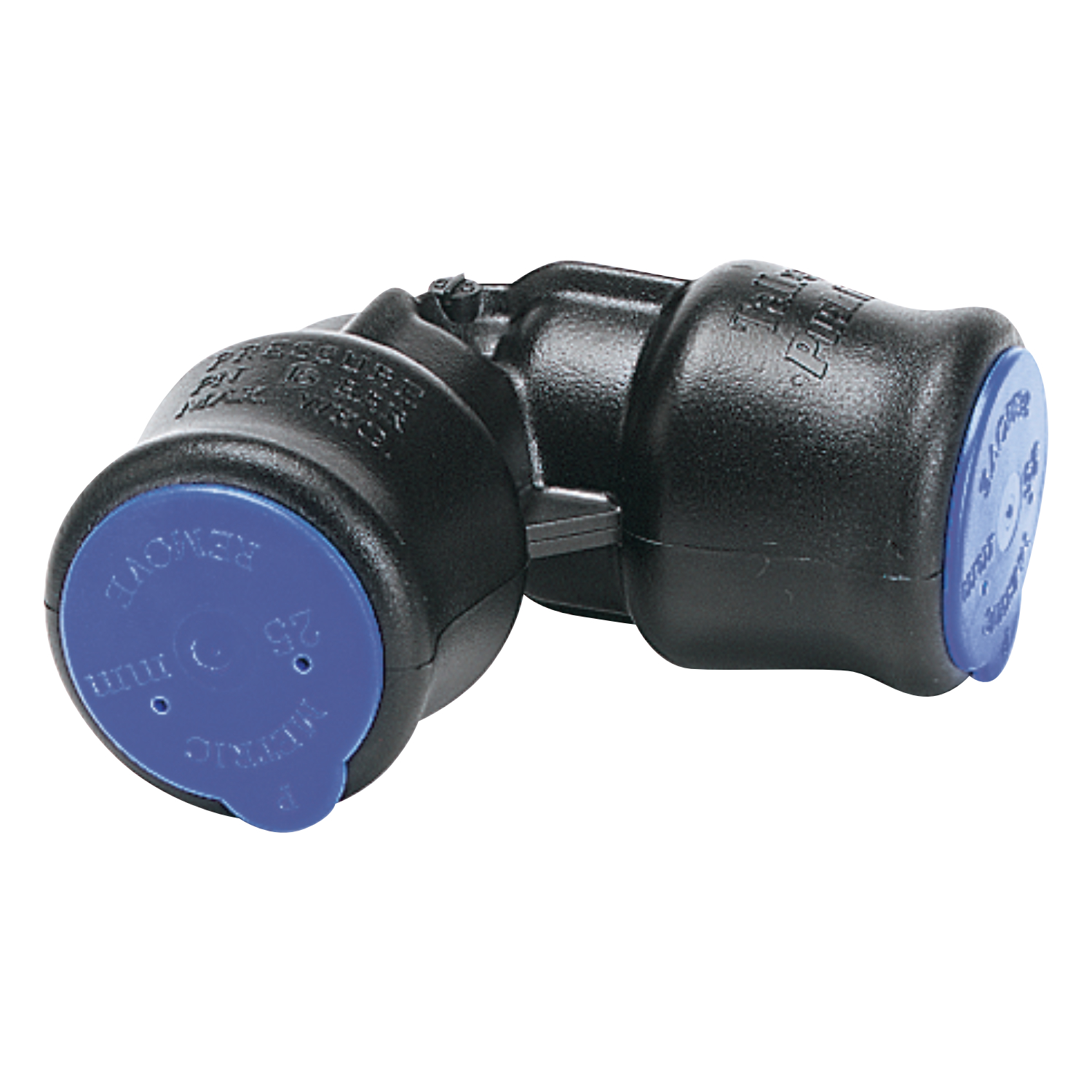

Elbows 90º / PE-PE / PN16
PE pushfit 90º elbow. Supplied complete with SDR11 insert.
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn | Availability in Hong Kong |
| P4316.115.025 | 25 | Ex-Stock |
| P4316.115.032 | 32 | Ex-Stock |
| P4316.115.050 | 50 | Ex-Stock |
| P4316.115.063 | 63 | Ex-Stock |

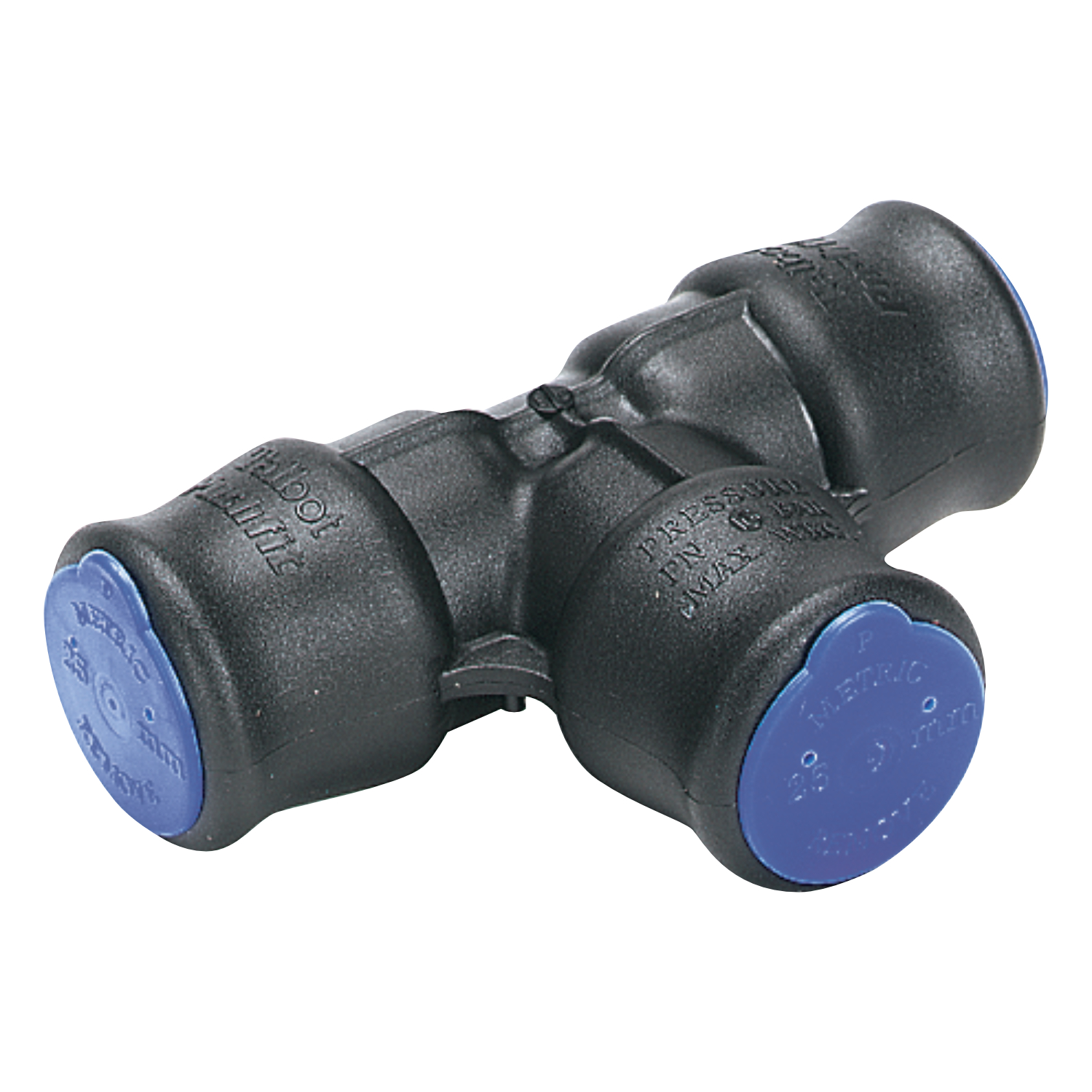

Tee Equal / PE-PE-PE / PN16
PE pushfit Tee. Supplied complete with SDR11 insert.
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn | Availability in Hong Kong |
| P4316.122.025 | 25 | Ex-Stock |
| P4316.122.032 | 32 | Ex-Stock |
| P4316.122.050 | 50 | Ex-Stock |
| P4316.122.063 | 63 | Ex-Stock |

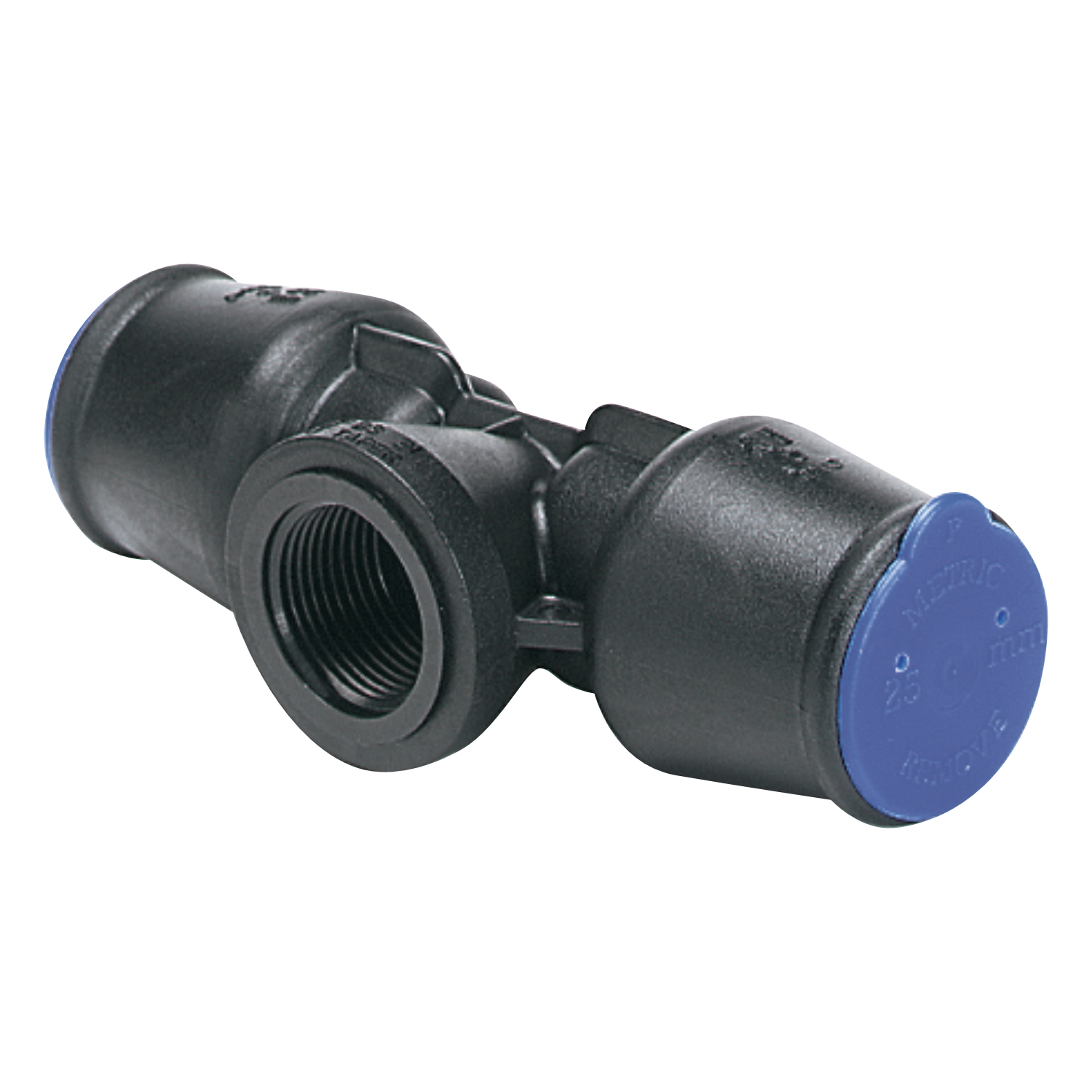

Tee Un Equal / PE-PE-BSP / PN16
PE pushfit reducing Tee. Supplied complete with SDR11 insert.
Pushfit Compression Joint fittings comply with Water Supplies Department WSD PS Appendix 22.09 Clause 5.7. Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn1 | dn2 | Availability in Hong Kong |
| P4316.21.02584 | 25 | 20 / 3/4" | Ex-Stock |
| P4316.21.03285 | 32 | 25 / 1" | Ex-Stock |
| P4316.21.05087 | 50 | 40 / 1 1/2" | Ex-Stock |
| P4316.21.06388 | 63 | 50 / 2" | Ex-Stock |

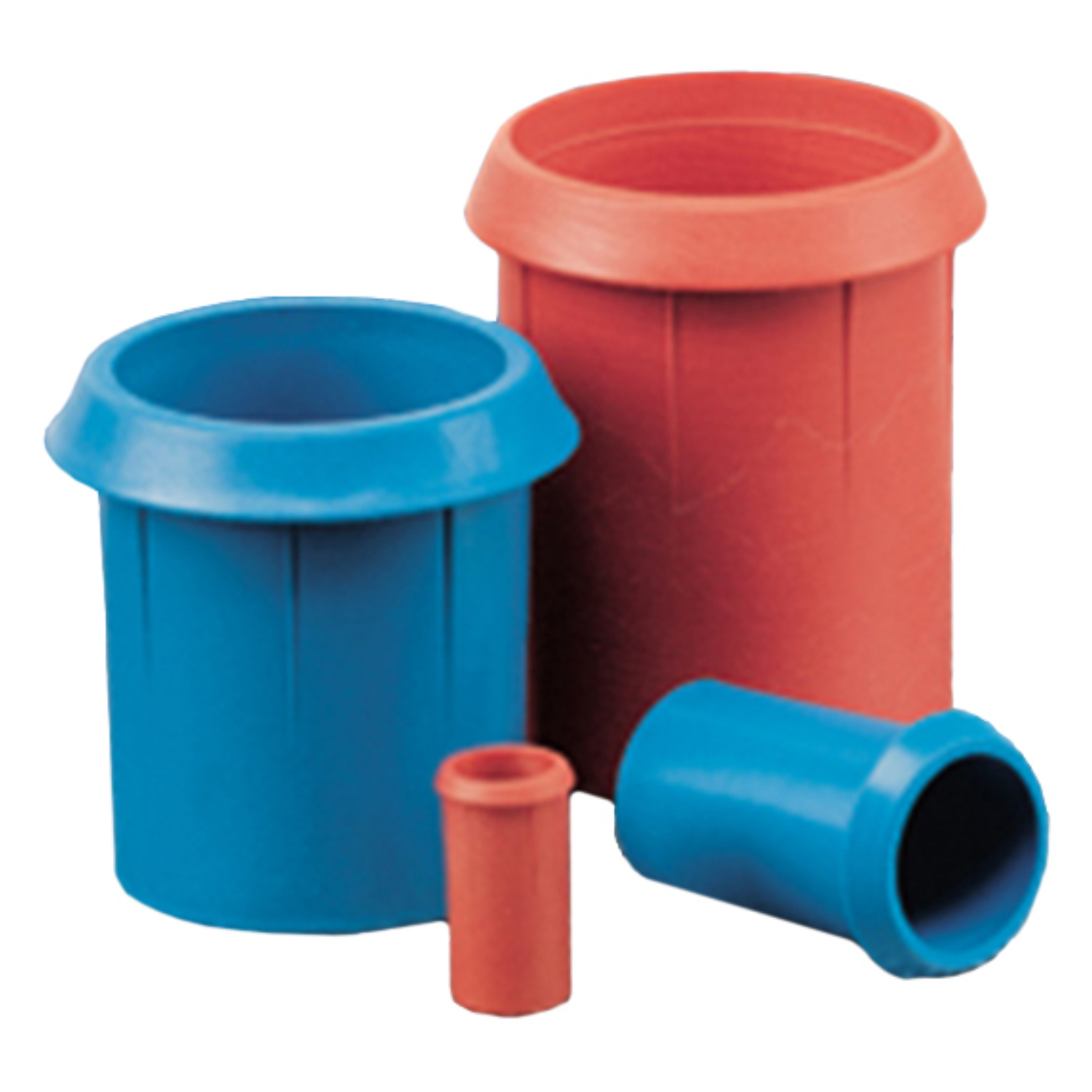

Liners for SDR 11 pipes
Liners are required to be inserted into the pipe ends for pipes SDR11 or greater.
| Product Code | dn | Availability in Hong Kong |
| P8316.00.032 | 25 | Ex-Stock |
| P8316.00.032 | 32 | Ex-Stock |
| P8316.00.050 | 50 | Ex-Stock |
| P8316.00.063 | 63 | Ex-Stock |
