EF Spigot Air Saddles

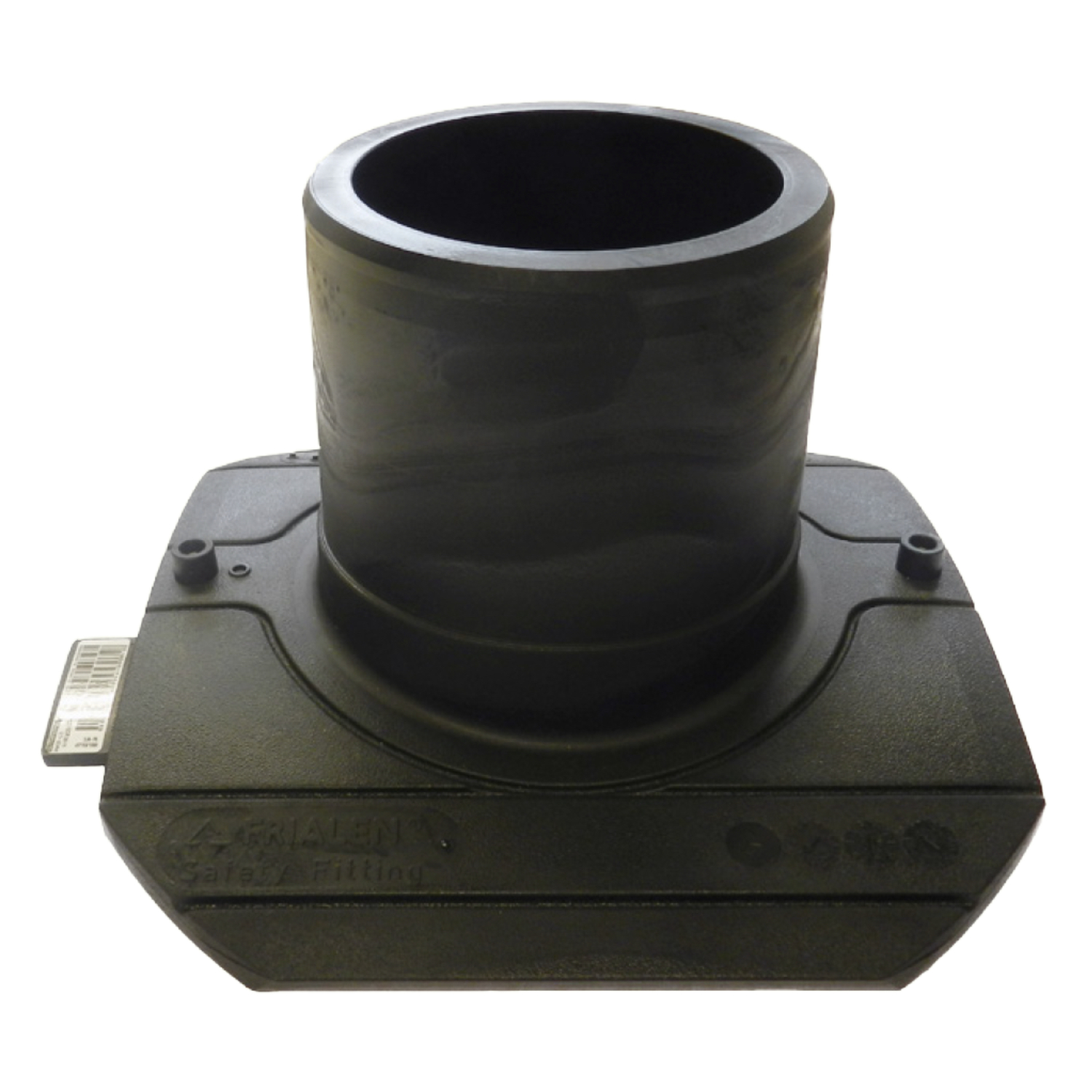

Black Spigot Saddle / SA UNI / PN16 / SDR11
The Friatec SA UNI electrofusion spigot saddles are typically used for attaching air valves via a flanged connection. The SA UNI can be installed during construction or post-construction when the pipeline is under normal operating pressure. Connections can be made 'live' using under pressure tapping equipment. This prevents the main having to be shut down during the installation process.
Pressure test of the saddle after fusion is recommended, before drilling the tapping hole into the main pipe via integrated pressure nozzle and pressure test adaptor - FWDPA.

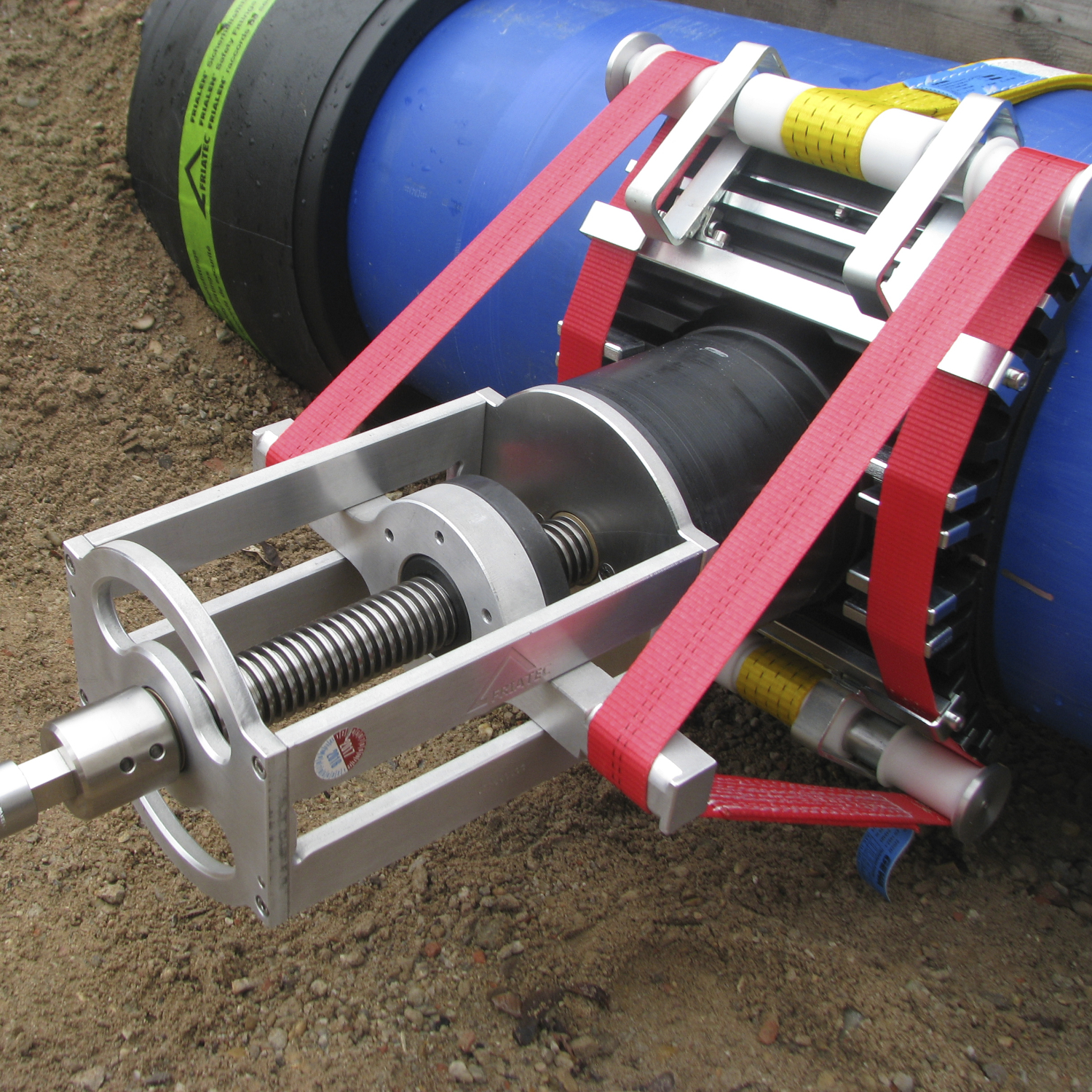

Assembly is conducted using the FRIATOOLS clamping unit UNITOP. Tapping in the unpressurised condition can be achieved using the correct size hole saw.
The transition to the flange for connecting the isolations valve and air valve assembly is made using a standard Coupler and Flange adaptor onto the saddles spigot outlet.
NOTE: The pipe surface must be prepared in accordance with the general installation instructions using a mechanical saddle peeler, 90% Isopropyl alcohol wipes and we recommend using the Friamat fusion control unit to achieve correct preheating and logging the full range of weld data available.
| Larger DN150 (DN/OD 160) saddle offtakes with a DN150 / 160 OD flange adaptor are available on request. | ||||||||
| Product Code | dn1 | dn2 | L1 | L2 | le | Z | da | Availability in Hong Kong |
| P3316.187.250-28090 | 250-280 | 90 | 260 | 279 | 79 | 130 | 66 | 8-12 weeks |
| P3316.187.250-280110 | 250-280 | 110 | 260 | 279 | 82 | 140 | 82 | 8-12 weeks |
| P3316.187.250-280125 | 250-280 | 125 | 260 | 279 | 87 | 146 | 94 | 8-12 weeks |
| P3316.187.250-280160 | 250-280 | 160 | 260 | 279 | 98 | 158 | 123 | 8-12 weeks |
| P3316.187.315-40090 | 315-400 | 90 | 280 | 279 | 79 | 130 | 66 | 8-12 weeks |
| P3316.187.315-400110 | 315-400 | 110 | 280 | 279 | 82 | 140 | 82 | 8-12 weeks |
| P3316.187.315-400125 | 315-400 | 125 | 280 | 279 | 87 | 146 | 94 | 8-12 weeks |
| P3316.187.315-400160 | 315-400 | 160 | 280 | 279 | 98 | 158 | 123 | 8-12 weeks |
| P3316.187.450-80090 | 450-800 | 90 | 307 | 279 | 79 | 130 | 66 | 8-12 weeks |
| P3316.187.450-800110 | 450-800 | 110 | 307 | 279 | 82 | 140 | 82 | 8-12 weeks |
| P3316.187.450-800125 | 450-800 | 125 | 307 | 279 | 87 | 146 | 94 | 8-12 weeks |
| P3316.187.450-800160 | 450-800 | 160 | 307 | 279 | 98 | 158 | 123 | 8-12 weeks |
Black Spigot Saddle / SA XL / PN16 / SDR11
The Friatec SA XL electrofusion spigot saddles are used for making large diameter offtakes (up to dn355) on large diameter PE mains up to dn1200. In sewer rising mains these fitting would be used to install additional CCTV inspection points, or an inverted offtake for a drain scour, after the line is commissioned.
The SA XL can be installed during construction or post-construction when the pipeline is under normal operating pressure. Connections can be made 'live' using under pressure tapping equipment. This prevents the main having to be shut down during the installation process.
Pressure testing of the saddle after fusion is recommended, before drilling the tapping hole into the main pipe.
Assembly is conducted using a FRIATOOLS vacuum pump and the corresponding FRIATOOLS plunger. The vacuum unit sucks the saddle down onto the surface of the pipe providing the necessary force to achieve optimal electrofusion to the pipe surface. Tapping in the unpressurised condition can be achieved using the correct size hole saw.
| Product Code | dn1 | dn2 | da | h | L1 | L2 | le | Z1 | Availability in Hong Kong |
| P3316.187.400225 | 400 | 225 | 172 | 263 | 530 | 403 | 210 | 483 | 8-12 weeks |
| P3316.187.400250 | 400 | 250 | 187 | 261 | 530 | 417 | 210 | 483 | 8-12 weeks |
| P3316.187.450225 | 450 | 225 | 172 | 267 | 530 | 421 | 210 | 530 | 8-12 weeks |
| P3316.187.450250 | 450 | 250 | 187 | 272 | 530 | 426 | 210 | 530 | 8-12 weeks |
| P3316.187.500225 | 500 | 225 | 172 | 265 | 530 | 388 | 210 | 521 | 8-12 weeks |
| P3316.187.500250 | 500 | 250 | 187 | 263 | 530 | 380 | 210 | 521 | 8-12 weeks |
| P3316.187.500280 | 500 | 280 | 225 | 265 | 590 | 388 | 210 | 521 | 8-12 weeks |
| P3316.187.500315 | 500 | 315 | 254 | 268 | 590 | 446 | 210 | 573 | 8-12 weeks |
| P3316.187.560225 | 560 | 225 | 172 | 263 | 530 | 402 | 210 | 577 | 8-12 weeks |
| P3316.187.560250 | 560 | 250 | 187 | 263 | 530 | 398 | 210 | 577 | 8-12 weeks |
| P3316.187.560280 | 560 | 280 | 225 | 265 | 590 | 404 | 210 | 577 | 8-12 weeks |
| P3316.187.560315 | 560 | 315 | 254 | 268 | 590 | 402 | 210 | 564 | 8-12 weeks |
| P3316.187.560355 | 560 | 355 | 286 | 260 | 630 | 451 | 210 | 618 | 8-12 weeks |
| P3316.187.560400 | 560 | 400 | 322 | 260 | 630 | 451 | 210 | 618 | 8-12 weeks |
| P3316.187.630225 | 630 | 225 | 172 | 265 | 530 | 422 | 210 | 634 | 8-12 weeks |
| P3316.187.630250 | 630 | 250 | 187 | 267 | 530 | 419 | 210 | 634 | 8-12 weeks |
| P3316.187.630280 | 630 | 280 | 225 | 263 | 590 | 420 | 210 | 634 | 8-12 weeks |
| P3316.187.630315 | 630 | 315 | 254 | 265 | 590 | 417 | 210 | 621 | 8-12 weeks |
| P3316.187.630355 | 630 | 355 | 286 | 269 | 630 | 422 | 220 | 616 | 8-12 weeks |
| P3316.187.630400 | 630 | 400 | 322 | 267 | 630 | 419 | 220 | 616 | 8-12 weeks |
| P3316.187.710225 | 710 | 225 | 172 | 270 | 530 | 447 | 210 | 712 | 8-12 weeks |
| P3316.187.710250 | 710 | 250 | 187 | 265 | 530 | 437 | 210 | 712 | 8-12 weeks |
| P3316.187.710280 | 710 | 280 | 225 | 268 | 590 | 445 | 210 | 712 | 8-12 weeks |
| P3316.187.710315 | 710 | 315 | 254 | 268 | 590 | 439 | 210 | 694 | 8-12 weeks |
| P3316.187.710355 | 710 | 355 | 286 | 285 | 630 | 457 | 220 | 694 | 8-12 weeks |
| P3316.187.710400 | 710 | 400 | 322 | 275 | 630 | 447 | 220 | 694 | 8-12 weeks |
| P3316.187.800225 | 800 | 225 | 172 | 270 | 530 | 381 | 210 | 643 | 8-12 weeks |
| P3316.187.800250 | 800 | 250 | 187 | 275 | 530 | 384 | 210 | 643 | 8-12 weeks |
| P3316.187.800280 | 800 | 280 | 225 | 268 | 590 | 382 | 210 | 643 | 8-12 weeks |
| P3316.187.800315 | 800 | 315 | 254 | 268 | 590 | 377 | 210 | 629 | 8-12 weeks |
| P3316.187.800355 | 800 | 355 | 286 | 290 | 630 | 483 | 220 | 772 | 8-12 weeks |
| P3316.187.800400 | 800 | 400 | 322 | 275 | 630 | 468 | 220 | 772 | 8-12 weeks |
| P3316.187.900225 | 900 | 225 | 172 | 268 | 530 | 396 | 210 | 714 | 8-12 weeks |
| P3316.187.900250 | 900 | 250 | 187 | 278 | 530 | 402 | 210 | 714 | 8-12 weeks |
| P3316.187.900280 | 900 | 280 | 225 | 268 | 590 | 396 | 210 | 714 | 8-12 weeks |
| P3316.187.900315 | 900 | 315 | 254 | 269 | 590 | 393 | 210 | 700 | 8-12 weeks |
| P3316.187.900355 | 900 | 355 | 286 | 305 | 630 | 429 | 220 | 700 | 8-12 weeks |
| P3316.187.900400 | 900 | 400 | 322 | 275 | 630 | 399 | 220 | 700 | 8-12 weeks |
| P3316.187.1000160 | 1000 | 160 | 123 | 300 | 530 | 390 | 249 | 654 | 8-12 weeks |
| P3316.187.1000225 | 1000 | 225 | 172 | 270 | 530 | 396 | 210 | 653 | 8-12 weeks |
| P3316.187.1000250 | 1000 | 250 | 187 | 280 | 530 | 366 | 210 | 653 | 8-12 weeks |
| P3316.187.1000280 | 1000 | 280 | 225 | 270 | 590 | 361 | 210 | 653 | 8-12 weeks |
| P3316.187.1000315 | 1000 | 315 | 254 | 270 | 590 | 358 | 210 | 642 | 8-12 weeks |
| P3316.187.1000355 | 1000 | 355 | 286 | 305 | 630 | 444 | 220 | 774 | 8-12 weeks |
| P3316.187.1000400 | 1000 | 400 | 322 | 278 | 630 | 417 | 220 | 774 | 8-12 weeks |
| P3316.187.1200160 | 1200 | 160 | 123 | 300 | 530 | 375 | 250 | 655 | 8-12 weeks |
| P3316.187.1200225 | 1200 | 225 | 172 | 270 | 530 | 346 | 210 | 655 | 8-12 weeks |
| P3316.187.1200250 | 1200 | 250 | 187 | 280 | 530 | 354 | 210 | 655 | 8-12 weeks |
| P3316.187.1200280 | 1200 | 280 | 225 | 270 | 590 | 345 | 210 | 655 | 8-12 weeks |
| P3316.187.1200315 | 1200 | 315 | 254 | 270 | 590 | 343 | 210 | 645 | 8-12 weeks |
| P3316.187.1200355 | 1200 | 355 | 286 | 305 | 630 | 413 | 220 | 759 | 8-12 weeks |
| P3316.187.1200400 | 1200 | 400 | 322 | 278 | 630 | 385 | 220 | 759 | 8-12 weeks |
Black Spigot Saddle / SA XL / PN10 / SDR17
| Product Code | dn1 | dn2 | da | h | L1 | L2 | le | Z1 | Availability in Hong Kong |
| P3314.187.1000160 | 1000 | 160 | 123 | 300 | 530 | 390 | 249 | 654 | 8-12 weeks |
| P3314.187.1200160 | 1200 | 160 | 123 | 300 | 530 | 375 | 250 | 655 | 8-12 weeks |
Black Spigot Saddle / SA / PN16 / SDR11
The Friatec SA electrofusion spigot saddles with bolt-on underpart can be installed during construction or post-construction when the pipeline is under normal operating pressure. Connections can be made 'live' using under pressure tapping equipment. This prevents the main having to be shut down during the installation process.
Pressure testing of the saddle after fusion is recommended, before drilling the tapping hole into the main pipe.
Friatec spigot offtake saddle Installation can be either during construction or post-construction when the pipeline is under normal operating pressure. This prevents the main having to be shut down during the installation process.
| Product Code | dn1 | dn2 | L1 | L2 | le | Z1 | Availability in Hong Kong |
| P3316.083.110050 | 110 | 50 | 180 | 178 | 60 | 132 | 8-12 weeks |
| P3316.083.110063 | 110 | 63 | 180 | 178 | 81 | 150 | 8-12 weeks |
| P3316.083.110090 | 110 | 90 | 180 | 165 | 79 | 115 | 8-12 weeks |
| P3316.083.125063 | 125 | 63 | 185 | 190 | 63 | 109 | 8-12 weeks |
| P3316.083.125090 | 125 | 90 | 185 | 185 | 79 | 116 | 8-12 weeks |
| P3316.083.125110 | 125 | 110 | 185 | 185 | 82 | 116 | 8-12 weeks |
| P3316.083.160063 | 160 | 63 | 265 | 223 | 63 | 126 | 8-12 weeks |
| P3316.083.160090 | 160 | 90 | 265 | 223 | 79 | 140 | 8-12 weeks |
| P3316.083.160110 | 160 | 110 | 265 | 223 | 82 | 140 | 8-12 weeks |
| P3316.083.160125 | 160 | 125 | 265 | 223 | 87 | 140 | 8-12 weeks |
| P3316.083.180063 | 180 | 63 | 195 | 240 | 63 | 100 | 8-12 weeks |
| P3316.083.180090 | 180 | 90 | 285 | 241 | 79 | 116 | 8-12 weeks |
| P3316.083.180110 | 180 | 110 | 285 | 241 | 82 | 136 | 8-12 weeks |
| P3316.083.180125 | 180 | 125 | 285 | 241 | 87 | 141 | 8-12 weeks |
| P3316.083.200063 | 200 | 63 | 195 | 250 | 63 | 109 | 8-12 weeks |
| P3316.083.225063 | 225 | 63 | 195 | 255 | 63 | 109 | 8-12 weeks |
| P3316.083.225090 | 225 | 90 | 279 | 284 | 79 | 130 | 8-12 weeks |
| P3316.083.225110 | 225 | 110 | 279 | 284 | 82 | 140 | 8-12 weeks |
| P3316.083.225125 | 225 | 125 | 279 | 284 | 87 | 146 | 8-12 weeks |
| P3316.083.225160 | 225 | 160 | 279 | 284 | 98 | 157 | 8-12 weeks |

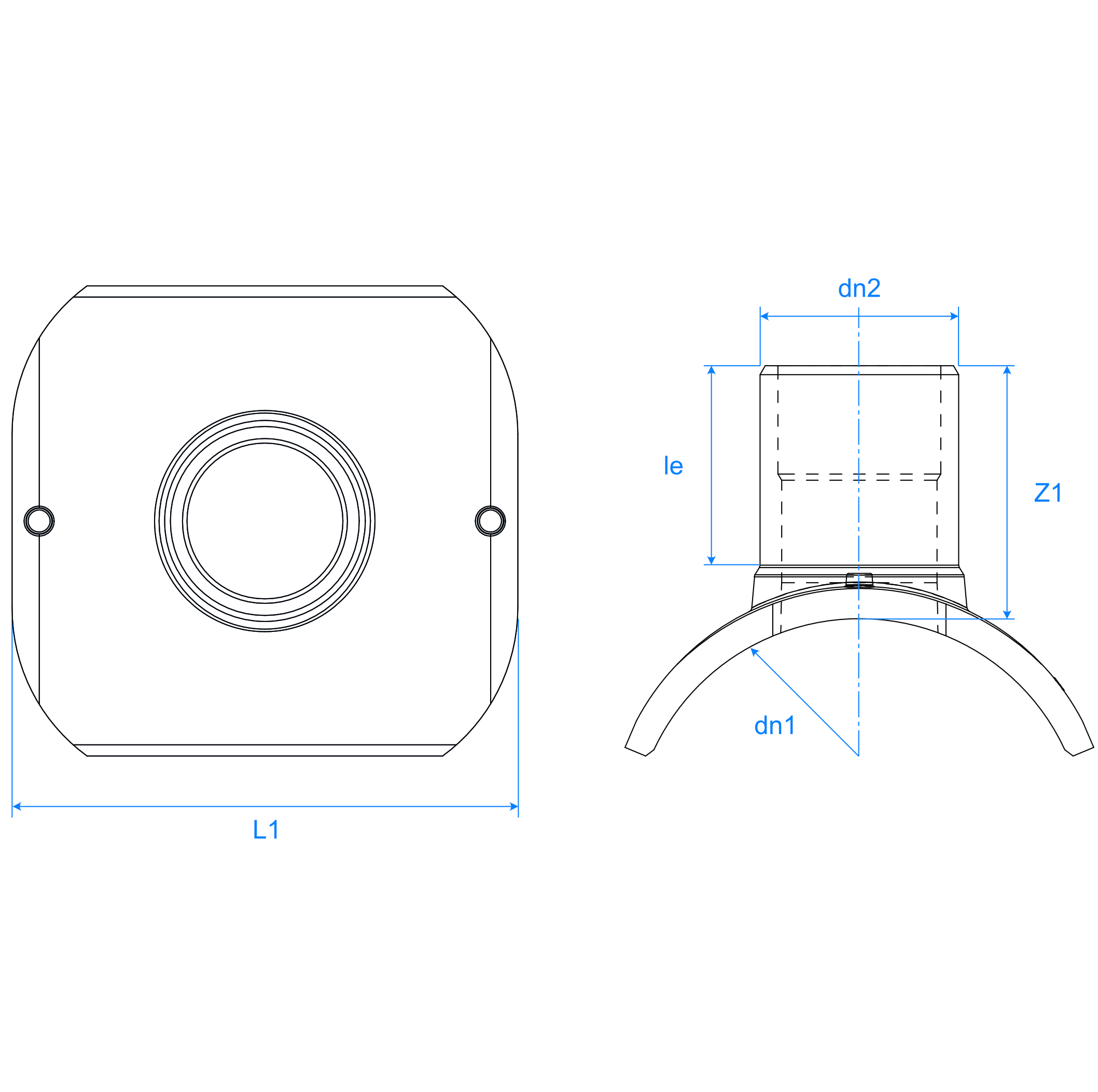

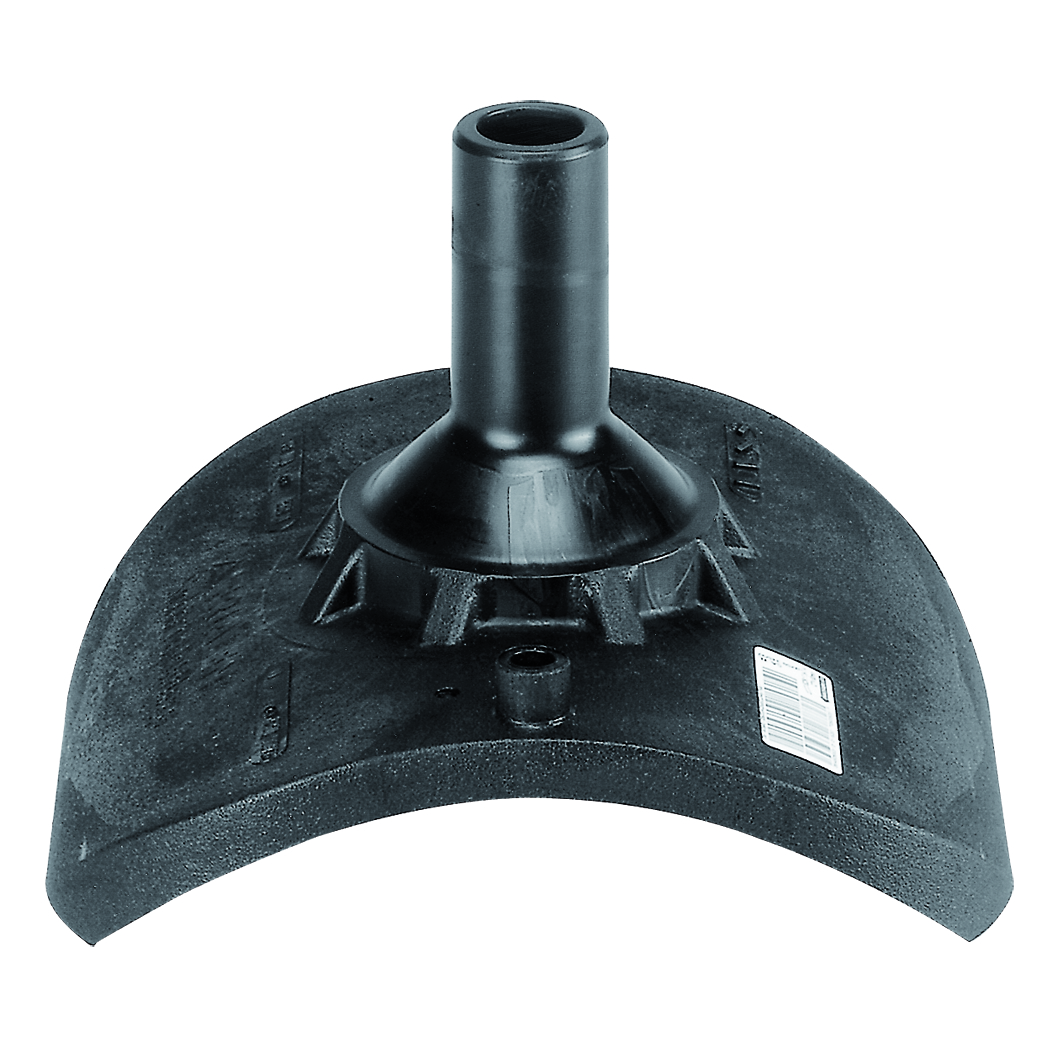

Black Spigot Saddle / SA TL / PN16 / SDR11
Suitable for all pipe diameters in the given range by means of the FRIALENFRIATOP Clamping Unit. Compact fitting in HD-PE. Saddle with exposed heating element for optimal heat transfer and outlet spigot for use with FRIALEN-couplers MB or UB.
| Product Code | dn1 | dn2 | L1 | le | Z1 | Availability in Hong Kong |
| P3316.187.250-560032 | 250-560 | 32 | 200 | 42 | 109 | 8-12 Weeks |
| P3316.187.250-560063 | 250-560 | 63 | 200 | 56 | 109 | 8-12 Weeks |
| P3316.187.250-560090 | 250-560 | 90 | 200 | 80 | 111 | 8-12 Weeks |
