Moulded Elbows

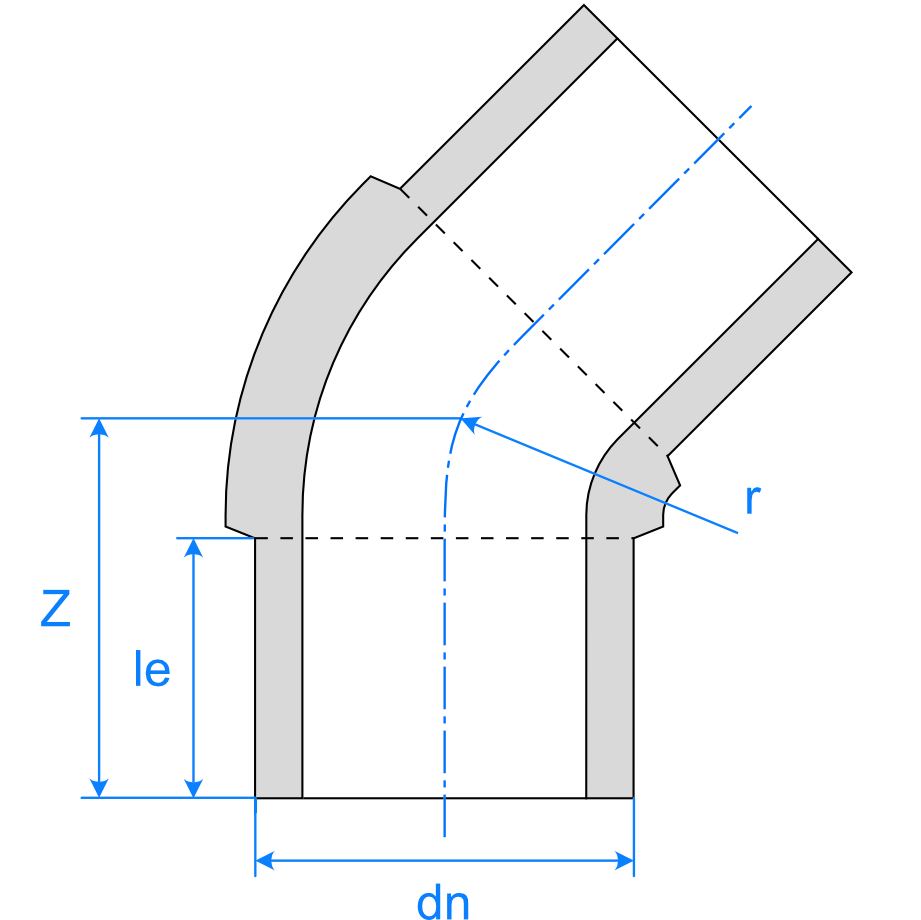

45º Moulded Elbow LS / PE100 / PN10 / SDR17
| Fittings where 'le' is marked with an * do not meet the minimum requirement for minimum tubular length in BS EN 12201-3 Table 3 when being joined with electrofusion couplers. | |||||
| Product Code | dn | le | r | z | Availability in Hong Kong |
| P5314.119.110 | 110 | 82 | 55 | 118 | 4-6 weeks |
| P5314.119.160 | 160 | 98 | 80 | 142 | 4-6 weeks |
| P5314.119.200 | 200 | 112 | 100 | 162 | 4-6 weeks |
| P5314.119.225 | 225 | 115 | 113 | 155 | 4-6 weeks |
| P5314.119.250 | 250 | 129 | 125 | 190 | 4-6 weeks |
| P5314.119.280 | 280 | 148 | 140 | 230 | 4-6 weeks |
| P5314.119.355 | 355 | 164 | 178 | 270 | 4-6 weeks |
| P5314.119.400 | 400 | *150 | 200 | 255 | 4-6 weeks |
| P5314.119.450 | 450 | *170 | 225 | 290 | 4-6 weeks |
| P5314.119.500 | 500 | *205 | 250 | 320 | 4-6 weeks |
| P5314.119.560 | 560 | *200 | 280 | 345 | 4-6 weeks |
| P5314.119.630 | 630 | *220 | 315 | 370 | 4-6 weeks |

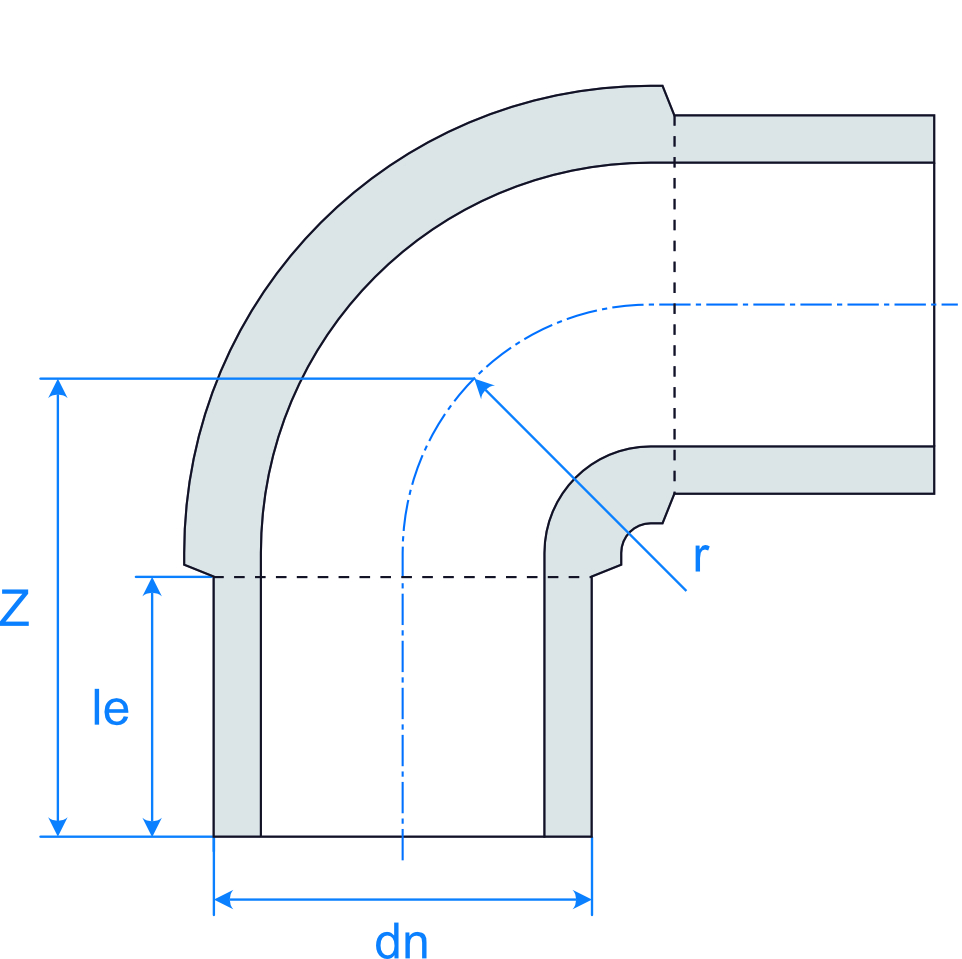

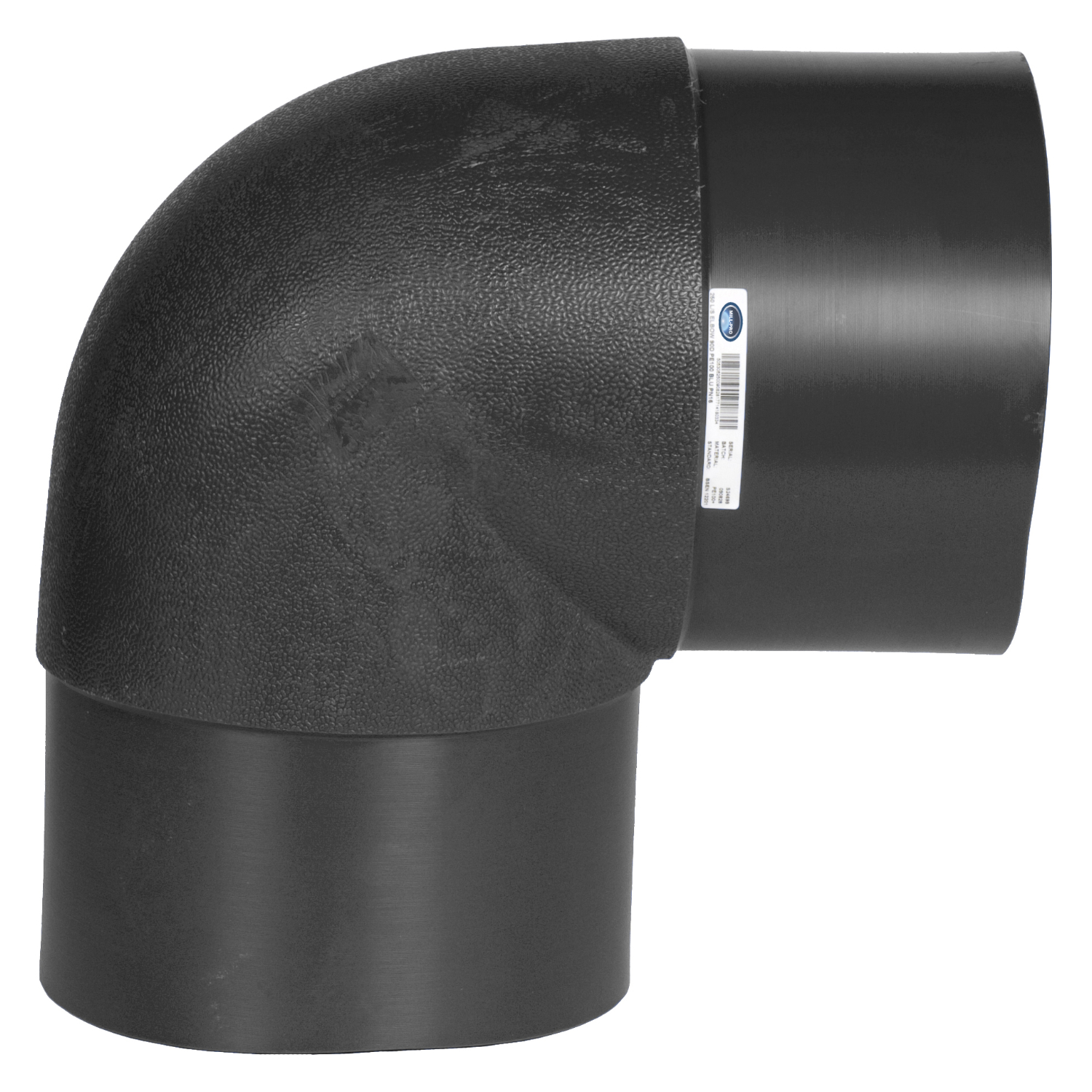

90º Moulded Elbow LS / PE100 / PN10 / SDR17
| Fittings where 'le' is marked with an * do not meet the minimum requirement for minimum tubular length in BS EN 12201-3 Table 3 when being joined with electrofusion couplers. | |||||
| Product Code | dn | le | r | z | Availability in Hong Kong |
| P5314.115.110 | 110 | 82 | 55 | 143 | 4-6 weeks |
| P5314.115.160 | 160 | *98 | 80 | 177 | 4-6 weeks |
| P5314.115.200 | 200 | 125 | 100 | 239 | 4-6 weeks |
| P5314.115.225 | 225 | 140 | 113 | 255 | 4-6 weeks |
| P5314.115.250 | 250 | 130 | 125 | 265 | 4-6 weeks |
| P5314.115.280 | 280 | *135 | 140 | 282 | 4-6 weeks |
| P5314.115.355 | 355 | *155 | 178 | 365 | 4-6 weeks |
| P5314.115.450 | 450 | *180 | 225 | 410 | 4-6 weeks |
| P5314.115.500 | 500 | *210 | 250 | 460 | 4-6 weeks |
| P5314.115.560 | 560 | *210 | 280 | 505 | 4-6 weeks |
| P5314.115.630 | 630 | *210 | 315 | 544 | 4-6 weeks |
