Drop Tees

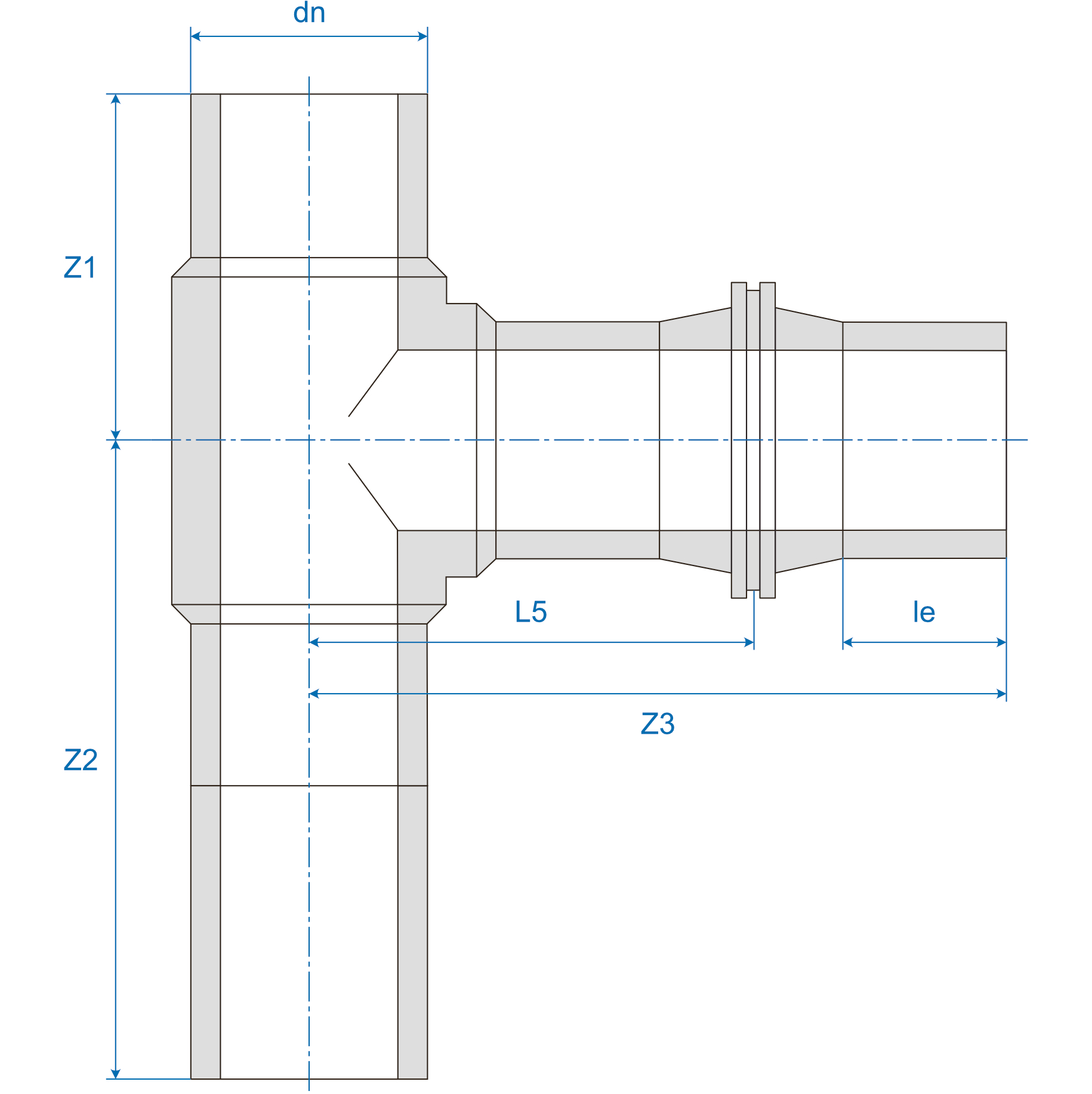

Drop Tee / Spigot / PE100 / SDR17

Factory tee fabrication with an integrated puddle flange for casting directly into a chamber, with connection by electrofusion to another PE pipe. Manufactured from PE100 components and butt welded in accordance with BS ISO 21307.

Dimensions Z1, Z2, & L5 can be equal to, or greater than the value given above to allow customisation
Product Code	dn1	dn2	Z1 / Z2	L5	Z3	le	Availability in Hong Kong
P531E.31.160	160	160	≥198	≥257	L5 + 210	150	8-12 Weeks
P531E.31.200	200	200	≥224	≥285	L5 + 210	150	8-12 Weeks
P531E.31.225	225	225	≥251	≥307	L5 + 210	150	8-12 Weeks
P531E.31.250	250	250	≥268	≥345	L5 + 310	250	8-12 Weeks
P531E.31.280	280	280	≥301	≥365	L5 + 310	250	8-12 Weeks
P531E.31.355	355	355	≥361	≥418	L5 + 367	300	8-12 Weeks
P531E.31.400	400	400	≥364	≥435	L5 + 375	300	8-12 Weeks
P531E.31.450	450	450	≥445	≥525	L5 + 385	300	8-12 Weeks
P531E.31.500	500	500	≥518	≥593	L5 + 392	300	8-12 Weeks
P531E.31.560	560	560	≥543	≥650	L5 + 405	300	8-12 Weeks
P531E.31.630	630	630	≥588	≥718	L5 + 417	300	8-12 Weeks

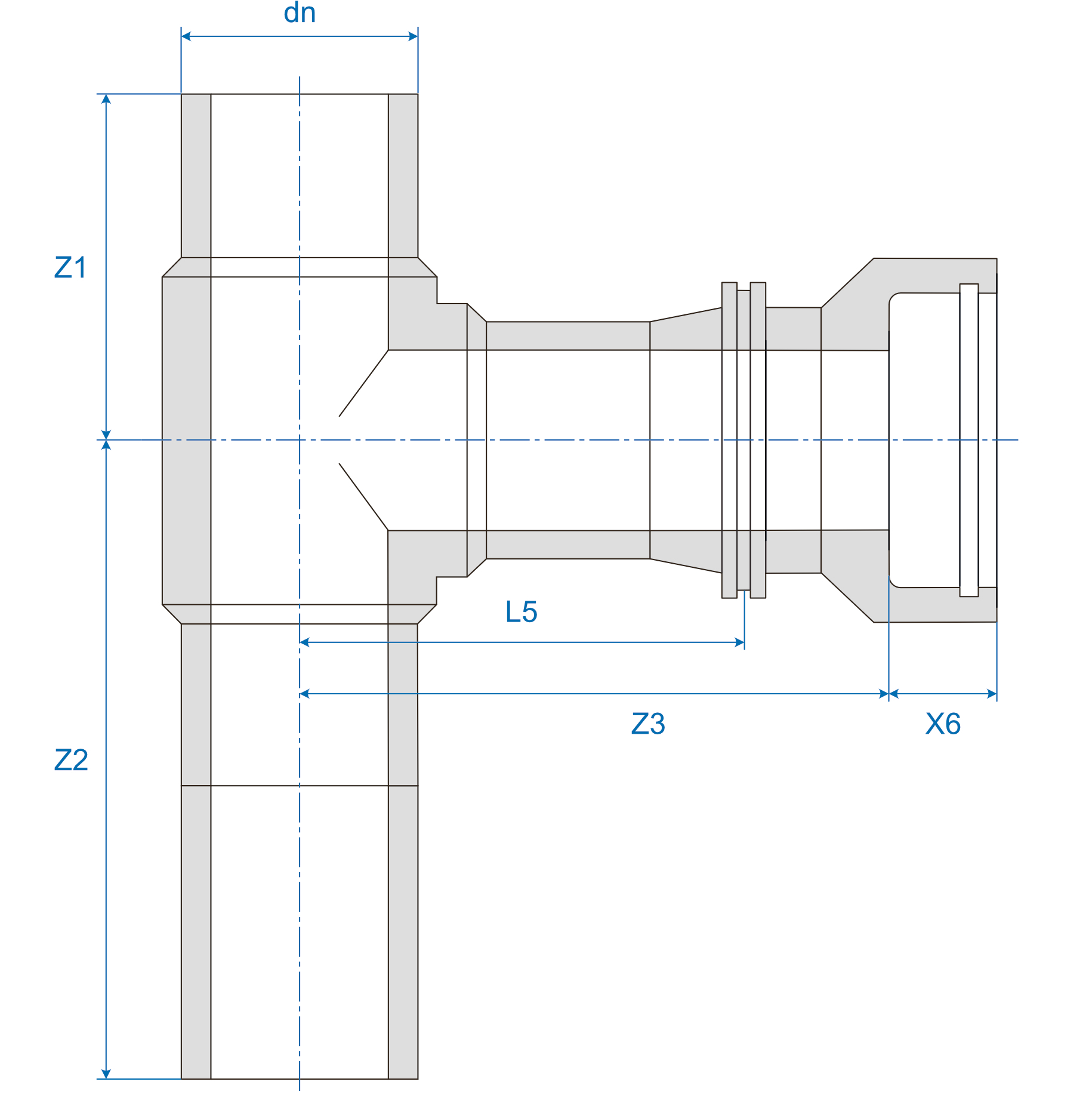

Drop Tee / Socket / PE100 / SDR17

Factory tee fabrication with an integrated puddle flange for casting directly into a chamber, with connection by rubber ring joint socket to a different pipe material. Manufactured from PE100 components and butt welded in accordance with BS ISO 21307. EPDM seals and socket design according to BS EN 12666-1.

Available for connection to various materials as indicated:

CI (Cast Iron), DI (Ductile Iron), VC (Virtuous Clay), PVC (Plastic pipe)

Dimensions Z1, Z2, & L5 can be equal to, or greater than the value given above to allow customisation
Product Code	dn1	dn2	Z1 / Z2	L5	Z3	X6	Availability in Hong Kong
P531E.35.160160	160	150 CI EN877	≥198	≥257	L5 + 122	60	8-12 Weeks
P531E.33.160170	160	150 DI EN598	≥198	≥257	L5 + 147	60	8-12 Weeks
P531E.36.160186	160	150 VC	≥198	≥257	L5 + 109	60	8-12 Weeks
P531E.38.160160	160	150 PVC	≥198	≥257	L5 + 99	60	8-12 Weeks
P531E.32.160170	160	150 DI EN598	≥198	≥257	L5 + 104	60	8-12 Weeks
P531E.38.225200	225	200 PVC	≥251	≥307	L5 + 105	70	8-12 Weeks
P531E.34.225210	225	200 CI EN877	≥251	≥307	L5 + 110	70	8-12 Weeks
P531E.33.225222	225	200 DI EN598	≥251	≥307	L5 + 145	70	8-12 Weeks
P531E.36.225239	225	200 VC	≥251	≥307	L5 + 128	70	8-12 Weeks
P531E.32.250222	250	200 DI EN598	≥268	≥345	L5 + 96	80	8-12 Weeks
P531E.34.250247	250	225 CI	≥268	≥345	L5 + 109	80	8-12 Weeks
P531E.36.250268	250	225 VC	≥268	≥345	L5 + 122	80	8-12 Weeks
P531E.38.280250	280	250 PVC	≥301	≥365	L5 + 107	80	8-12 Weeks
P531E.34.280266	280	250 CI	≥301	≥365	L5 + 115	80	8-12 Weeks
P531E.33.280274	280	250 DI EN598	≥301	≥365	L5 + 159	80	8-12 Weeks
P531E.35.280274	280	250 CI EN877	≥301	≥365	L5 + 162	80	8-12 Weeks
P531E.36.280298	280	250 VC	≥301	≥365	L5 + 134	80	8-12 Weeks
P531E.38.355315	355	300 PVC	≥361	≥418	L5 + 144	90	8-12 Weeks
P531E.36.355352	355	300 VC	≥361	≥418	L5 + 166	90	8-12 Weeks
P531E.38.400355	400	350 PVC	≥364	≥435	L5 + 150	90	8-12 Weeks
P531E.34.400370	400	350 CI	≥364	≥435	L5 + 157	90	8-12 Weeks
P531E.32.400378	400	350 DI EN598	≥364	≥435	L5 + 161	90	8-12 Weeks
P531E.35.400403	400	375 CI	≥364	≥435	L5 + 229	90	8-12 Weeks
P531E.33.400403	400	375 DI	≥364	≥435	L5 + 209	90	8-12 Weeks
P531E.36.400445	400	375 VC	≥364	≥435	L5 + 199	90	8-12 Weeks
P531E.34.450424	450	400 CI	≥445	≥525	L5 + 168	90	8-12 Weeks
P531E.32.450429	450	400 DI EN598	≥445	≥525	L5 + 170	90	8-12 Weeks
P531E.35.450429	450	400 CI EN877	≥445	≥525	L5 + 200	90	8-12 Weeks
P531E.39.450450	450	400 PVC	≥445	≥525	L5 + 222	90	8-12 Weeks
P531E.33.450480	450	450 DI EN598	≥445	≥525	L5 + 282	90	8-12 Weeks
P531E.38.500450	500	375 PVC	≥518	≥593	L5 + 163	90	8-12 Weeks
P531E.33.500480	500	450 DI EN598	≥518	≥593	L5 + 208	90	8-12 Weeks
P531E.36.500528	500	450 VC	≥518	≥593	L5 + 206	90	8-12 Weeks
P531E.38.560500	560	450 PVC	≥543	≥650	L5 + 176	90	8-12 Weeks
P531E.32.560532	560	500 DI EN598	≥543	≥650	L5 + 212	90	8-12 Weeks
P531E.35.560532	560	500 CI EN877	≥543	≥650	L5 + 227	90	8-12 Weeks
P531E.35.630635	630	600 CI EN877	≥588	≥718	L5 + 333	90	8-12 Weeks
P531E.33.630635	630	600 DI EN598	≥588	≥718	L5 + 357	90	8-12 Weeks
