Cleaning Eye Elbows

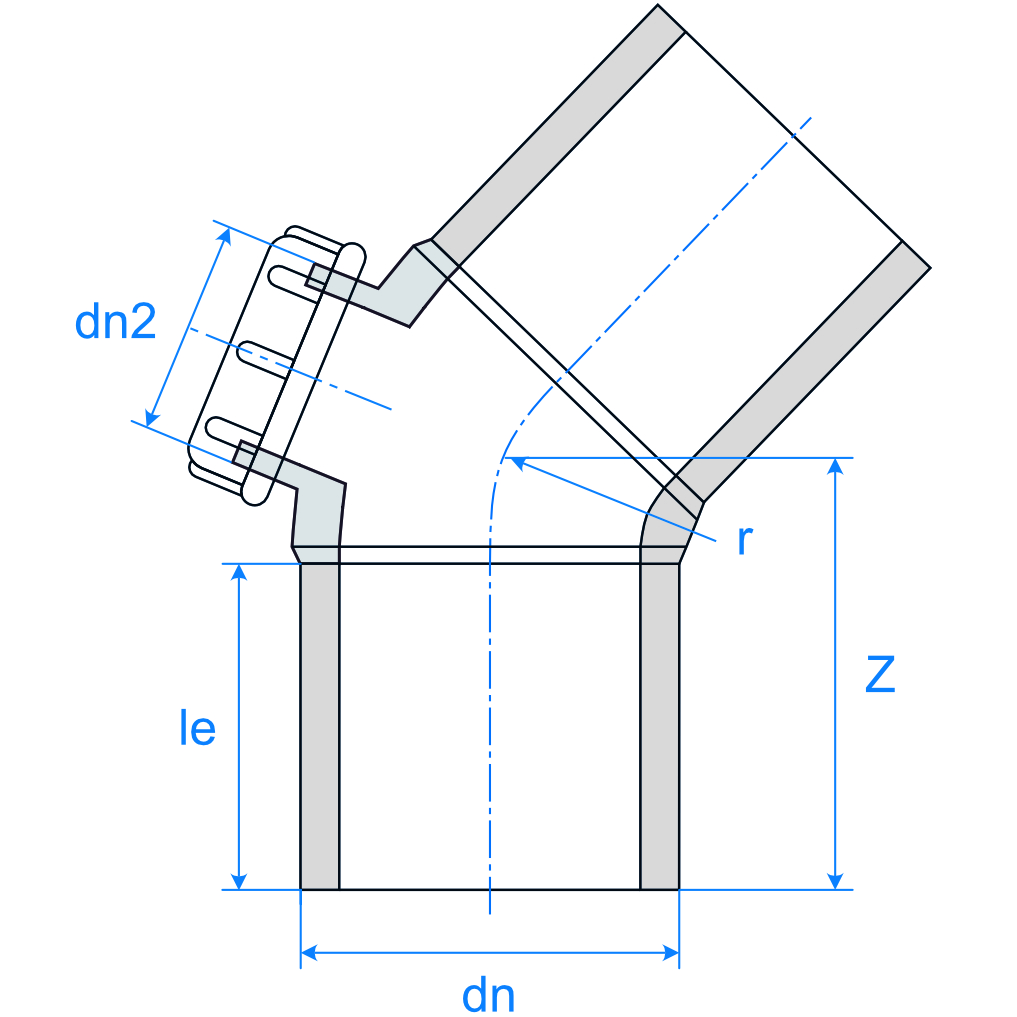

45º Moulded Cleaning Eye Elbows / LS / Black / PN10 / SDR17
PE100+ long spigot elbows with factory butt fusion welded PE inspection port with screw cap and sealing gasket
| * Spigot lengths suitable for Mill-Pro supplied PN10 EF couplers but shorter than L2 in BSEN 12201-3 table 3 | ||||||
| Product Code | dn1 | dn2 | le | r | z | Availability in Hong Kong |
| P531E.172.200110 | 200 | 110 | 112 | 88 | 147 | 8-10 weeks |
| P531E.172.225110 | 225 | 110 | 115 | 99 | 134 | 8-10 weeks |
| P531E.172.250110 | 250 | 110 | 129 | 110 | 162 | 8-10 weeks |
| P531E.172.280110 | 280 | 110 | 148 | 124 | 200 | 8-10 weeks |
| P531E.172.355110 | 355 | 110 | *160 | 157 | 227 | 8-10 weeks |
| P531E.172.355160 | 355 | 160 | *160 | 157 | 227 | 8-10 weeks |
| P531E.172.400110 | 400 | 110 | *158 | 176 | 215 | 8-10 weeks |
| P531E.172.400160 | 400 | 160 | *158 | 176 | 215 | 8-10 weeks |
| P531E.172.400200 | 400 | 200 | *158 | 176 | 215 | 8-10 weeks |
| P531E.172.450110 | 450 | 110 | *170 | 199 | 249 | 8-10 weeks |
| P531E.172.450160 | 450 | 160 | *170 | 199 | 249 | 8-10 weeks |
| P531E.172.450200 | 450 | 200 | *170 | 199 | 249 | 8-10 weeks |
| P531E.172.500110 | 500 | 110 | *205 | 221 | 272 | 8-10 weeks |
| P531E.172.500160 | 500 | 160 | *205 | 221 | 272 | 8-10 weeks |
| P531E.172.500200 | 500 | 200 | *205 | 221 | 272 | 8-10 weeks |
| P531E.172.560110 | 560 | 110 | *200 | 247 | 279 | 8-10 weeks |
| P531E.172.560160 | 560 | 160 | *200 | 247 | 279 | 8-10 weeks |
| P531E.172.560200 | 560 | 200 | *200 | 247 | 279 | 8-10 weeks |
| P531E.172.630110 | 630 | 110 | *220 | 278 | 317 | 8-10 weeks |
| P531E.172.630160 | 630 | 160 | *220 | 278 | 317 | 8-10 weeks |
| P531E.172.630200 | 630 | 200 | *220 | 278 | 317 | 8-10 weeks |

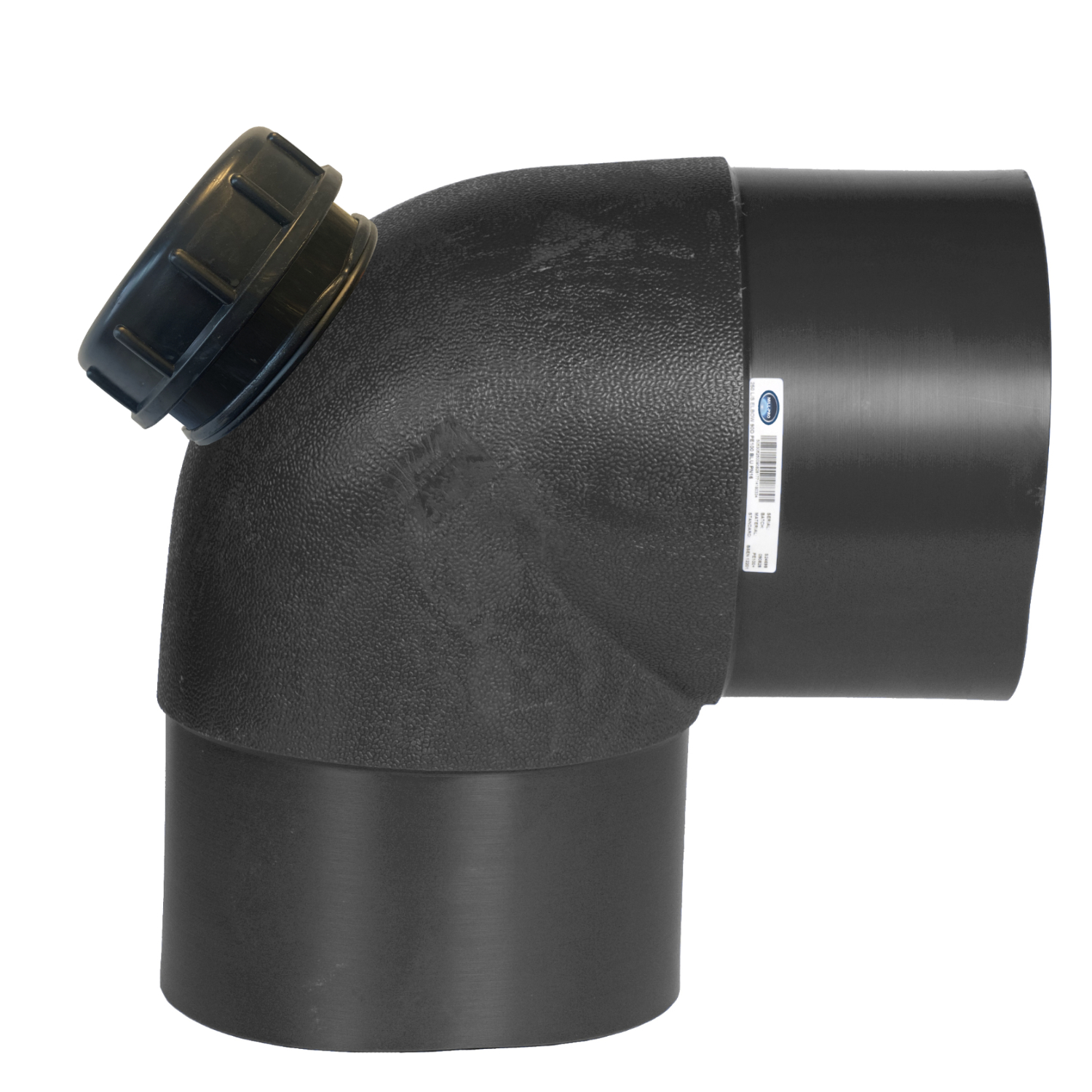

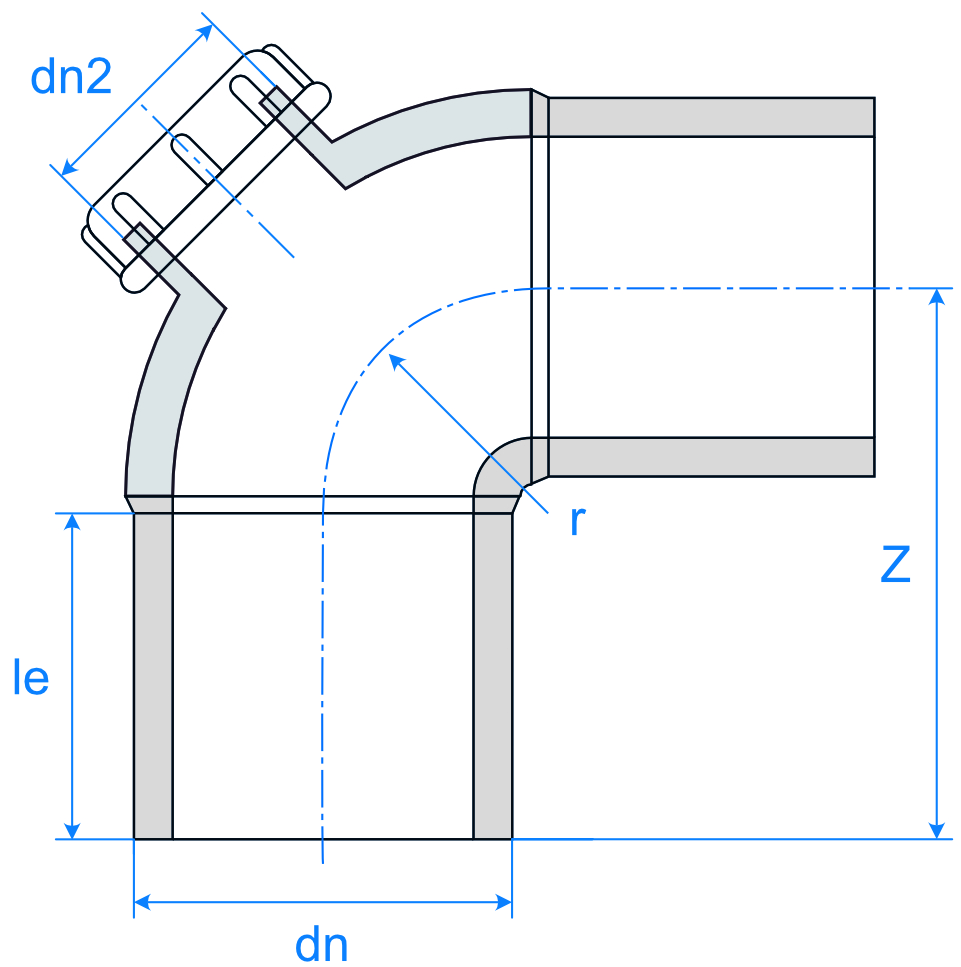

90º Moulded Cleaning Eye Elbows / LS / Black / PN10 / SDR17
90º PE100+ long spigot elbows with factory butt fusion welded PE inspection port with screw cap and sealing gasket
| * Spigot lengths suitable for Mill-Pro supplied PN10 EF couplers but shorter than L2 in BSEN 12201-3 table 3 | ||||||
| Product Code | dn | dn2 | le | r | z | Availability in Hong Kong |
| P531E.173.200110 | 200 | 110 | 125 | 88 | 239 | 8-10 weeks |
| P531E.173.225110 | 225 | 110 | 135 | 99 | 255 | 8-10 weeks |
| P531E.173.250110 | 250 | 110 | 130 | 110 | 265 | 8-10 weeks |
| P531E.173.280110 | 280 | 110 | *135 | 124 | 282 | 8-10 weeks |
| P531E.173.355110 | 355 | 110 | *155 | 157 | 365 | 8-10 weeks |
| P531E.173.355160 | 355 | 160 | *155 | 157 | 365 | 8-10 weeks |
| P531E.173.450110 | 400 | 110 | *145 | 176 | 378 | 8-10 weeks |
| P531E.173.450160 | 400 | 160 | *145 | 176 | 378 | 8-10 weeks |
| P531E.173.450200 | 400 | 200 | *145 | 176 | 378 | 8-10 weeks |
| P531E.173.500110 | 500 | 110 | *210 | 221 | 460 | 8-10 weeks |
| P531E.173.500160 | 500 | 160 | *210 | 221 | 460 | 8-10 weeks |
| P531E.173.500200 | 500 | 200 | *210 | 221 | 460 | 8-10 weeks |
| P531E.173.560110 | 560 | 110 | *210 | 247 | 505 | 8-10 weeks |
| P531E.173.560160 | 560 | 160 | *210 | 247 | 505 | 8-10 weeks |
| P531E.173.560200 | 560 | 200 | *210 | 247 | 505 | 8-10 weeks |
| P531E.173.630110 | 630 | 110 | *210 | 278 | 544 | 8-10 weeks |
| P531E.173.630160 | 630 | 160 | *210 | 278 | 544 | 8-10 weeks |
| P531E.173.630200 | 630 | 200 | *210 | 278 | 544 | 8-10 weeks |
