M100 / Striped Pipes
M100E - PE100 RC Black Pipe
Black solid wall PE pipe manufactured to BS EN 12201-2, from a PE100 RC (Resistant to Crack) compound in sizes from DN100 to DN1800, in stiffness ratings from SN3 to SN381.

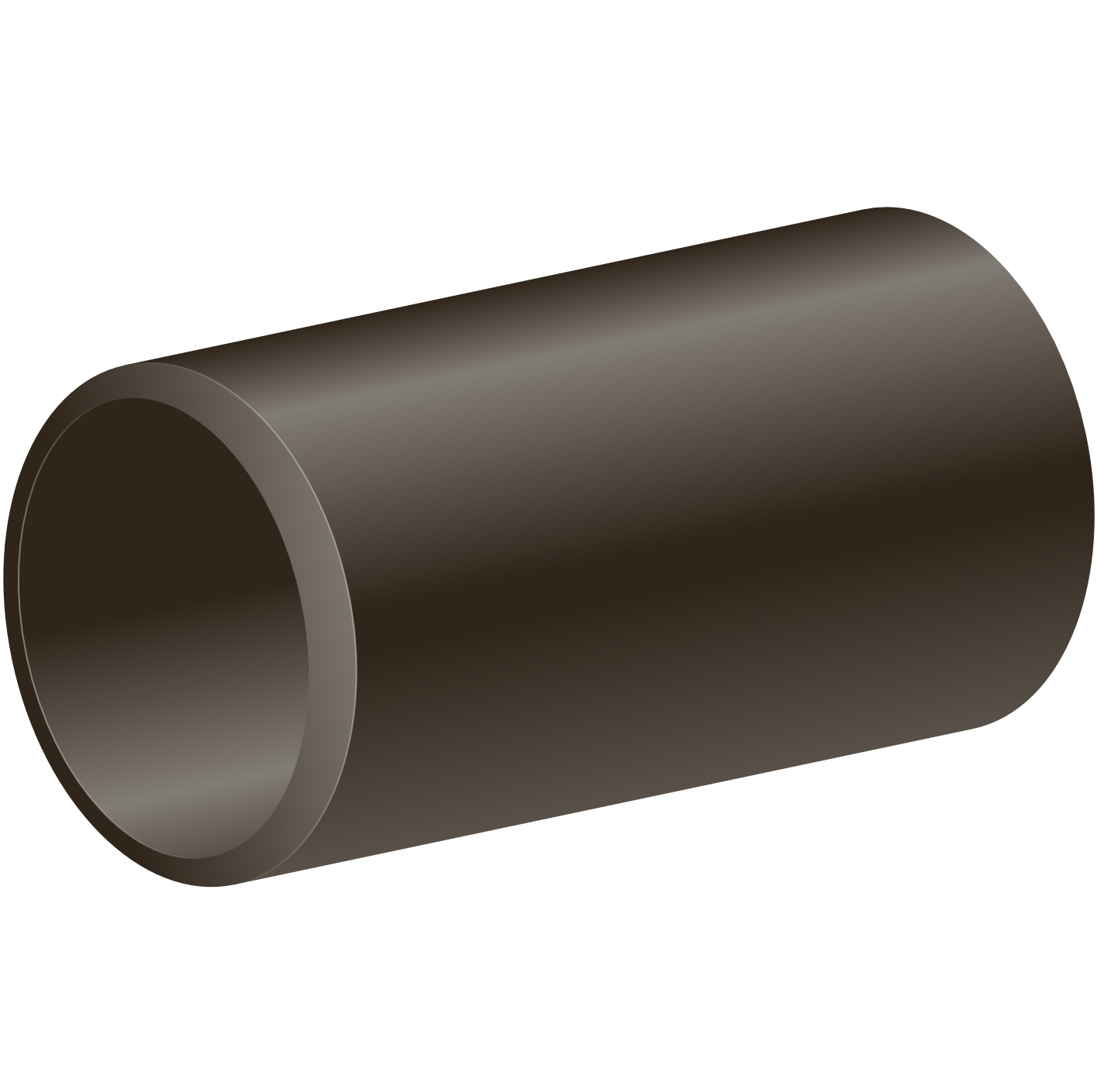

M100 - PE100+ Black Pipe
Black solid wall PE pipe manufactured to BS EN 12201-2, from a PE100+ (Non RC compound) in sizes from DN100 to DN1800, in stiffness ratings from SN3 to SN381.

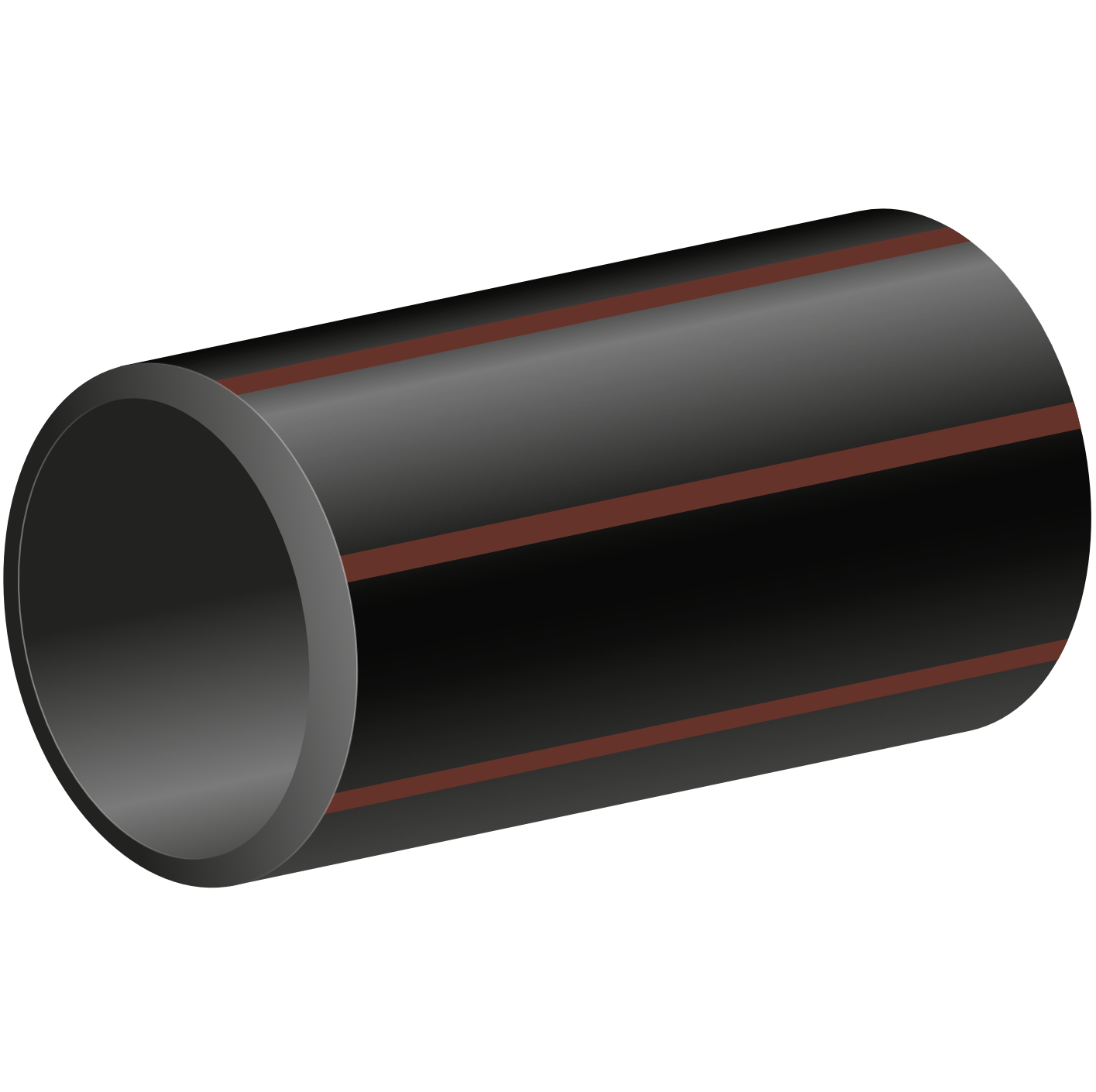

M100SE - PE100 RC Striped Pipe
Black solid wall PE pipe manufactured to BS EN 12201-2, from a PE100 RC (Resistant to Crack) compound in sizes from DN100 to DN1800, in stiffness ratings from SN3 to SN381, with external striping to indicate the application.
M100S - PE100+ Striped Pipe
Black solid wall PE pipe manufactured to BS EN 12201-2, from a PE100+ (Non RC compound) in sizes from DN100 to DN1800, in stiffness ratings from SN3 to SN381, with external striping to indicate the application.
M100E & M100 PE100 Black / Striped Pipes in various sizes and pressure ratings
BS EN 12201-2 standard dimension solid wall Polyethylene Pipes.
For custom manufactured special size PE pipes for rehabilitation contact us for more information.
Stripes are available on all size pipes, typically in sizes below DN700 M90ES CCTV pipes would be used.
| These Tables are Standard Dimension for Pipes According To EN / ISO Standards. | |||||||||||||||||||
| Stiffness Rating PE100 | SN24 | SN50 | SN100 | SN195 | SN381 | ||||||||||||||
| Pressure Rating PE100 | PN10 | PN12.5 | PN16 | PN20 | PN25 | ||||||||||||||
| Nominal Diameter | Mean Outside Diameter dem | Maximum Out-of-roundness | SDR 17 | SDR 13.6 | SDR 11 | SDR 9 | SDR 7.4 | ||||||||||||
| em | di | Kg/m | em | di | Kg/m | em | di | Kg/m | em | di | Kg/m | em | di | Kg/m | |||||
| DN | dn | Min. | Max. | (ovality) | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean |
| 100 | 110 | 110 | 110.7 | 2.2 | 7.0 | 96.4 | 2.2 | 8.6 | 93.2 | 2.6 | 10.6 | 89.3 | 3.2 | 13.0 | 84.4 | 3.8 | 16.0 | 78.5 | 4.5 |
| - | 125 | 125 | 125.8 | 2.5 | 7.9 | 109.7 | 2.8 | 9.8 | 105.9 | 3.4 | 12.1 | 101.3 | 4.1 | 14.8 | 95.9 | 4.9 | 18.1 | 89.3 | 5.8 |
| - | 140 | 140 | 140.9 | 2.8 | 8.8 | 122.9 | 3.5 | 10.9 | 118.7 | 4.3 | 13.4 | 113.7 | 5.1 | 16.6 | 107.4 | 6.2 | 20.3 | 100.0 | 7.3 |
| 150 | 160 | 160 | 161.0 | 3.2 | 10.1 | 140.4 | 4.6 | 12.5 | 135.6 | 5.6 | 15.4 | 129.7 | 6.7 | 18.9 | 122.8 | 8.0 | 23.1 | 114.4 | 9.5 |
| - | 180 | 180 | 181.1 | 3.6 | 11.3 | 158.0 | 5.8 | 14.1 | 152.5 | 7.1 | 17.3 | 146.0 | 8.5 | 21.2 | 138.2 | 10.2 | 25.9 | 128.8 | 12.1 |
| - | 200 | 200 | 201.2 | 4.0 | 12.6 | 175.5 | 7.1 | 15.5 | 169.6 | 8.6 | 19.2 | 162.2 | 10.5 | 23.6 | 153.4 | 12.6 | 28.8 | 143.1 | 14.9 |
| 200 | 225 | 225 | 226.4 | 4.5 | 14.2 | 197.4 | 9.0 | 17.5 | 190.7 | 11.0 | 21.6 | 182.5 | 13.3 | 26.5 | 172.8 | 15.9 | 32.4 | 160.9 | 18.9 |
| 225 | 250 | 250 | 251.5 | 5.0 | 15.6 | 219.6 | 11.1 | 19.4 | 212.0 | 13.5 | 23.9 | 203.0 | 16.3 | 29.4 | 192.1 | 19.6 | 36.0 | 178.8 | 23.3 |
| 250 | 280 | 280 | 281.7 | 9.8 | 17.5 | 245.9 | 13.9 | 21.7 | 237.5 | 16.9 | 26.8 | 227.4 | 20.5 | 33.0 | 215.0 | 24.6 | 40.3 | 200.3 | 29.2 |
| - | 315 | 315 | 316.9 | 11.1 | 19.7 | 276.6 | 17.6 | 24.5 | 267.1 | 21.5 | 30.1 | 255.8 | 25.9 | 37.1 | 241.9 | 31.1 | 45.2 | 225.6 | 36.9 |
| 300 | 355 | 355 | 357.2 | 12.5 | 22.3 | 311.6 | 22.4 | 27.5 | 301.1 | 27.2 | 33.9 | 288.3 | 32.9 | 41.7 | 272.8 | 39.5 | 51.0 | 254.1 | 46.9 |
| 375 | 400 | 400 | 402.4 | 14.0 | 25.0 | 351.3 | 28.3 | 31.0 | 339.3 | 34.5 | 38.2 | 324.8 | 41.8 | 47.0 | 307.2 | 50.2 | 57.4 | 286.4 | 59.5 |
| 400 | 450 | 450 | 452.7 | 15.6 | 28.1 | 395.2 | 35.8 | 34.9 | 381.7 | 43.7 | 43.0 | 365.4 | 52.9 | 52.8 | 345.8 | 63.4 | 64.7 | 322.1 | 75.4 |
| 450 | 500 | 500 | 503.0 | 17.5 | 31.2 | 439.2 | 44.2 | 38.7 | 424.1 | 54.0 | 47.8 | 406.0 | 65.3 | 58.7 | 384.2 | 78.3 | - | - | - |
| 500 | 560 | 560 | 563.4 | 19.6 | 35.0 | 491.8 | 55.5 | 43.4 | 475.0 | 67.7 | 53.4 | 454.9 | 81.8 | 65.7 | 430.3 | 98.2 | - | - | - |
| 525 | 630 | 630 | 633.8 | 22.1 | 39.3 | 553.4 | 70.1 | 48.7 | 534.5 | 85.6 | 60.2 | 511.6 | 103.7 | 73.9 | 484.1 | 124.3 | - | - | - |
| 600 | 710 | 710 | 716.4 | 24.9 | 44.3 | 624.6 | 89.3 | 54.9 | 603.4 | 108.9 | 67.8 | 577.6 | 131.9 | 83.35 | 546.5 | 158.2 | - | - | - |
| 700 | 800 | 800 | 807.2 | 28.0 | 49.9 | 703.9 | 113.2 | 61.8 | 680.0 | 138.2 | 76.3 | 651 | 167.3 | 93.85 | 615.9 | 200.8 | - | - | - |
| 800 | 900 | 900 | 908.1 | 31.5 | 56.3 | 791.6 | 143.7 | 69.6 | 764.85 | 175.0 | 85.85 | 732.35 | 211.7 | - | - | - | - | - | - |
| 900 | 1000 | 1000 | 1009.0 | 35.0 | 62.4 | 879.8 | 177.1 | 76.2 | 852.1 | 213.2 | 94.8 | 814.9 | 259.9 | - | - | - | - | - | - |
| 1000 | 1200 | 1200 | 1210.8 | 42.0 | 74.2 | 1057.1 | 252.8 | 92.7 | 1020 | 310.9 | - | - | - | - | - | - | - | - | - |
| 1200 | 1400 | 1400 | 1412.6 | 49.0 | 86.6 | 1233.2 | 344.3 | 108.1 | 1190.1 | 423.0 | - | - | - | - | - | - | - | - | - |
| 1400 | 1600 | 1600 | 1614.4 | 56.0 | 98.9 | 1409.4 | 449.6 | 123.55 | 1360.1 | 552.5 | - | - | - | - | - | - | - | - | - |
| 1600 | 1800 | 1800 | 1811.3 | 63.0 | 111.2 | 1583.4 | 567.7 | - | - | - | - | - | - | - | - | - | - | - | - |
| 1800 | 2000 | 2000 | 2012.5 | 70.0 | 123.5 | 1759.3 | 700.8 | - | - | - | - | - | - | - | - | - | - | - | - |
Other pressure ratings availale:
| These Tables are Standard Dimensions for Pipes According To EN / ISO Standards.* Refer BS EN 12201-2 Annex A note:'a' | ||||||||||||||||
| Stiffness Rating PE100 | SN2 | SN3 | SN6 | SN12 | ||||||||||||
| Pressure Rating PE100 | PN4 | PN5 | PN6.4 | PN8 | ||||||||||||
| Nominal Diameter |
Mean Outside Diameter |
Maximum Out-of-roundness | SDR 41 | SDR 33 | SDR 26 | SDR 21 | ||||||||||
| em | di | Kg/m | em | di | Kg/m | em | di | Kg/m | em | di | Kg/m | |||||
| DN | dn | Min. | Max. | (ovality) | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean | Mean |
| 100 | 110 | 110 | 110.7 | 2.2 | - | - | - | - | - | - | 4.6 | 101.2 | 1.5 | 5.7 | 99.1 | 1.8 |
| - | 125 | 125 | 125.8 | 2.5 | - | - | - | - | - | - | 5.1 | 115.2 | 1.8 | 6.4 | 112.7 | 2.3 |
| - | 140 | 140 | 140.9 | 2.8 | - | - | - | - | - | - | 5.8 | 129.0 | 2.3 | 7.1 | 126.3 | 2.9 |
| 150 | 160 | 160 | 161.0 | 3.2 | - | - | - | - | - | - | 6.6 | 147.3 | 3.1 | 8.2 | 144.2 | 3.7 |
| - | 180 | 180 | 181.1 | 3.6 | - | - | - | - | - | - | 7.3 | 166.0 | 3.8 | 9.1 | 162.4 | 4.7 |
| - | 200 | 200 | 201.2 | 4.0 | - | - | - | - | - | - | 8.2 | 184.3 | 4.7 | 10.2 | 180.3 | 5.8 |
| 200 | 225 | 225 | 226.4 | 4.5 | - | - | - | - | - | - | 9.1 | 207.5 | 5.9 | 11.4 | 202.9 | 7.4 |
| 225 | 250 | 250 | 251.5 | 5.0 | - | - | - | - | - | - | 10.2 | 230.5 | 7.4 | 12.6 | 225.7 | 9.0 |
| 250 | 280 | 280 | 281.7 | 9.8 | - | - | - | - | - | - | 11.3 | 258.3 | 9.2 | 14.2 | 252.6 | 11.4 |
| - | 315 | 315 | 316.9 | 11.1 | 8.2 | 299.7 | 7.6 | 10.3 | 295.5 | 9.4 | 12.8 | 290.4 | 11.7 | 15.8 | 284.4 | 14.3 |
| 300 | 355 | 355 | 357.2 | 12.5 | 9.2 | 337.7 | 9.6 | 11.5 | 333.1 | 11.9 | 14.4 | 327.4 | 14.8 | 17.8 | 320.5 | 18.1 |
| 375 | 400 | 400 | 402.4 | 14.0 | 10.4 | 380.5 | 12.2 | 13.0 | 375.2 | 15.2 | 16.2 | 368.9 | 18.7 | 20.2 | 360.9 | 23.1 |
| 400 | 450 | 450 | 452.7 | 15.6 | 11.6 | 428.2 | 15.4 | 14.6 | 422.3 | 19.2 | 18.2 | 415.1 | 23.7 | 22.7 | 406.1 | 29.3 |
| 450 | 500 | 500 | 503.0 | 17.5 | 13.0 | 475.5 | 19.1 | 16.2 | 469.2 | 23.6 | 20.2 | 461.2 | 29.2 | 25.2 | 451.2 | 36.1 |
| 500 | 560 | 560 | 563.4 | 19.6 | 14.5 | 532.8 | 23.8 | 18.2 | 525.4 | 29.7 | 22.6 | 516.6 | 36.6 | 28.1 | 505.5 | 45.2 |
| 525 | 630 | 630 | 633.8 | 22.1 | 16.3 | 599.4 | 30.2 | 20.4 | 591.2 | 37.5 | 25.4 | 581.1 | 46.4 | 31.6 | 568.8 | 57.1 |
| 600 | 710 | 710 | 716.4 | 24.9 | 18.4 | 676.5 | 38.4 | 23.0 | 667.3 | 47.7 | 28.7 | 655.9 | 59.1 | 35.7 | 641.9 | 72.8 |
| 700 | 800 | 800 | 807.2 | 28.0 | 20.7 | 762.3 | 48.7 | 25.8 | 752.0 | 60.5 | 32.2 | 739.2 | 74.9 | 40.1 | 723.4 | 92.3 |
| 800 | 900 | 900 | 908.1 | 31.5 | 23.2 | 857.8 | 61.5 | 29.1 | 846.0 | 76.6 | 36.2 | 831.7 | 94.7 | 45.1 | 813.9 | 116.8 |
| 900 | 1000 | 1000 | 1009.0 | 35.0 | 25.8 | 952.9 | 76.1 | 32.2 | 940.1 | 94.4 | 40.2 | 924.1 | 116.8 | 50.2 | 904.2 | 144.3 |
| 1000 | 1200 | 1200 | 1210.8 | 42.0 | 31.0 | 1143.5 | 109.6 | 38.6 | 1128.2 | 135.7 | 48.3 | 1108.9 | 168.3 | 60.2 | 1085.1 | 207.6 |
| 1200 | 1400 | 1400 | 1412.6 | 49.0 | 36.2 | 1333.9 | 149.5 | 45.1 | 1316.1 | 185.0 | 56.0 | 1294.4 | 227.7 | 70.1 | 1266.2 | 282.1 |
| 1400 | 1600 | 1600 | 1614.4 | 56.0 | 41.4 | 1524.5 | 195.2 | 51.5 | 1504.2 | 241.5 | 64.5 | 1478.3 | 299.7 | 80.1 | 1447.1 | 368.5 |
| 1600 | 1800 | 1800 | 1811.3 | 63.0 | 46.1 | 1713.5 | 244.5 | 57.4 | 1691.0 | 302.2 | 72.8 | 1660.2 | 380.0 | 89.5 | 1626.7 | 462.9 |
| 1800 | 2000 | 2000 | 2012.5 | 70.0 | 51.3 | 1903.8 | 302.0 | 63.7 | 1879.0 | 372.7 | 80.9 | 1844.6 | 469.2 | 100.1 | 1806.2 | 574.8 |
Mill-Pro also specialises in providing custom-manufactured sizes and pressure ratings for specific applications, including: rehabilitation and slip lining, subject to sufficient order quantities. Contact Us for further information.
